RIGOL Chapter 1 Quick Start
1-4 MSO1000Z/DS1000Z User’s Guide
To Prepare the Oscilloscope for Use

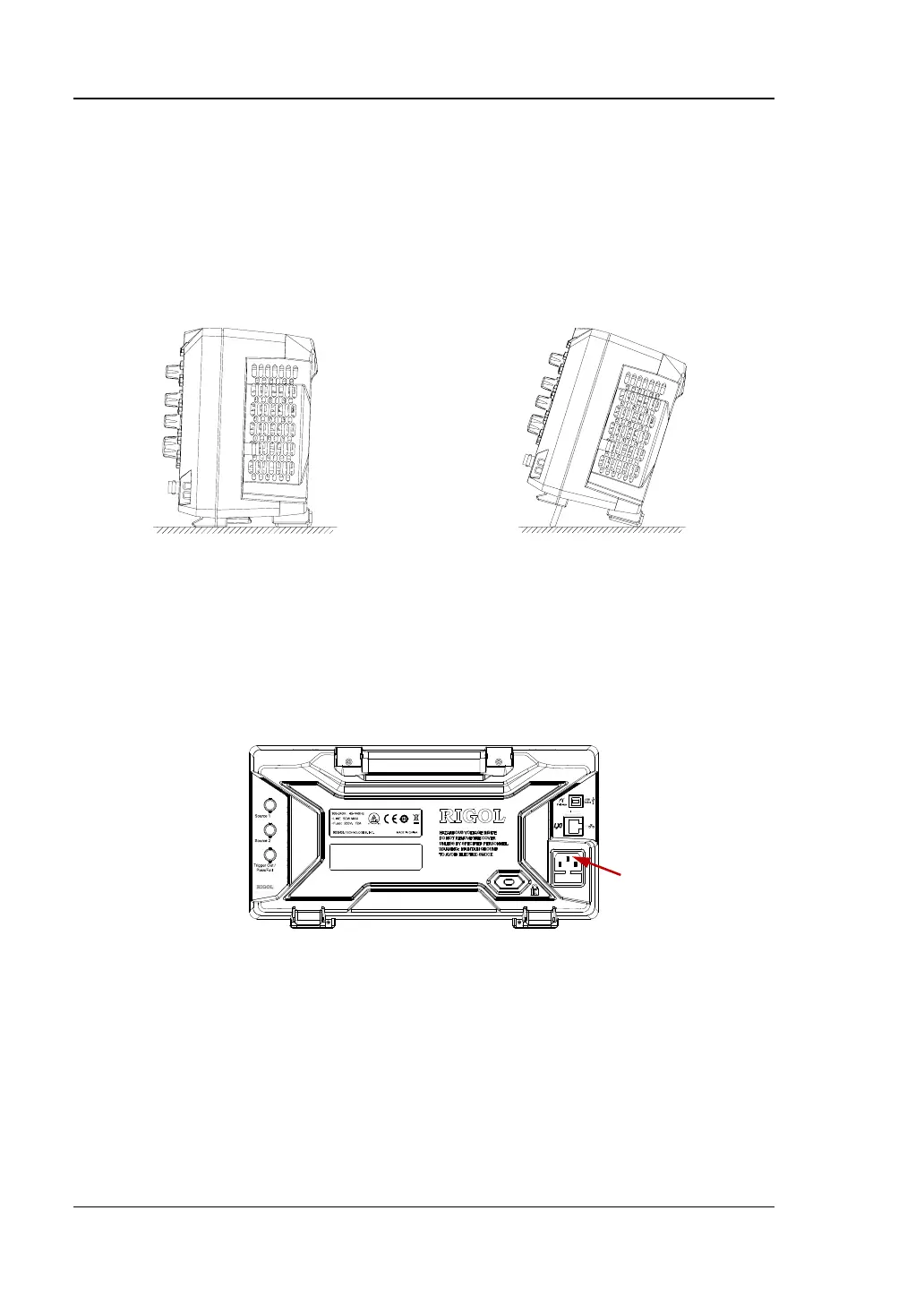

To Adjust the Supporting Legs
Adjust the supporting legs properly to use them as stands to tilt the oscilloscope
upwards for stable placement of the oscilloscope as well as better operation and
observation.
Figure 1-3 To Adjust the Supporting Legs
To Connect to Power Supply
The power requirements of the oscilloscope are 100-240 V, 45-440 Hz. Please use
the power cord supplied with the accessories to connect the oscilloscope to the AC
power source as shown in the figure below.
Figure 1-4 To Connect to Power Sypply
To Next Page
