220 Rockwell Automation Publication 2080-UM002N-EN-E - November 2022
Chapter 10 Use the High-Speed Counter and Programmable Limit Switch
Assume that HSCAPP.OutputMask = 31 (HSC mechanism controls Embedded Output 0...4 only),
and HSCAPP.HSCMode = 0.
PLS Operation for This Example
When the ladder logic first runs, HSCSTS.Accumulator = 1, therefore all the outputs are turned
off. The value of HSCSTS.HP = 250
When HSCSTS.Accumulator = 250, the HSC_PLS[1].HscHPOutput is sent through the
HSCAPP.OutputMask and energizes the outputs 0 and 1.
This will repeat as the HSCSTS.Accumulator reaches 500, 750, and 1000. The controller
energizes outputs 0...2, 0...3, and 0...4 respectively. Once completed, the cycle resets and
repeats from HSCSTS.HP = 250.
HSC Interrupts An interrupt is an event that causes the controller to suspend the task it is currently
performing, perform a different task, and then return to the suspended task at the point where
it suspended. Micro800 supports up to six HSC interrupts.
An HSC interrupt is a mechanism that Micro830, Micro850, and Micro870 controllers provide to
execute selected user logic at a pre-configured event.
HSC0 is used in this document to define how HSC interrupts work.
HSC Interrupt Configuration

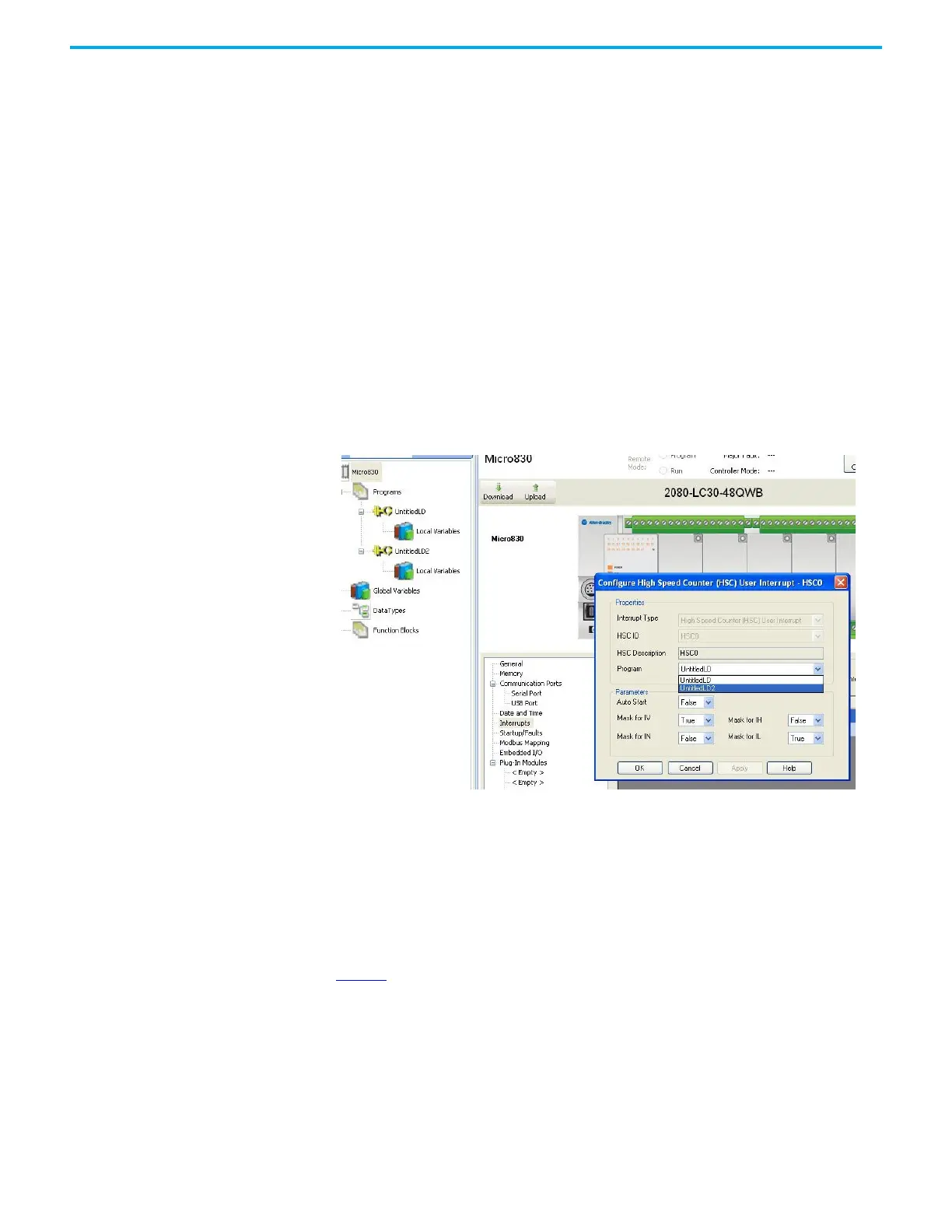

In the User Interrupt configuration window, select HSC, and HSC ID, which is the interrupt
triggering the User Interrupt.
Figure 21
shows the selectable fields in the Interrupt configuration window.
