Rockwell Automation Publication 2080-UM002N-EN-E - November 2022 61
Chapter 5 Communication Connections
Configure CIP Serial Driver

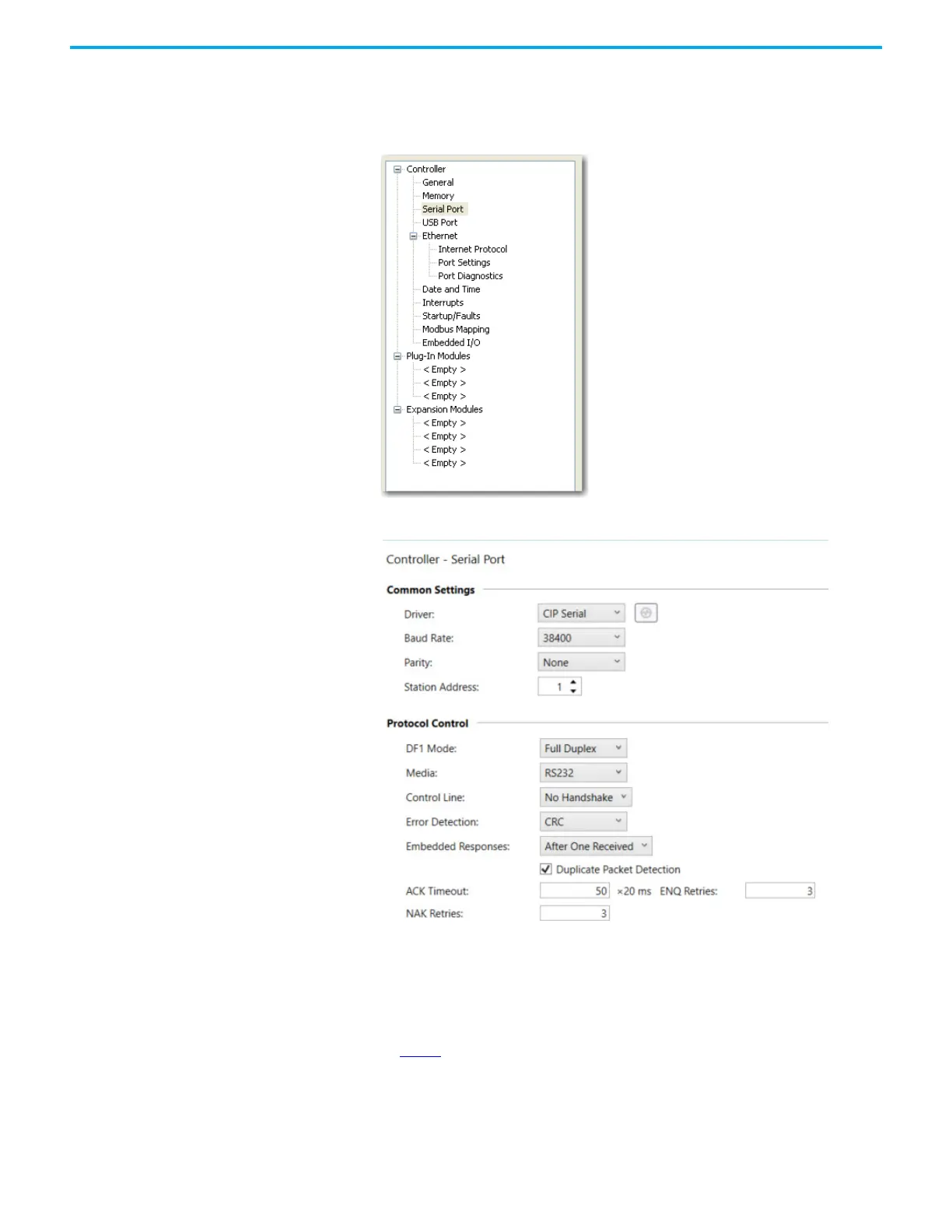

1. Open your Connected Components Workbench project. On the device configuration tree,
go to the Controller properties. Click Serial Port.
2. Select CIP Serial from the Driver field.
3. Specify a baud rate. Select a communication rate that all devices in your system
support. Configure all devices in the system for the same communication rate. Default
baud rate is set at 38,400 bps.
4. In most cases, parity and station address should be left at default settings.
5. Click Advanced Settings and set Advanced parameters.
See Table 5
for a description of the CIP Serial parameters.
