316 Rockwell Automation Publication 2080-UM002N-EN-E - November 2022

Appendix D Troubleshooting

Ethernet Diagnostics In Connected Components Workbench software, when the project in online, you can view the

status of the embedded Ethernet ports on the controller.

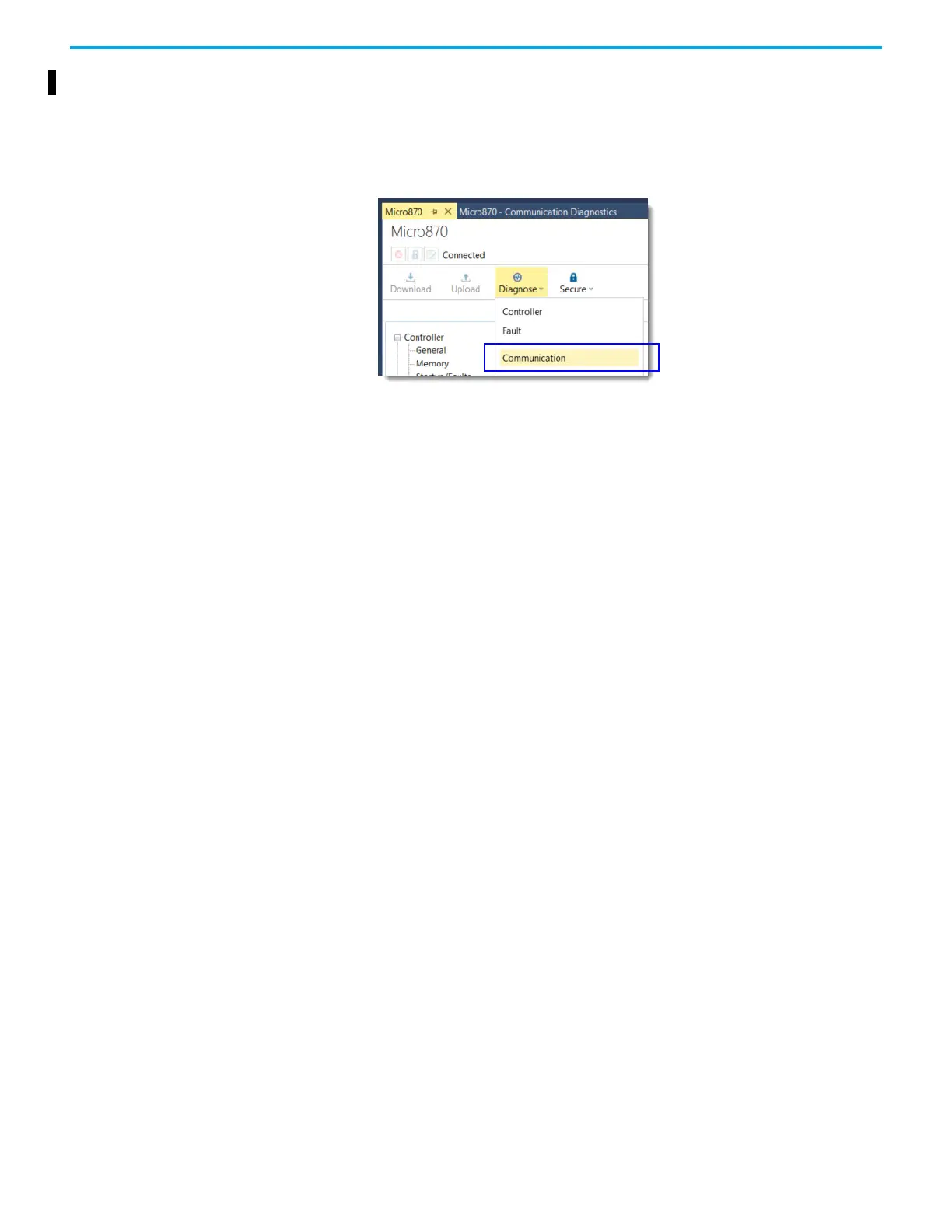

To see the Communication Diagnostic window, do the following.

1. Access the controller configuration.

2. Click Diagnose and select Communication.
