Rockwell Automation Publication 2080-UM002N-EN-E - November 2022 39
Chapter 3 Install Your Controller
DIN Rail Mounting
The module can be mounted using the following DIN rails: 35 x 7.5 x 1 mm (EN 50 022 - 35 x 7.5).
Before mounting the module on a DIN rail, use a flat-blade screwdriver in the DIN rail latch and
pry it downwards until it is in the unlatched position.
1. Hook the top of the DIN rail mounting area of the controller onto the DIN rail, and then
press the bottom until the controller snaps onto the DIN rail.
2. Push the DIN rail latch back into the latched position.
Use DIN rail end anchors (Allen-Bradley part number 1492-EAJ35 or 1492-EAHJ35) for
vibration or shock environments.
To remove your controller from the DIN rail, pry the DIN rail latch downwards until it is in the
unlatched position.
Panel Mounting
The preferred mounting method is to use four M4 (#8) screws per module. Hole spacing
tolerance: ±0.4 mm (0.016 in.).
Follow these steps to install your controller using mounting screws.
1. Place the controller against the panel where you are mounting it. Make sure the
controller is spaced properly.
2. Mark drilling holes through the mounting screw holes and mounting feet then remove
the controller.
3. Drill the holes at the markings, then replace the controller and mount it.
Leave the protective debris strip in place until you are finished wiring the controller and
any other devices.

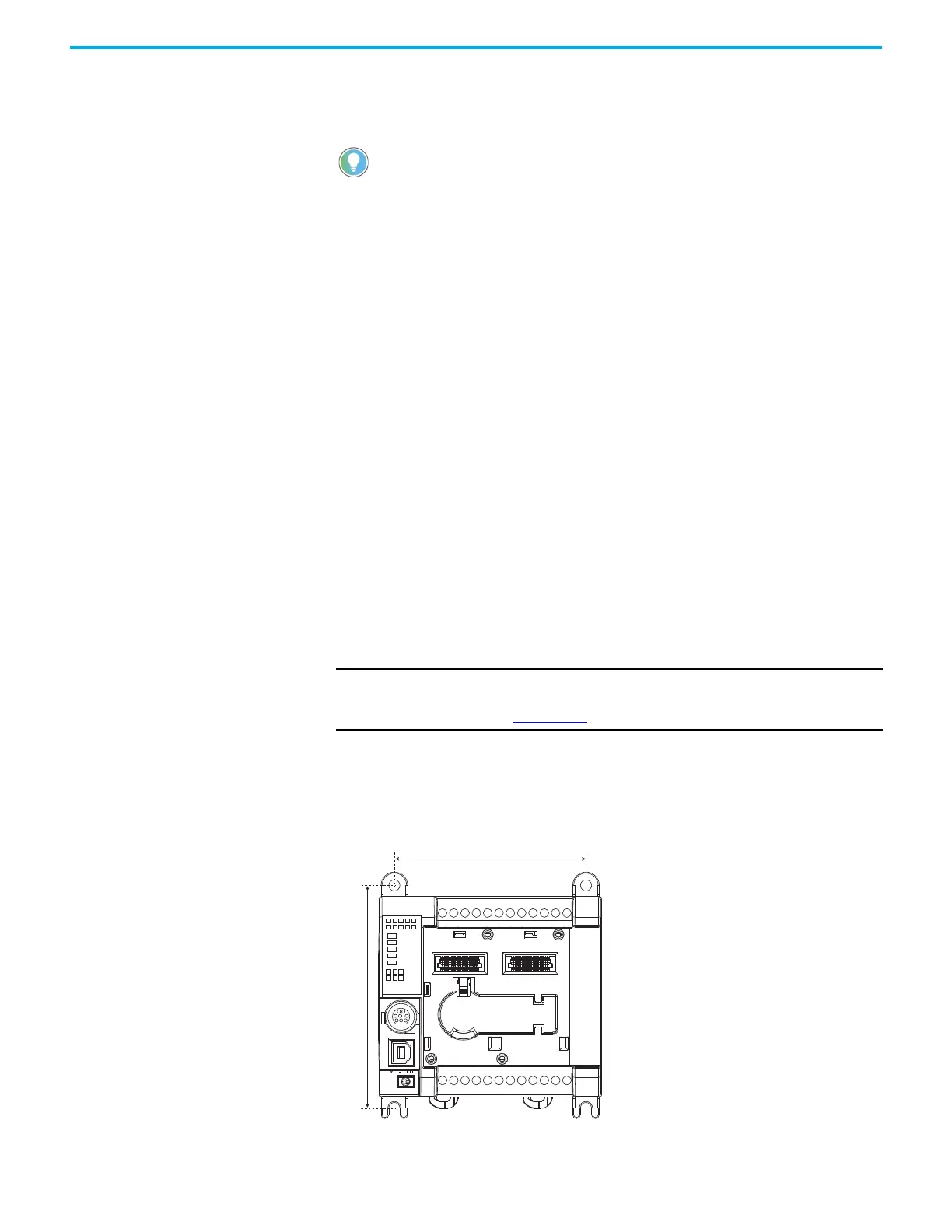

Panel Mounting Dimensions
Micro830 10-Point and 16-Point Controllers
2080-LC30-10QWB, 2080-LC30-10QVB, 2080-LC30-16AWB, 2080-LC30-16QWB, 2080-LC30-16QVB
For environments with greater vibration and shock concerns, use the panel
mounting method, instead of DIN rail mounting.
IMPORTANT For instructions on how to install your Micro800 system with expansion
I/O, see Micro800 Expansion I/O Modules User Manual,
publication 2080-UM003
.
86 mm (3.39 in.)
100 mm (3.94 in.)
