Chapter 6 Micro870 Controller Distributed Network Protocol
DNP3 Slave Application Layer Configuration

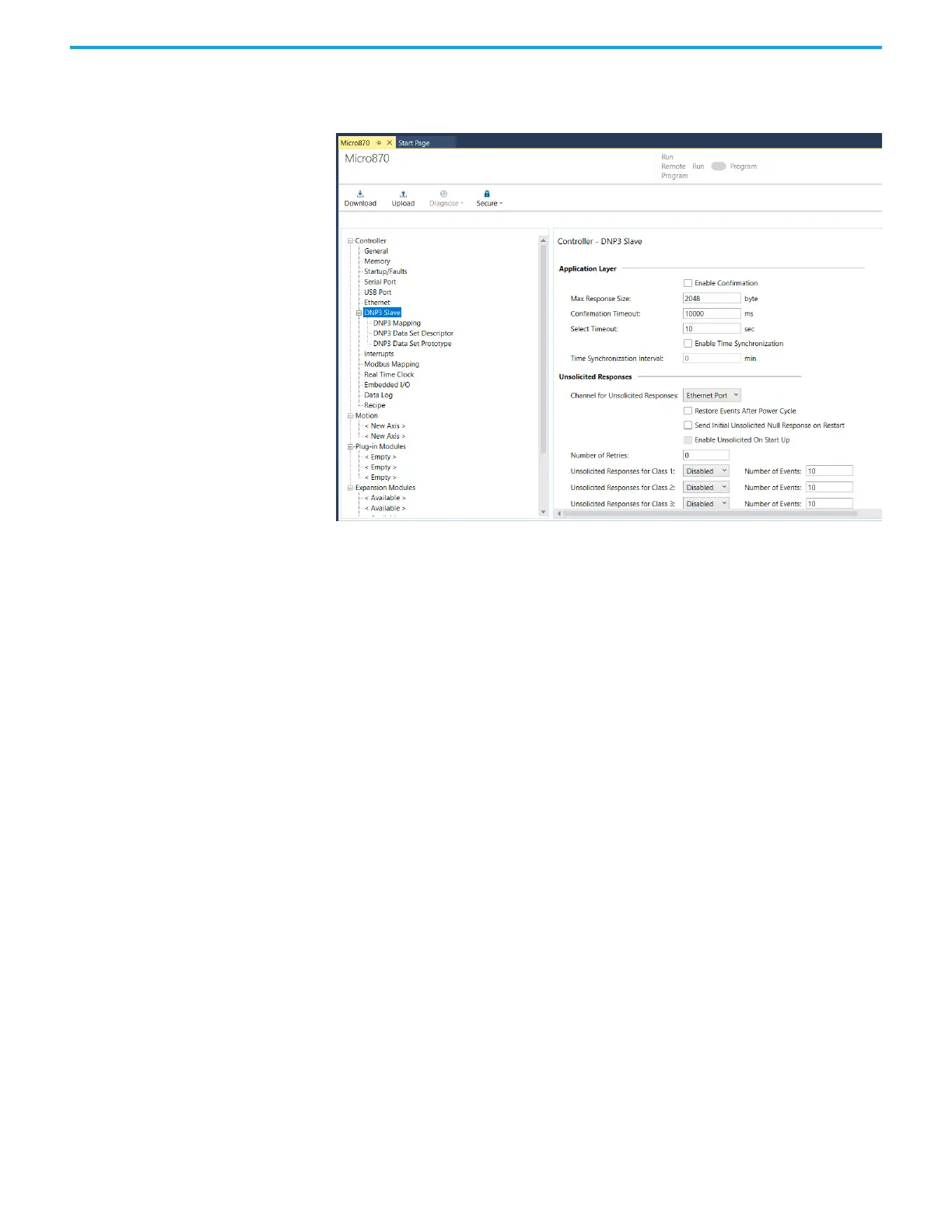

Application Layer related configuration can be done in the DNP3 Slave configuration page.
DNP3 Slave configuration is shared by the serial and Ethernet ports if multiple ports are
configured for DNP3 protocol. Any changes in the DNP3 Slave configuration page affects all
ports.
Serial Link Layer Configuration Parameters
Driver
This selection should be set to DNP3 Slave to communicate with DNP3 protocol.
Node Address
This value is a node address of this DNP3 Slave.
The valid range is 0…65519.
Default value is 1.
Baud
The selections can be 38400, 19200, 9600, 4800, 2400, and 1200.
Default selection is 38400.
Parity
The selections can be NONE, EVEN, and ODD. Default selection is NONE.
Stop Bits
The selections can be 1 and 2.
Default selection is 1.
