38

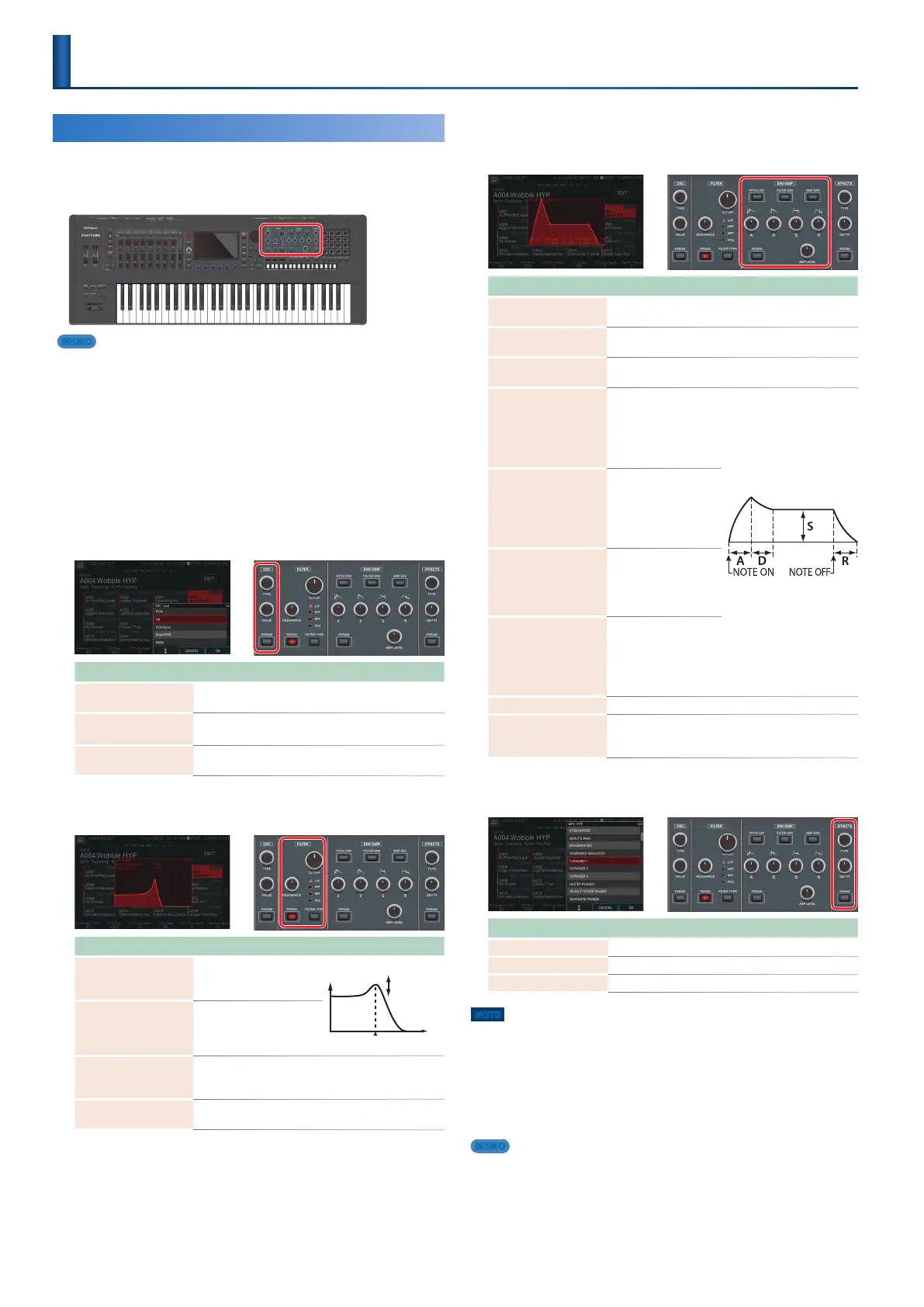

Playing the Edit Knobs
Using the Edit Knobs
You can use the knobs and buttons of the OSC section, FILTER
section, ENV/AMP section, and EFFECT section to edit the sound
in real time.
MEMO
Edit knobs that are enabled are lit blue around the circumference of the knob.
1.
Select the scene that you want to play.
2.
Operate the edit knobs and buttons to edit
the sound.
The edited parameter and its value appear in a popup window.
OSC (Oscillator) section
This selects the waveform that determines the character of
the sound.
Controller Explanation
[TYPE] knob
Specifies the OSC type.
The OSC types change according to the tone type.
[VALUE] knob
Edits a parameter corresponding to the OSC type.
Example: OSC TYPE=PCM0”Wave No.”
[PARAM] button
Accesses the OSC setting screen of the TONE EDIT
ZOOM screen.
FILTER section
This specifies the brightness and thickness of the sound.
Controller Explanation
[CUTOFF] knob
Specifies the cutoff
frequency of filter.
CUTOFF
RESONANCE
[RESONANCE] knob
Specifies the resonance
of filter.
This adds a distinctive
character to the sound.
[FILTER TYPE] button
Specifies the type of filter.
The filter response changes according to the type
you select.
[PARAM] button
Accesses the FILTER setting screen of the TONE EDIT
ZOOM screen.
ENV/AMP section
This specifies time-varying changes in pitch, tonal character,
and volume.
Controller Explanation
[PITCH ENV] button
Use the [A] [D] [S] [R] knobs to edit the pitch envelope
(time-varying change in pitch).
[FILTER ENV] button
Use the [A] [D] [S] [R] knobs to edit the filter envelope
(time-varying change in cutoff frequency).
[AMP ENV] button
Use the [A] [D] [S] [R] knobs to edit the amp envelope
(time-varying change in volume).
[A] knob
Specifies the attack
time of the envelope.
This is the time from
when you press the
key until the maximum
value is reached.
[D] knob
Specifies the decay
time of the envelope.
This is the time over
which the maximum
value decreases to the
sustain level.
[S] knob
Specifies the sustain
level of the envelope.
This is the value that is
maintained while you
hold down the key.
[R] knob
Specifies the release
time of the envelope.
This is the time from
when you release the
key until the value
reaches zero.
[AMP LEVEL] knob Adjusts the volume.
[PARAM] button
Accesses the TONE EDIT screen. The screen that
appears depends on the PITCH, FILTER, or AMP
parameters that are selected.
EFFECTS section
This applies various effects to the sound.
Controller Explanation
[TYPE] knob Specifies the MFX TYPE of the selected zone.
[DEPTH] knob Specifies the MFX DEPTH of the selected zone.
[PARAM] button Accesses the MFX screen of EFFECTS EDIT.
NOTE
Unlike when using the general-purpose controllers, the changes that you
make using the edit knobs always apply only to the tone of the current zone.
If you’re using the keyboard to play multiple layered tones, select the zone
that you want to edit as the current zone before you operate the knobs.
Depending on the tone type, the tone might consist of multiple partials, but
the changes you make using the knobs apply to the partial that is selected.
For details on how to select a partial and use the various TONE EDIT screens,
refer to “Editing a Tone” (p. 45).
MEMO
5 If you want to keep an edited tone, save the tone (p. 48).
5 For details on each parameter, refer to “Parameter Guide” (PDF).
