59

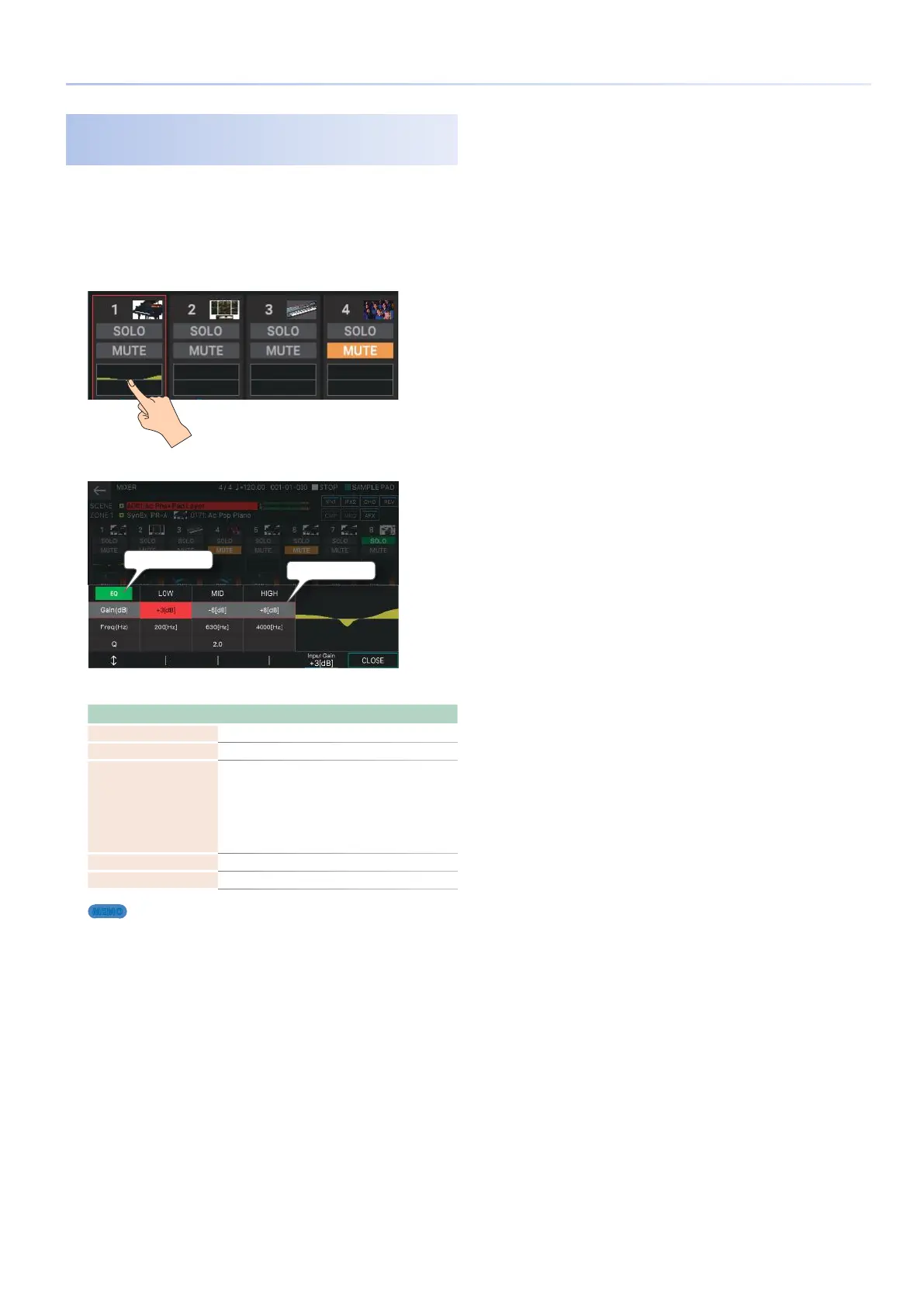

Using the Mixer Screen
Making ZONE EQ Settings in the MIXER
Screen
A simplified EQ curve is shown in the ZONE EQ area, and from
here you can access an edit screen and edit the ZONE EQ
settings.
1.
In the MIXER screen, touch the ZONE EQ field
of the zone whose EQ you want to edit.
The ZONE EQ screen appears.
EQ on/off
Cursor
2.
Edit the parameters as necessary.
Parameter Value Explanation
<EQ> OFF, ON Turns the ZONE EQ on/off.
[E1] knob – Moves the cursor up/down.
[E2]–[E4] knob –
Edit the corresponding
parameters depending on the
cursor position. For the example
shown in the illustration above,
[E2] corresponds to LOW Gain,
[E3] to MID Gain, and [E4] to
HIGH Gain respectively.
Input Gain [E5] knob -24–+24dB Specifies the input gain.
[E6] CLOSE – Closes the screen.
MEMO
For details on the ZONE EQ parameters, refer to “Parameter Guide”
(PDF).
