Using Insertion Effects
Dly Tm L (Delay Time Left) 0–500ms [1 (40 03 03)]
Adjusts the time from the original sound until when the left
delay sound is heard.
Dly Tm R (Delay Time Right) 0–500ms [2 (40 03 04)]
Adjusts the time from the original sound until when the
right delay sound is heard.
Feedback (Feedback Level) -98%–+98% [3 (40 03 05)]
Adjusts the proportion (%) of the processed sound that is
fed back into the effect. Negative (-) settings will invert the
phase.
Fb Mode (Feedback Mode) Norm/Cross [4 (40 03 06)]
Selects the way in which processed sound is fed back into
the effect.
Norm: The left delay sound will be fed back into the
left delay, and the right delay sound into the
right delay.
Cross: The left delay sound will be fed back into the
right delay, and the right delay sound into
the left delay.
+Mod Rate (Modulation Rate) 0.05–10.0 [5 (40 03 07)]
Adjusts the speed of the modulation.
Mod Depth (Modulation Depth) 0–127 [6 (40 03 08)]
Adjusts the depth of the modulation.
Mod Phase (Modulation Phase) 0–180 [7 (40 03 09)]
Adjusts the spatial spread of the sound.
HF Damp 315–8k/Bypass [8 (40 03 0A)]
Adjusts the frequency above which sound fed back to the
effect will be cut. If you do not wish to cut the high
frequencies of the feedback, set this parameter to Bypass.
#Balance (Effect Balance) D>0E–D0<E [16 (40 03 12)]
Adjusts the volume balance between the direct and the
processed sound.
“D” or “E” on the display respectively means D (direct
sound) or E (effect sound) values of 100.
Low Gain -12–+12 [17 (40 03 13)]
Adjusts the gain of the low frequency range.
Hi Gain (High Gain) -12–+12 [18 (40 03 14)]
Adjusts the gain of the high frequency range.
Level (Output Level) 0–127 [20 (40 03 16)]
Adjusts the output level.
23: 3 Tap Delay (Triple Tap Delay) [01H, 52H]
The Triple Tap Delay produces three delay sounds; center,
left and right.

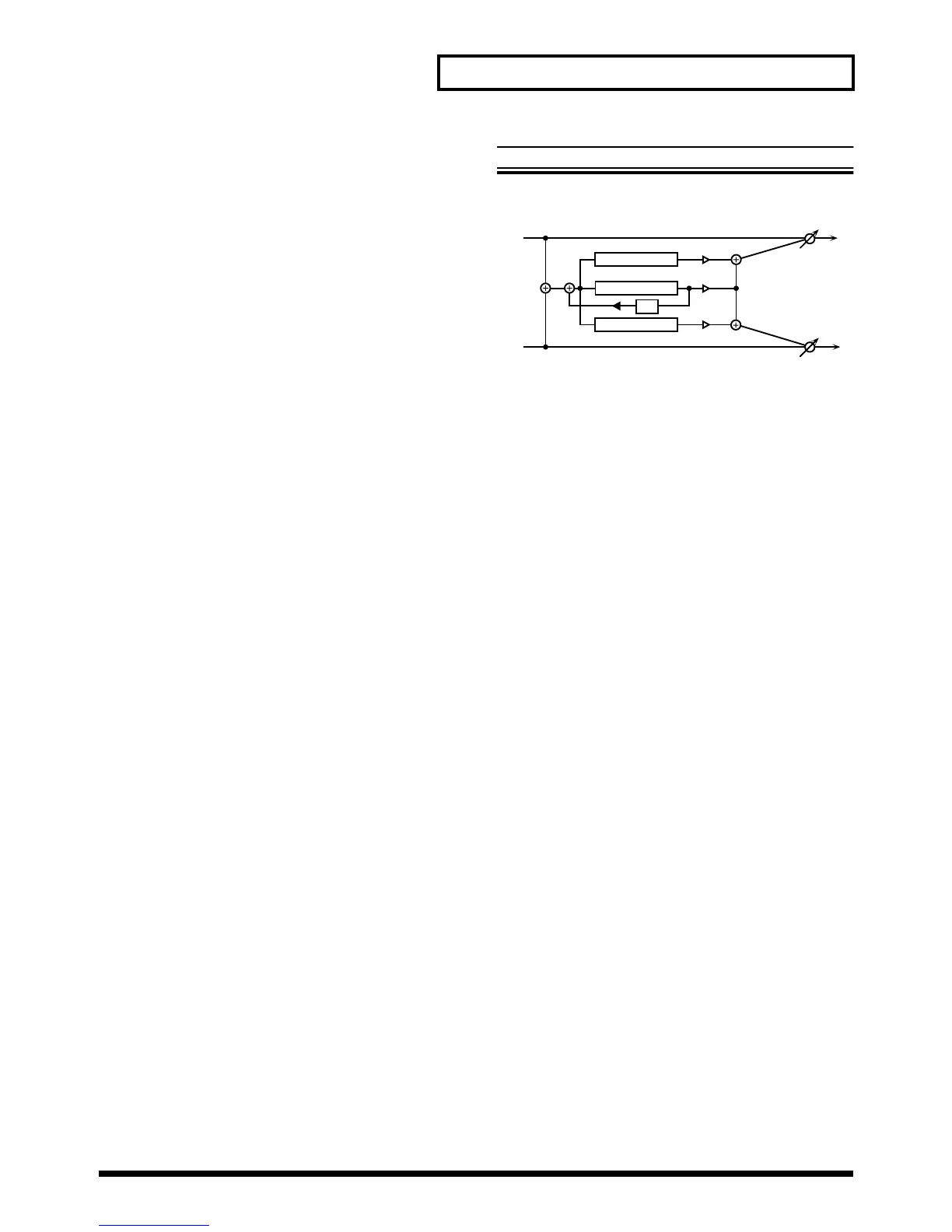

fig.9-26
Dly Tm C (Delay Time Center)
200–990ms/1sec [1 (40 03 03)]
Adjusts the time delay from the direct sound until when the
center delay sound is heard.
Dly Tm L (Delay Time Left) 200–990ms/1sec [2 (40 03
04)]
Adjusts the time delay from the direct sound until when the
left delay sound is heard.
Dly Tm R (Delay Time Right)
200–990ms/1sec [3 (40 03 05)]
Adjusts the time delay from the direct sound until when the
right delay sound is heard.
+Feedback (Feedback Level) -98%–+98% [4 (40 03 06)]
Adjusts the proportion (%) of the Center Delay sound that
is fed back into the effect. Negative (-) settings will invert
the phase.
Dly Lev C (Delay Level Center) 0–127 [5 (40 03 07)]
Adjusts the volume of Center Delay sound.
Dly Lev L (Delay Level Left) 0–127 [6 (40 03 08)]
Adjusts the volume of Left Delay sound.
Dly Lev R (Delay Level Right) 0–127 [7 (40 03 09)]
Adjusts the volume of Right Delay sound.
HF Damp 315–8k/Bypass [8 (40 03 0A)]
This adjusts the frequency at which the high range is cut
when the Center Delay sound is returned to the input. If
you do not wish to cut the high range, set this to Bypass.
#Balance (Effect Balance) D>0E–D0<E [16 (40 03 12)]
Adjusts the volume balance between the direct and the
processed sound.
“D” or “E” on the display respectively means D (direct
sound) or E (effect sound) values of 100.
Low Gain -12–+12 [17 (40 03 13)]
Adjusts the gain of the low frequency range.
Hi Gain (High Gain) -12–+12 [18 (40 03 14)]
Adjusts the gain of the high frequency range.
Level (Output Level) 0–127 [20 (40 03 16)]
Adjusts the output level.
L
R
Delay Left
Delay Right
Delay Center
HF
Level
Balance
Balance
