107
Using Insertion Effects
Hum LPF (Hum Noise LPF)
250–6.3 k/Bypass [13 (40 03 0F)]
Specifies the cutoff frequency of the low pass filter that is
applied to the hum noise.
Hum Level (Hum Noise Level) 0–127 [14 (40 03 10)]
Specifies the volume of the hum noise.
M/S (Mono/Stereo Switch) Mono/Stereo [15 (40 03 11)]
Selects whether the effect sound will be monaural or stereo.
#Balance (Effect Balance) D>0E–D0<E [16 (40 03 12)]
Adjusts the volume balance between the direct and the
effect sound.
“D” or “E” on the display respectively means D (direct
sound) or E (effect sound) values of 100.
Low Gain -12–+12 [17 (40 03 13)]
Adjusts the gain of the low frequency range.
Hi Gain (High Gain) -12–+12 [18 (40 03 14)]
Adjusts the gain of the high frequency range.
Pan (Mono) (Output Pan (Mono))
L63–0–R63 [19 (40 03 15)]
When Mono mode is used, adjust the stereo location of the
output sound. L63 is far left, 0 is center, and R63 is far right.
Level (Output Level) 0–127 [20 (40 03 16)]
Adjusts the output level.
Effects that connect two types of effect in series
(series 2)
35: OD → Chorus (Overdrive → Chorus) [02H, 00H]
This effect connects an overdrive and a chorus in series.

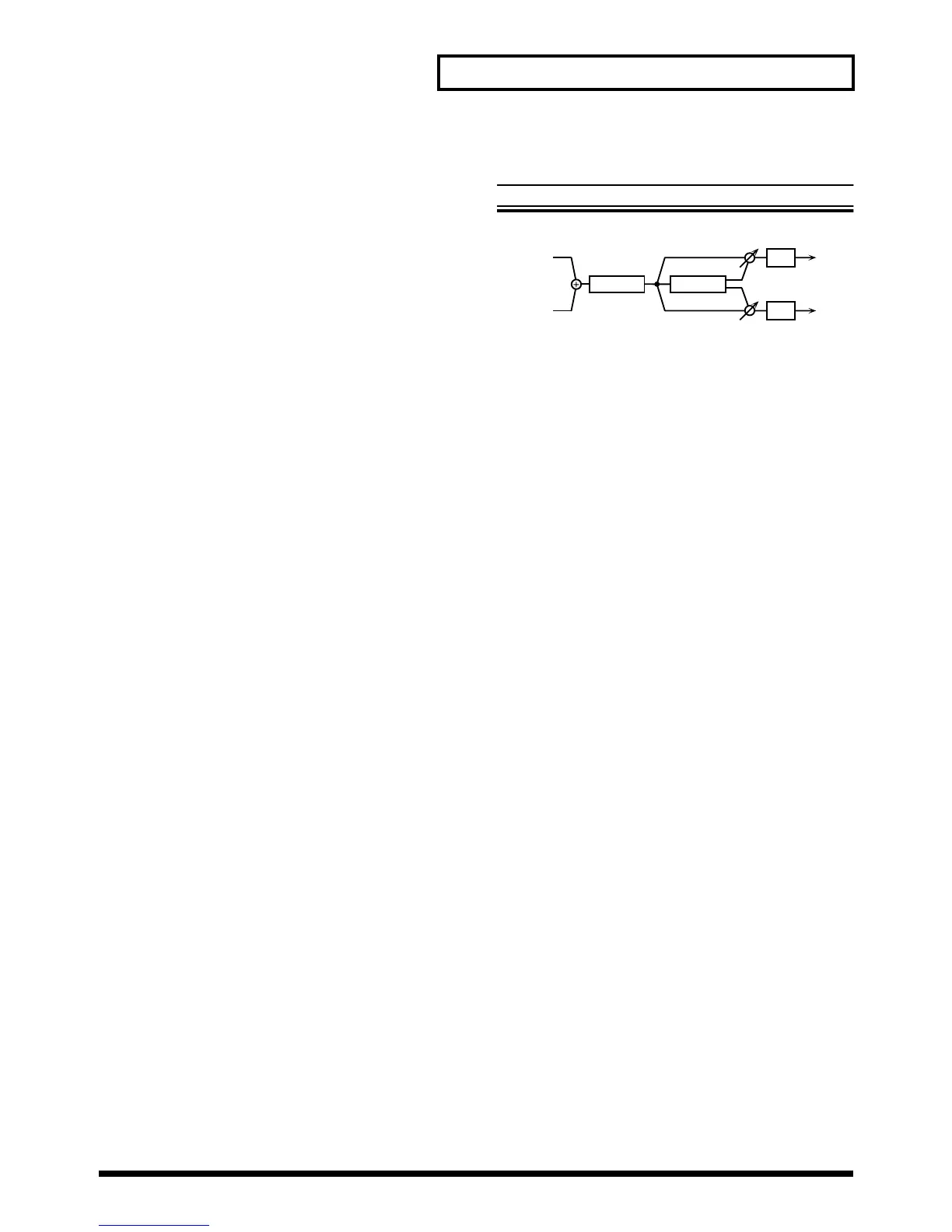

fig.9-38
OD Drive (Overdrive Drive) 0–127 [1 (40 03 03)]
Adjusts the degree of overdrive distortion. The volume will
change together with the degree of distortion.
+OD Pan (Overdrive Drive Output Pan)
L63–0–R63 [2 (40 03 04)]
Adjusts the stereo location of the overdrive sound. L63 is
far left, 0 is center, and R63 is far right.
OD Amp (Overdrive Amp Simulator Type)
Small/BltIn/2-Stk/3-Stk [3 (40 03 05)]
Selects the type of guitar amp.
Small: small amp
BltIn: single-unit type amp
2-Stk: large double stack amp
3-Stk: large triple stack amp
OD Amp Sw (Overdrive Amp Switch)
Off/On [4 (40 03 06)]
Turns OD Amp on/off.
Cho Dly (Chorus Pre Delay) 0–100ms [6 (40 03 08)]
Adjusts the time delay from when the direct sound begins
until the chorus sound is heared.
Cho Rate (Chorus Rate) 0.05–10.0 [7 (40 03 09)]
Adjusts the modulation speed of the chorus effect.
Cho Depth (Chorus Depth) 0–127 [8 (40 03 0A)]
Adjusts the modulation depth of the chorus effect.
#Cho Bal (Chorus Balance) D>0E–D0<E [10 (40 03 0C)]
Adjusts the volume balance between the sound that passes
through the chorus and the sound that does not. With a
setting of D>0E, only the overdrive sound will be output,
and with a setting of D0<E, the overdrive sound that passes
through the chorus will be output.
“D” or “E” on the display respectively means D (direct
sound) or E (effect sound) values of 100.
Low Gain -12–+12 [17 (40 03 13)]
Adjusts the low frequency gain.
Hi Gain (High Gain) -12–+12 [18 (40 03 14)]
Adjusts the high frequency gain
Level (Output Level) 0–127 [20 (40 03 16)]
Adjusts the output level.
L
R
Chorus
Overdrive
EQ
EQ
Balance
