8—The Home Screen
124 www.rolandus.com Roland VS-2480 Owner’s Manual

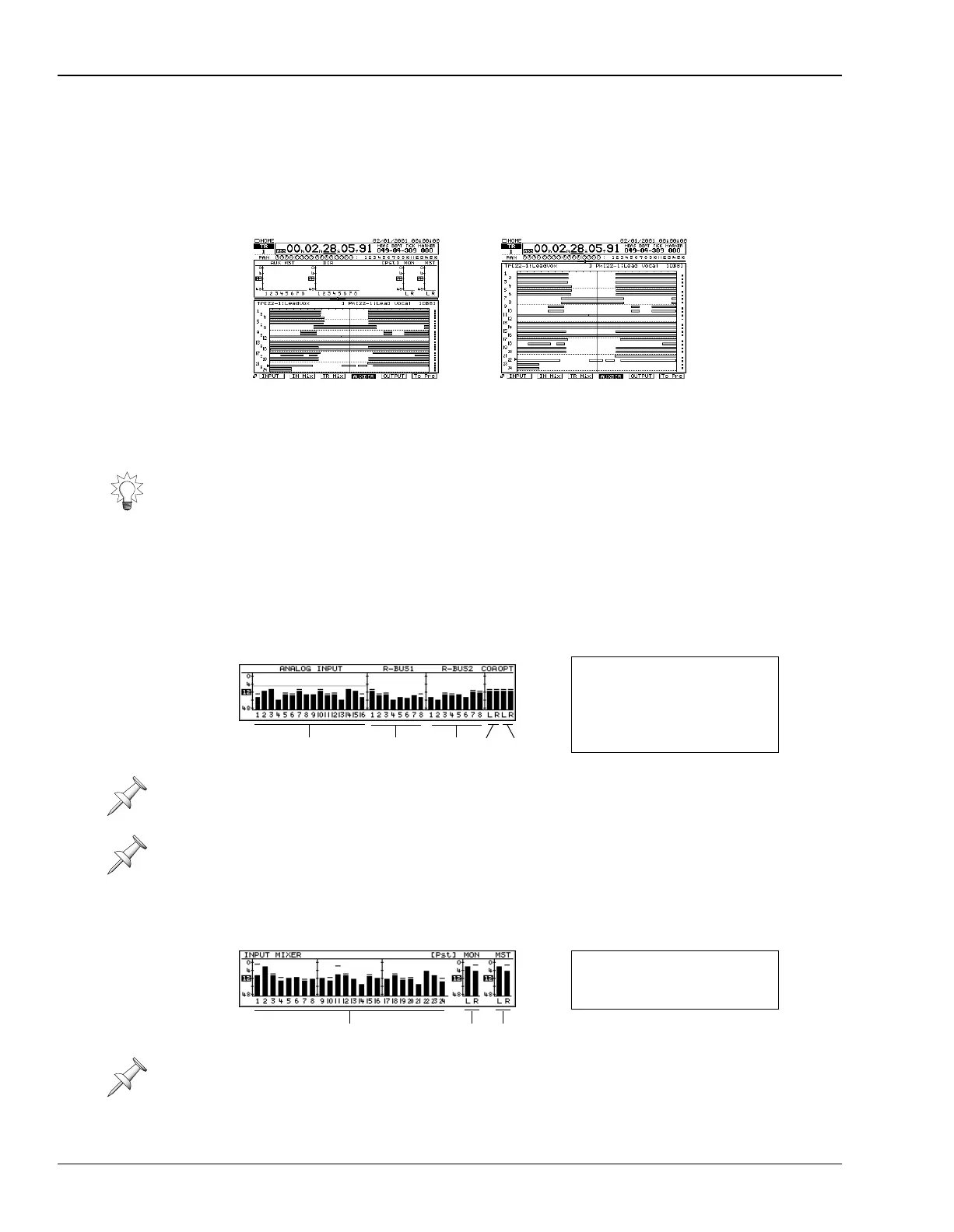

Expanded Playlist Views
You can hold down SHIFT and press HOME•DISPLAY to more radically change the
way the playlist is displayed. Each time you press HOME•DISPLAY, the screen cycles
through two additional playlist views and back to its original appearance:
•
Wide view
—the tracks fill the entire width of the Home screen.
•
Wide and tall view
—the tracks expand in height as well, reaching up to the position
bar. The meters or fader/pan display and V-Track map are hidden.
Meter Switches
The meter switches determine the signals to be shown in the meters display. Select:
•
F1 (INPUT)
—to show the level of signals coming into the input jacks from the
analog and digital input jacks and connectors.
•
F2 (IN Mix)
—to show the level of input channel signals before or after their faders,
and to show the MONITOR and MASTER bus levels.
You can further zoom in and out in the wide and wide and tall playlist views using the
techniques described in “Zooming In and Out on the Playlist” on Page 123.
The light gray line across the analog input meters shows the current setting of the input
peak indicators (Page 125).
An input jack’s signal can be metered only once it’s been routed to an input channel.
When you’re recording a track, the level setting of the input channel that’s routed to the
track sets the track’s recording level.
Wide Wide and tall
1. Analog Inputs 1-16
2. R-BUS 1 Digital Inputs 1-8
3. R-BUS 2 Digital Inputs 1-8
4. Stereo digital coaxial inputs
5. Stereo digital optical inputs
1. 2. 3. 4. 5.
1. Input Channels 1-24
2. Stereo MONITOR bus
3. Stereo MASTER bus
1. 2. 3.
