Roland VS-2480 User Manual

Supplemental Information
402 www.rolandus.com Roland VS-2480 Owner’s Manual
*Recording tracks are:
• TR 21/22/23/24 —MTP, MT1, MT2, LIV or LV2, and a sample rate of 48k or lower
• TR 13/14/15/16 —M24, M16 or CDR, and a sample rate of 48k or lower
• TR 9/10/11/12 —MTP, MT1, MT2, LIV or LV2, and a sample rate of 64k or higher
• TR 5/6/7/8 —M24, M16 or CDR, and a sample rate of 64k or higher

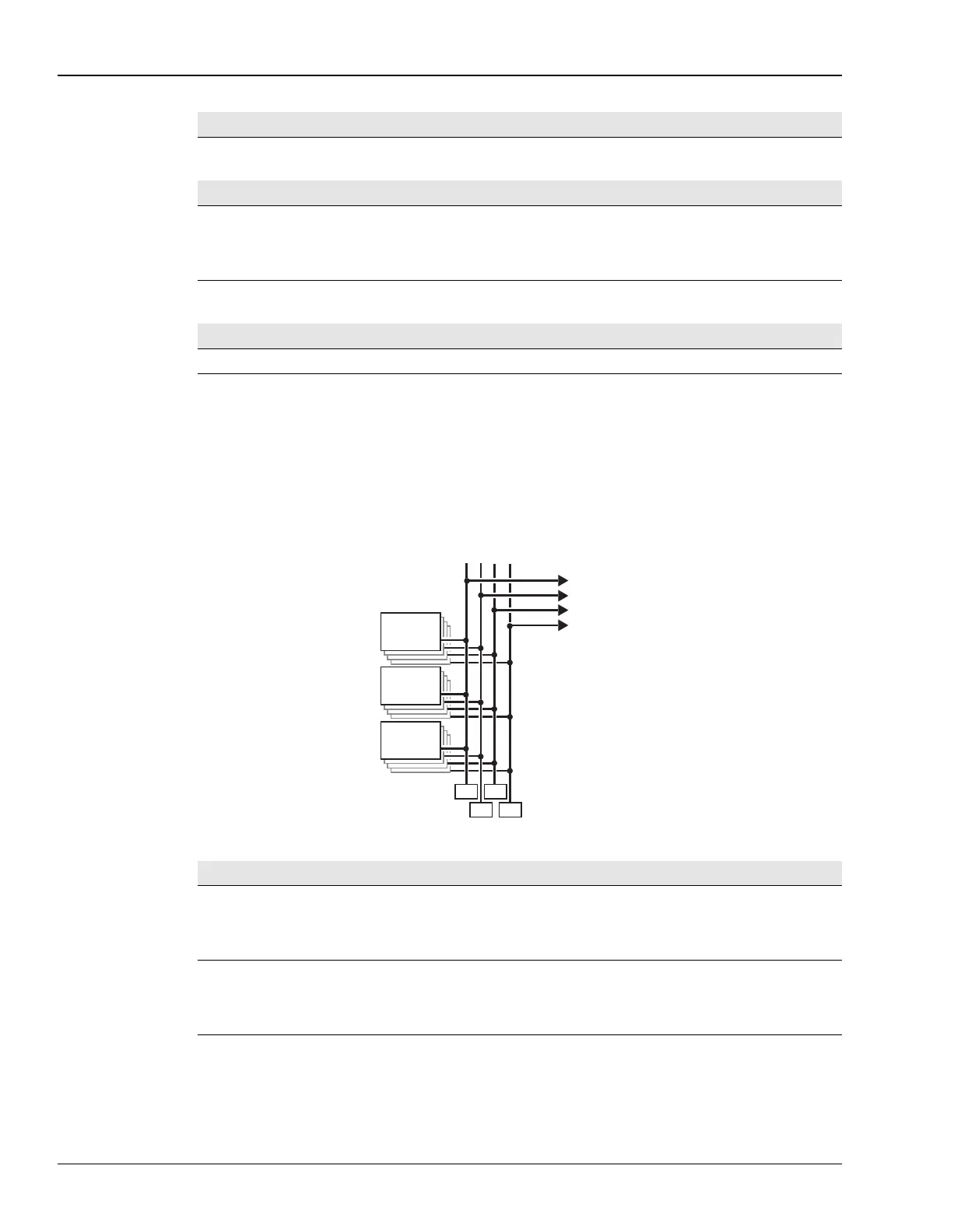

Surround 3+1 Template
LINK:
Bus LINK Off (AUX 4-8)
TRACK STATUS:
TR1 PLAY
: :
TR24 PLAY
Record track* REC
Others:
SURROUND MIX Sw On
SURROUND MIX MODE 2+2
TRACK ASSIGN:
IN1 Not in Use
: :
IN24 Not in Use
TR1 Not in Use
: :
TR24 Not in Use
FX1 RTN Not in Use
: :
FX8 RTN Not in Use
FX 1-8
Return MIXER
TRACK
MIXER 1-20
INPUT
MIXER 1-24
Surround Mix Mode
3+1
L
Surround
Pan/Depth/
LR:C
RCRC
Recording
Track
Surround
Pan/Depth/
LR:C
Surround
Pan/Depth/
LR:C
5
6
7
8
Analog Multi
Output
TR21 TR23
TR22 TR24
VS2480OMUS.book 402 ページ ２００６年２月７日 火曜日 午後４時１６分

Roland VS-2480 Specifications

General

Tracks	24
Simultaneous Recording Tracks	24
Type	Digital Audio Workstation
Simultaneous Playback Tracks	24
A/D Resolution	24-bit
D/A Resolution	24-bit
Phantom Power	Yes
Effects	8
Outputs	8
Digital I/O	S/PDIF
Sampling Rate	44.1kHz, 48kHz
Display	LCD
CD-RW Drive	Built-in
