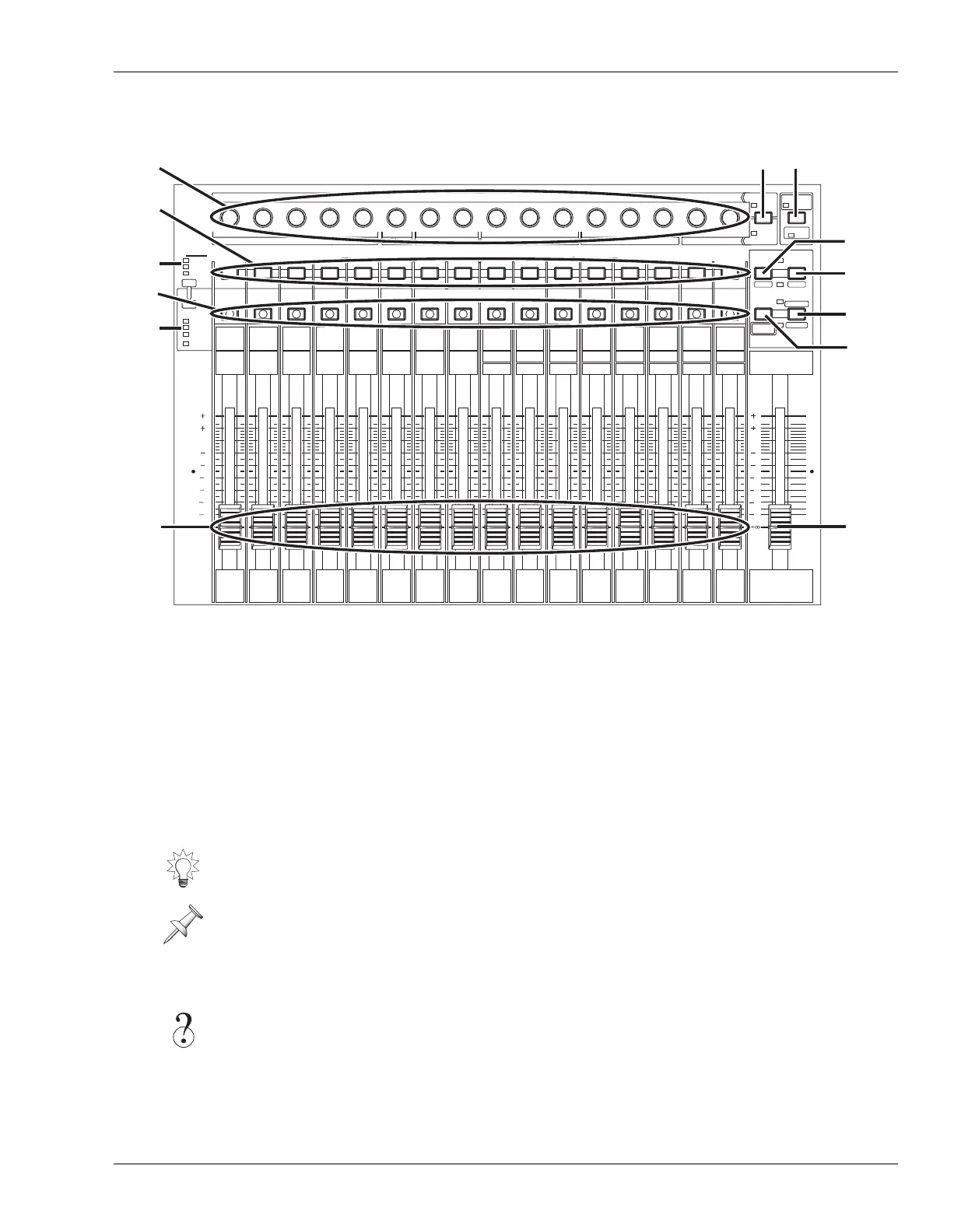

Channel Strips
Each of the first sixteen channel strips contains—reading from the bottom up—a fader,
a TRACK STATUS/PHRASE PAD button, a CH EDIT/SELECT/PHRASE SEQ STATUS/
AUTOMIX STATUS button and a PAN/AUX SEND 1-8 knob. Channel strips are
described in detail in Chapters 9. At the right side of this area is the MASTER fader
(Page 142).
1—PAN/AUX SEND 1-8 Knobs
These multi-purpose knobs perform several functions, depending on the current color
of the AUX SEND•PRM EDIT button (see “7—AUX SEND•PRM EDIT Button” on
Page 34).
When using the channel strips as a MIDI control surface—see Page 300—use the knobs
to transmit MIDI Control Change messages.
Each PAN/AUX SEND 1-8 knob controls its channel’s panning when the AUX
SEND•PRM EDIT button is unlit. You can set the knob to control another channel
setting if you wish. See “Using the PAN/AUX SEND 1-8 Knobs” on Page 139.
The PAN/AUX SEND 1-8 knobs are described in detail starting on Page 139.
Channel, channel strip, fader, panning, MIDI, MIDI control surface, MIDI Control Change
messages
