Using the VGA Info Display

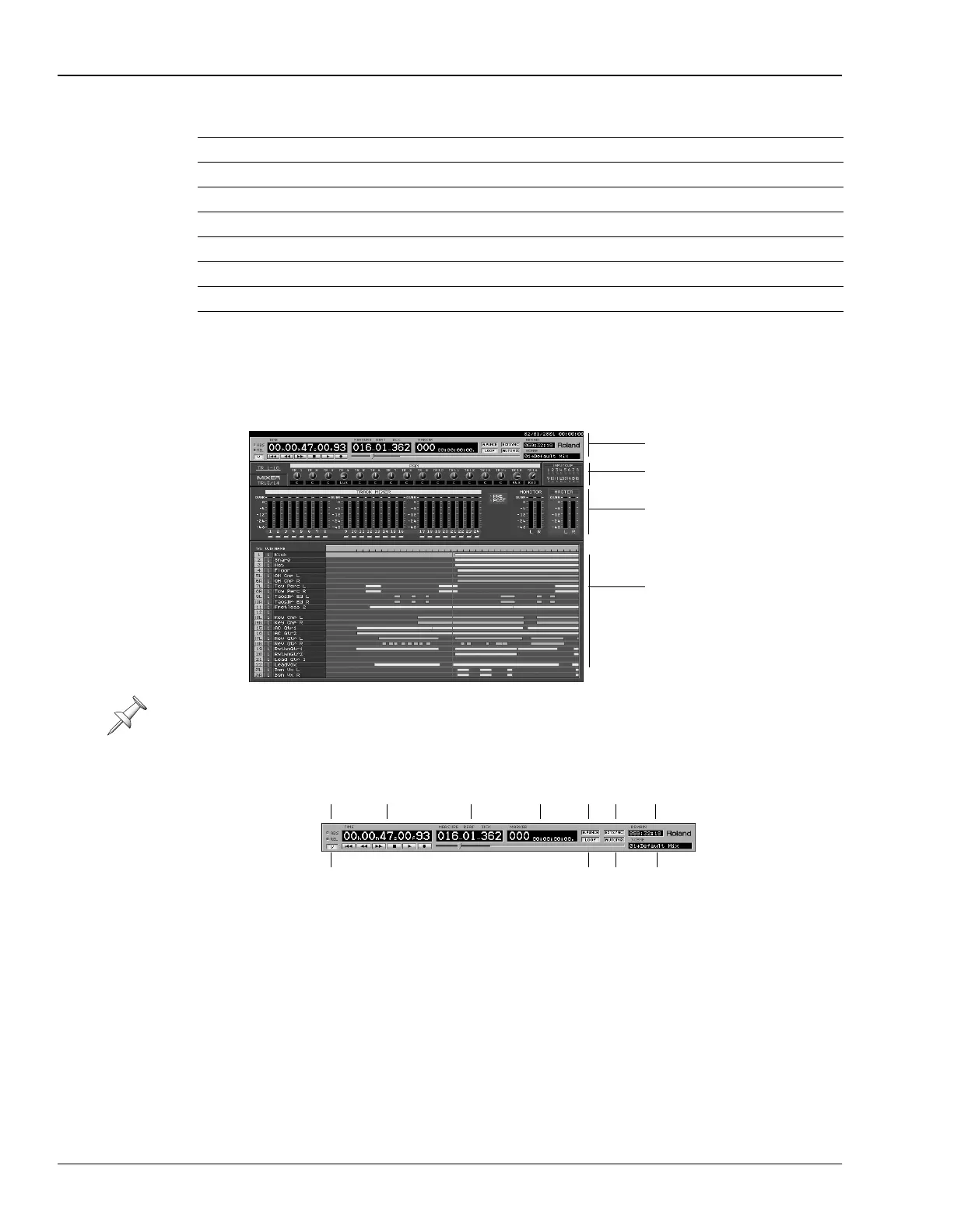

Most of the VS-2480 Info Display’s screens are divided into four areas.
General Information Strip
This area appears at the top of all of the Info Display’s screens. The:
1. ABS/REL indicators —tell whether the Info Display’s time counters are showing
absolute time or are shifted to correspond to the setting of the SYNC OFFSET TIME
parameter in the UTILITY menu.
2. VARI PITCH indicator —shows when VARI PITCH in the UTILITY menu is on.
3. TIME —shows the current location in hours, minutes, seconds, frames, subframes.
4. MEASURE/BEAT/TICK —shows the current time in measures, beats and ticks.
(There are 480 ticks in each beat.)
5. MARKER —shows the last marker before the current position of the timeline.
6. A.PUNCH indicator —shows when automatic punching is turned on.
7. EXTSYNC indicator —shows when external synchronization is active.
And the keyboard’s: Acts as the VS-2480’s:
F1-F6 F1-F6 buttons
Tab the PAGE button
Enter the ENTER/YES button or left mouse button
Esc the EXIT/NO button
F9 the PROJECT MENU button
F10 the TRACK MENU button
F11 the EFFECT MENU button
F12 the UTILITY MENU button
The Info Display also provides a date and time readout in its upper right-hand corner.
General Information Strip
PAN/AUX SEND 1-8 Strip
Meters Strip
Bottom Pane
1
2
34567
89
10
11
