Operating the C7-613
5-33
C7-613 Control System
A5E00138934-03

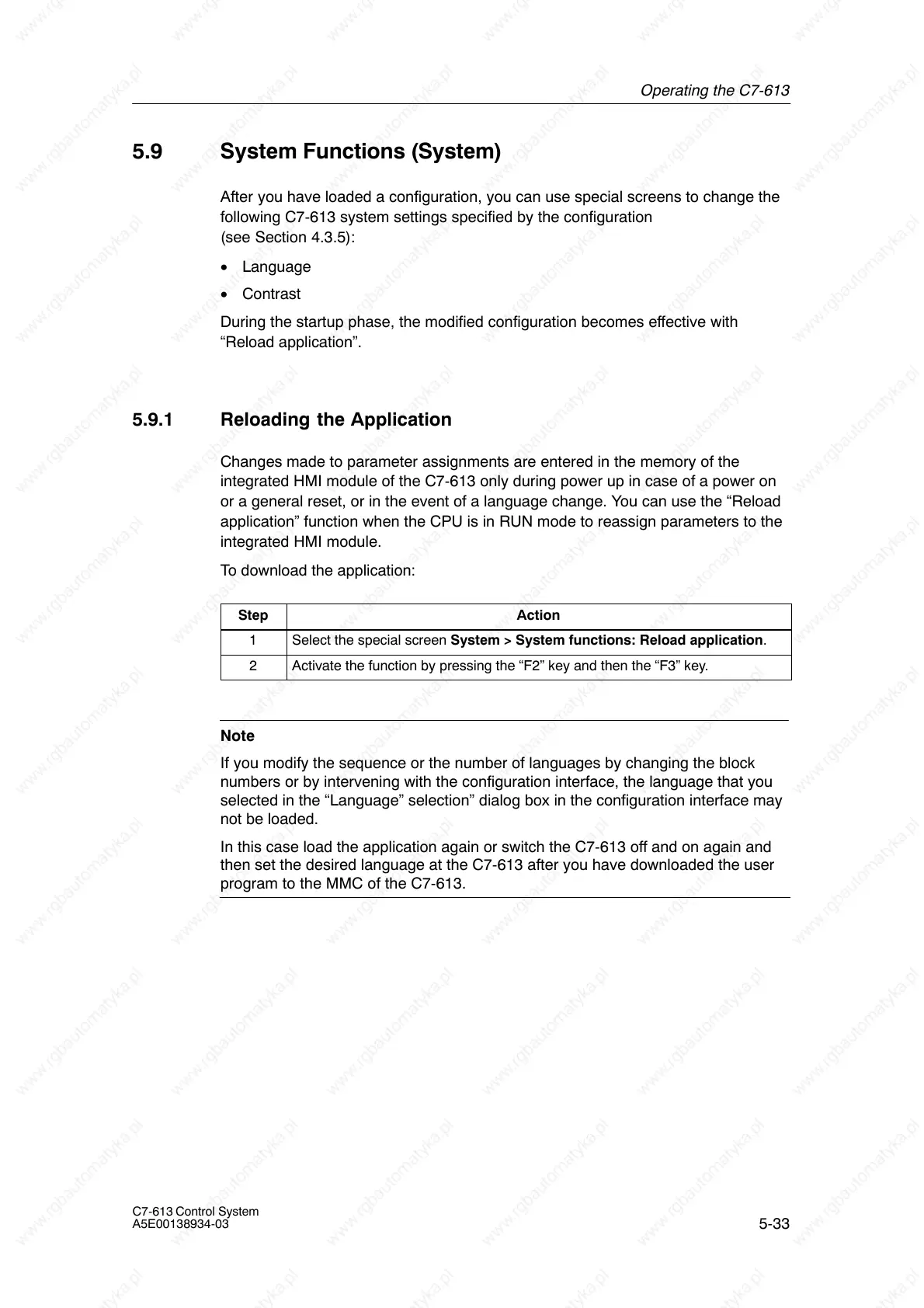

5.9 System Functions (System)
After you have loaded a configuration, you can use special screens to change the
following C7-613 system settings specified by the configuration
(see Section 4.3.5):
• Language
• Contrast
During the startup phase, the modified configuration becomes effective with
“Reload application”.
5.9.1 Reloading the Application
Changes made to parameter assignments are entered in the memory of the
integrated HMI module of the C7-613 only during power up in case of a power on
or a general reset, or in the event of a language change. You can use the “Reload
application” function when the CPU is in RUN mode to reassign parameters to the
integrated HMI module.
To download the application:
Step Action
1 Select the special screen System > System functions: Reload application.
2 Activate the function by pressing the “F2” key and then the “F3” key.
Note
If you modify the sequence or the number of languages by changing the block
numbers or by intervening with the configuration interface, the language that you
selected in the “Language” selection” dialog box in the configuration interface may
not be loaded.
In this case load the application again or switch the C7-613 off and on again and
then set the desired language at the C7-613 after you have downloaded the user
program to the MMC of the C7-613.
