C-14
C7-613 Control System
A5E00138934-03

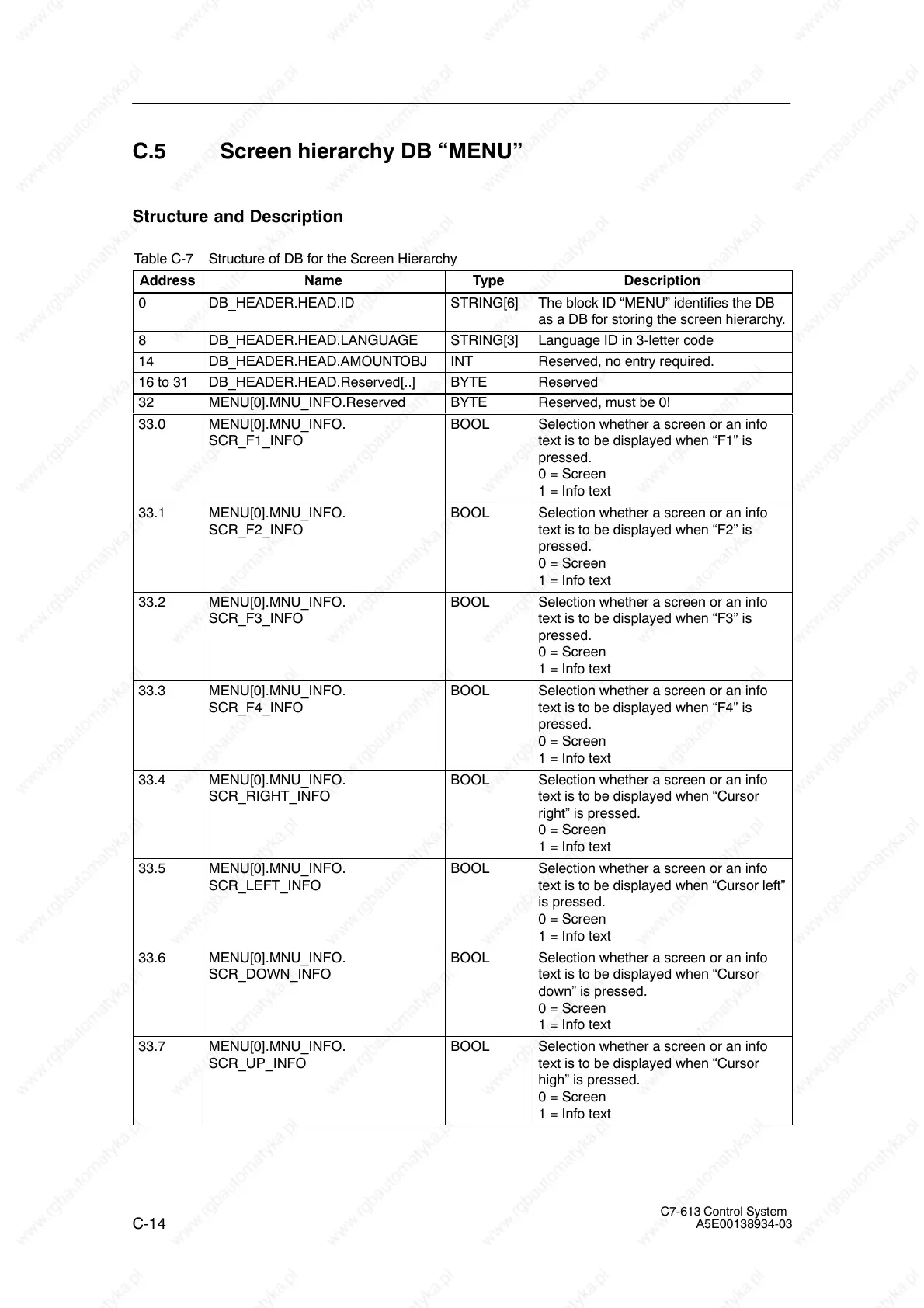

C.5 Screen hierarchy DB “MENU”
Structure and Description
Table C-7 Structure of DB for the Screen Hierarchy
Address
Name Type Description
0 DB_HEADER.HEAD.ID STRING[6] The block ID “MENU” identifies the DB
as a DB for storing the screen hierarchy.
8 DB_HEADER.HEAD.LANGUAGE STRING[3] Language ID in 3-letter code
14 DB_HEADER.HEAD.AMOUNTOBJ INT Reserved, no entry required.
16 to 31 DB_HEADER.HEAD.Reserved[..] BYTE Reserved
32 MENU[0].MNU_INFO.Reserved BYTE Reserved, must be 0!
33.0 MENU[0].MNU_INFO.
SCR_F1_INFO
BOOL Selection whether a screen or an info
text is to be displayed when “F1” is
pressed.
0 = Screen
1 = Info text
33.1 MENU[0].MNU_INFO.
SCR_F2_INFO
BOOL Selection whether a screen or an info
text is to be displayed when “F2” is
pressed.
0 = Screen
1 = Info text
33.2 MENU[0].MNU_INFO.
SCR_F3_INFO
BOOL Selection whether a screen or an info
text is to be displayed when “F3” is
pressed.
0 = Screen
1 = Info text
33.3 MENU[0].MNU_INFO.
SCR_F4_INFO
BOOL Selection whether a screen or an info
text is to be displayed when “F4” is
pressed.
0 = Screen
1 = Info text
33.4 MENU[0].MNU_INFO.
SCR_RIGHT_INFO
BOOL Selection whether a screen or an info
text is to be displayed when “Cursor
right” is pressed.
0 = Screen
1 = Info text
33.5 MENU[0].MNU_INFO.
SCR_LEFT_INFO
BOOL Selection whether a screen or an info
text is to be displayed when “Cursor left”
is pressed.
0 = Screen
1 = Info text
33.6 MENU[0].MNU_INFO.
SCR_DOWN_INFO
BOOL Selection whether a screen or an info
text is to be displayed when “Cursor
down” is pressed.
0 = Screen
1 = Info text
33.7 MENU[0].MNU_INFO.
SCR_UP_INFO
BOOL Selection whether a screen or an info
text is to be displayed when “Cursor
high” is pressed.
0 = Screen
1 = Info text
