Configuration DBs
C-5
C7-613 Control System
A5E00138934-03

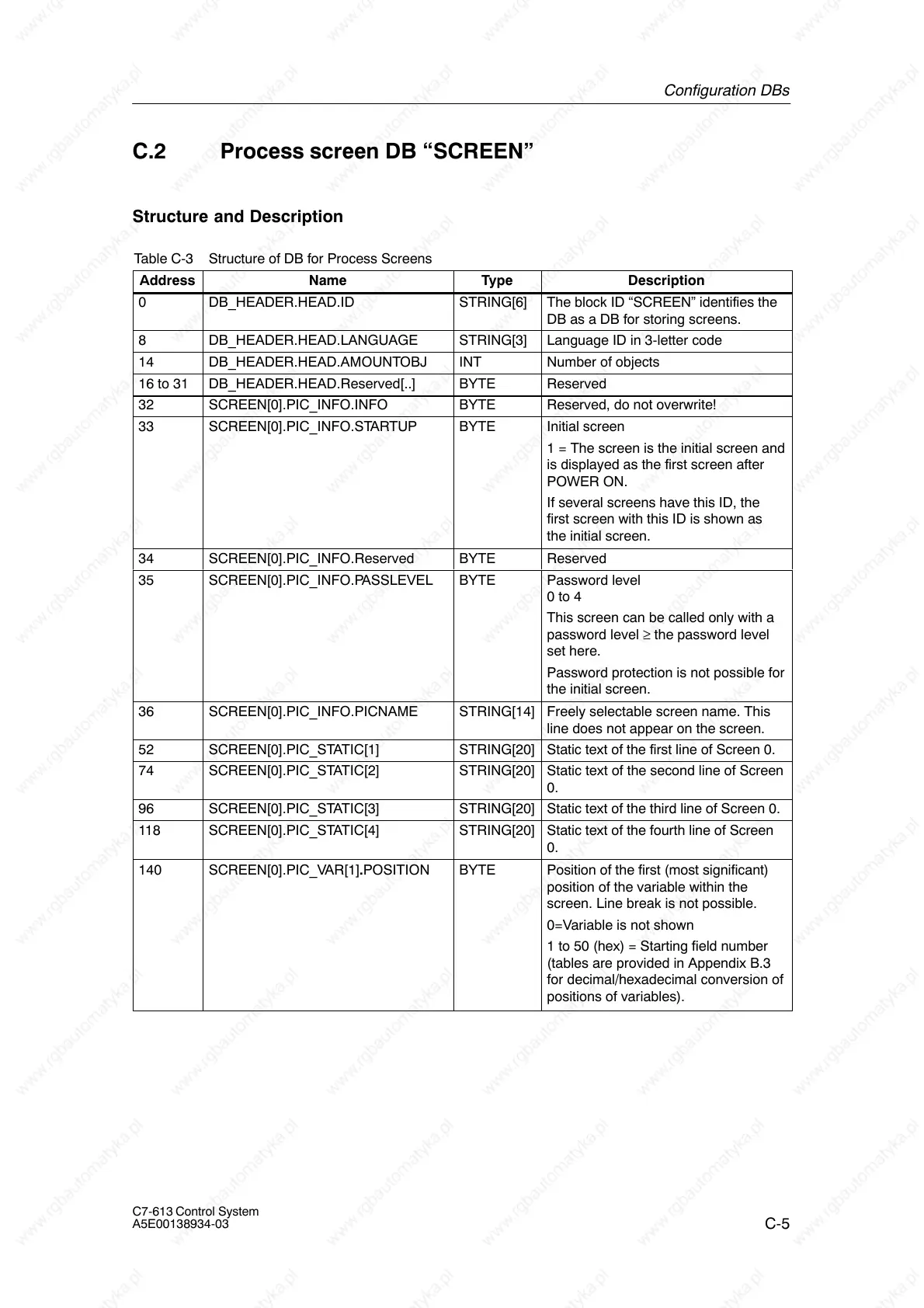

C.2 Process screen DB “SCREEN”
Structure and Description
Table C-3 Structure of DB for Process Screens
Address
Name Type Description
0 DB_HEADER.HEAD.ID STRING[6] The block ID “SCREEN” identifies the
DB as a DB for storing screens.
8 DB_HEADER.HEAD.LANGUAGE STRING[3] Language ID in 3-letter code
14 DB_HEADER.HEAD.AMOUNTOBJ INT Number of objects
16 to 31 DB_HEADER.HEAD.Reserved[..] BYTE Reserved
32 SCREEN[0].PIC_INFO.INFO BYTE Reserved, do not overwrite!
33 SCREEN[0].PIC_INFO.STARTUP BYTE Initial screen
1 = The screen is the initial screen and
is displayed as the first screen after
POWER ON.
If several screens have this ID, the
first screen with this ID is shown as
the initial screen.
34 SCREEN[0].PIC_INFO.Reserved BYTE Reserved
35 SCREEN[0].PIC_INFO.PASSLEVEL BYTE Password level
0 to 4
This screen can be called only with a
password level ≥ the password level
set here.
Password protection is not possible for
the initial screen.
36 SCREEN[0].PIC_INFO.PICNAME STRING[14] Freely selectable screen name. This
line does not appear on the screen.
52 SCREEN[0].PIC_STATIC[1] STRING[20] Static text of the first line of Screen 0.
74 SCREEN[0].PIC_STATIC[2] STRING[20] Static text of the second line of Screen
0.
96 SCREEN[0].PIC_STATIC[3] STRING[20] Static text of the third line of Screen 0.
118 SCREEN[0].PIC_STATIC[4] STRING[20] Static text of the fourth line of Screen
0.
140 SCREEN[0].PIC_VAR[1].POSITION BYTE Position of the first (most significant)
position of the variable within the
screen. Line break is not possible.
0=Variable is not shown
1 to 50 (hex) = Starting field number
(tables are provided in Appendix B.3
for decimal/hexadecimal conversion of
positions of variables).
