Installing and Wiring the C7-613
2-20
C7-613 Control System
A5E00138934-03

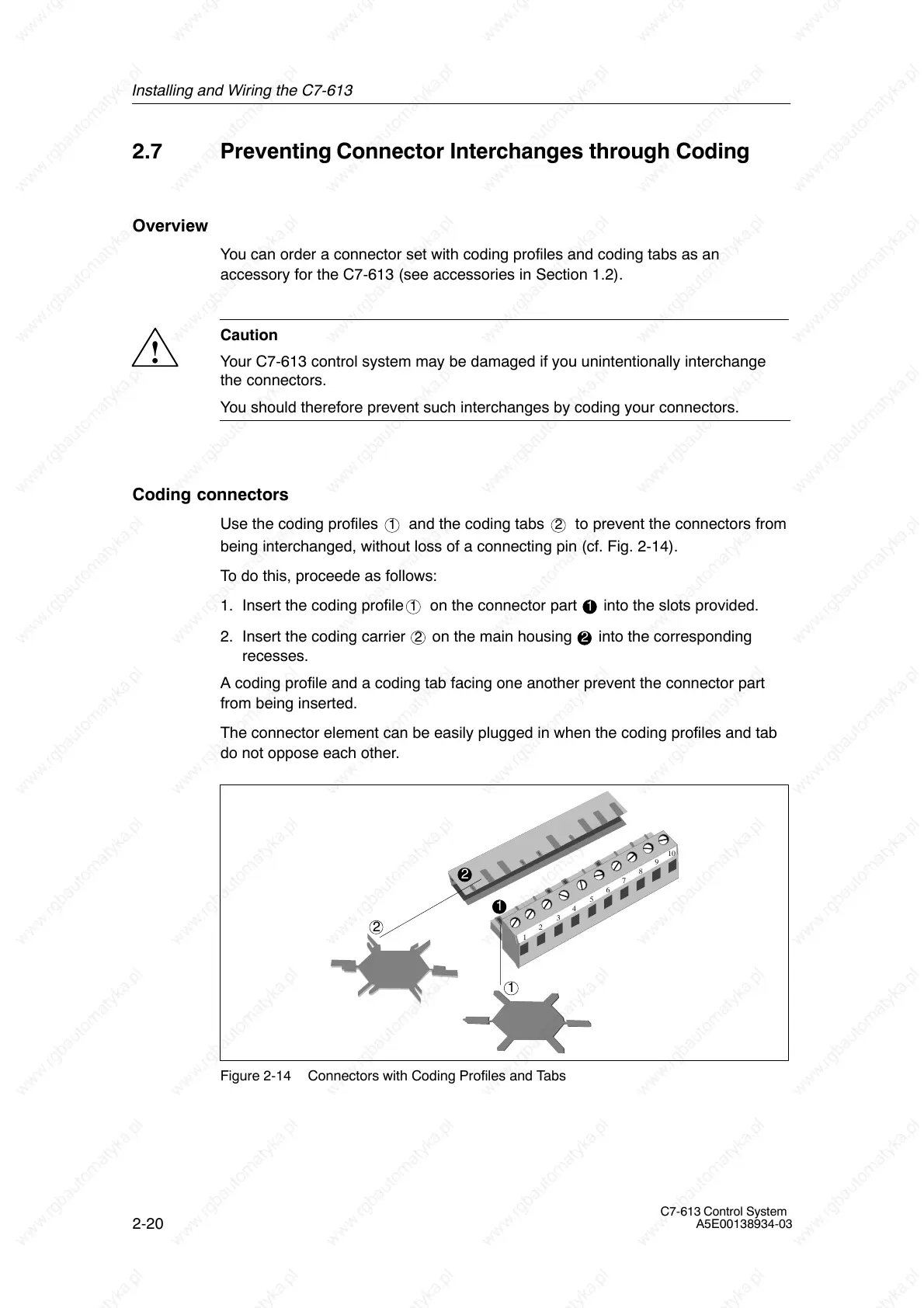

2.7 Preventing Connector Interchanges through Coding
Overview
You can order a connector set with coding profiles and coding tabs as an
accessory for the C7-613 (see accessories in Section 1.2).
!
Caution
Your C7-613 control system may be damaged if you unintentionally interchange
the connectors.
You should therefore prevent such interchanges by coding your connectors.
Coding connectors
Use the coding profiles 1 and the coding tabs 2 to prevent the connectors from
being interchanged, without loss of a connecting pin (cf. Fig. 2-14).
To do this, proceede as follows:
1. Insert the coding profile
1 on the connector part 1 into the slots provided.
2. Insert the coding carrier
2 on the main housing 2 into the corresponding
recesses.
A coding profile and a coding tab facing one another prevent the connector part
from being inserted.
The connector element can be easily plugged in when the coding profiles and tab
do not oppose each other.
1
2
3
4
5
6
7
8
9
10
1
2
1
2
Figure 2-14 Connectors with Coding Profiles and Tabs
