Configuration DBs
C-3
C7-613 Control System
A5E00138934-03

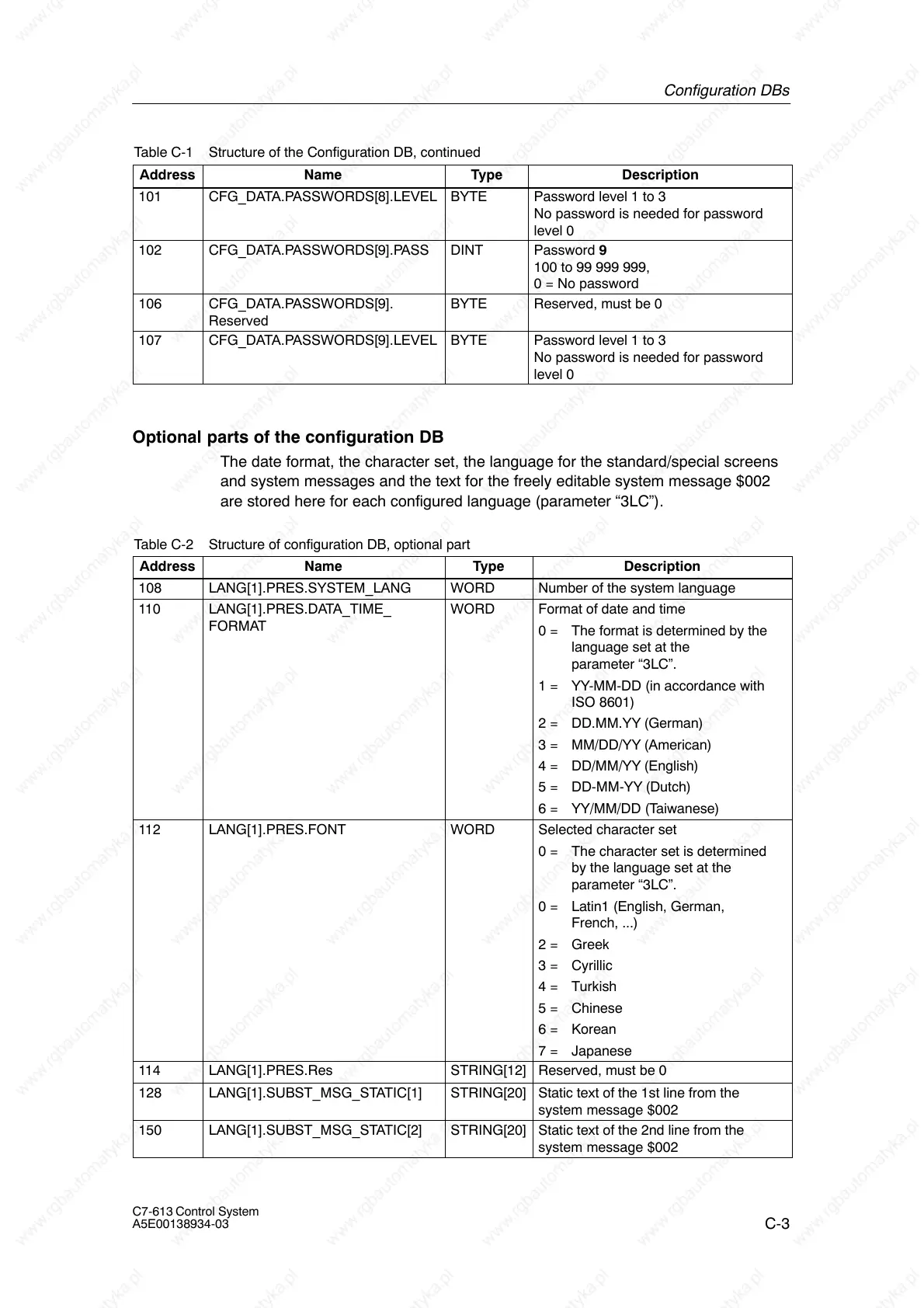

Table C-1 Structure of the Configuration DB, continued
Address DescriptionTypeName
101 CFG_DATA.PASSWORDS[8].LEVEL BYTE Password level 1 to 3
No password is needed for password
level 0
102 CFG_DATA.PASSWORDS[9].PASS DINT Password 9
100 to 99 999 999,
0 = No password
106 CFG_DATA.PASSWORDS[9].
Reserved
BYTE Reserved, must be 0
107 CFG_DATA.PASSWORDS[9].LEVEL BYTE Password level 1 to 3
No password is needed for password
level 0
Optional parts of the configuration DB
The date format, the character set, the language for the standard/special screens
and system messages and the text for the freely editable system message $002
are stored here for each configured language (parameter “3LC”).
Table C-2 Structure of configuration DB, optional part
Address
Name Type Description
108 LANG[1].PRES.SYSTEM_LANG WORD Number of the system language
110 LANG[1].PRES.DATA_TIME_
FORMAT
WORD Format of date and time
0 = The format is determined by the
language set at the
parameter “3LC”.
1 = YY-MM-DD (in accordance with
ISO 8601)
2 = DD.MM.YY (German)
3 = MM/DD/YY (American)
4 = DD/MM/YY (English)
5 = DD-MM-YY (Dutch)
6 = YY/MM/DD (Taiwanese)
112 LANG[1].PRES.FONT WORD Selected character set
0 = The character set is determined
by the language set at the
parameter “3LC”.
0 = Latin1 (English, German,
French, ...)
2 = Greek
3 = Cyrillic
4 = Turkish
5 = Chinese
6 = Korean
7 = Japanese
114 LANG[1].PRES.Res STRING[12] Reserved, must be 0
128 LANG[1].SUBST_MSG_STATIC[1] STRING[20] Static text of the 1st line from the
system message $002
150 LANG[1].SUBST_MSG_STATIC[2] STRING[20] Static text of the 2nd line from the
system message $002
