Product overview
1-9
C7-613 Control System
A5E00138934-03

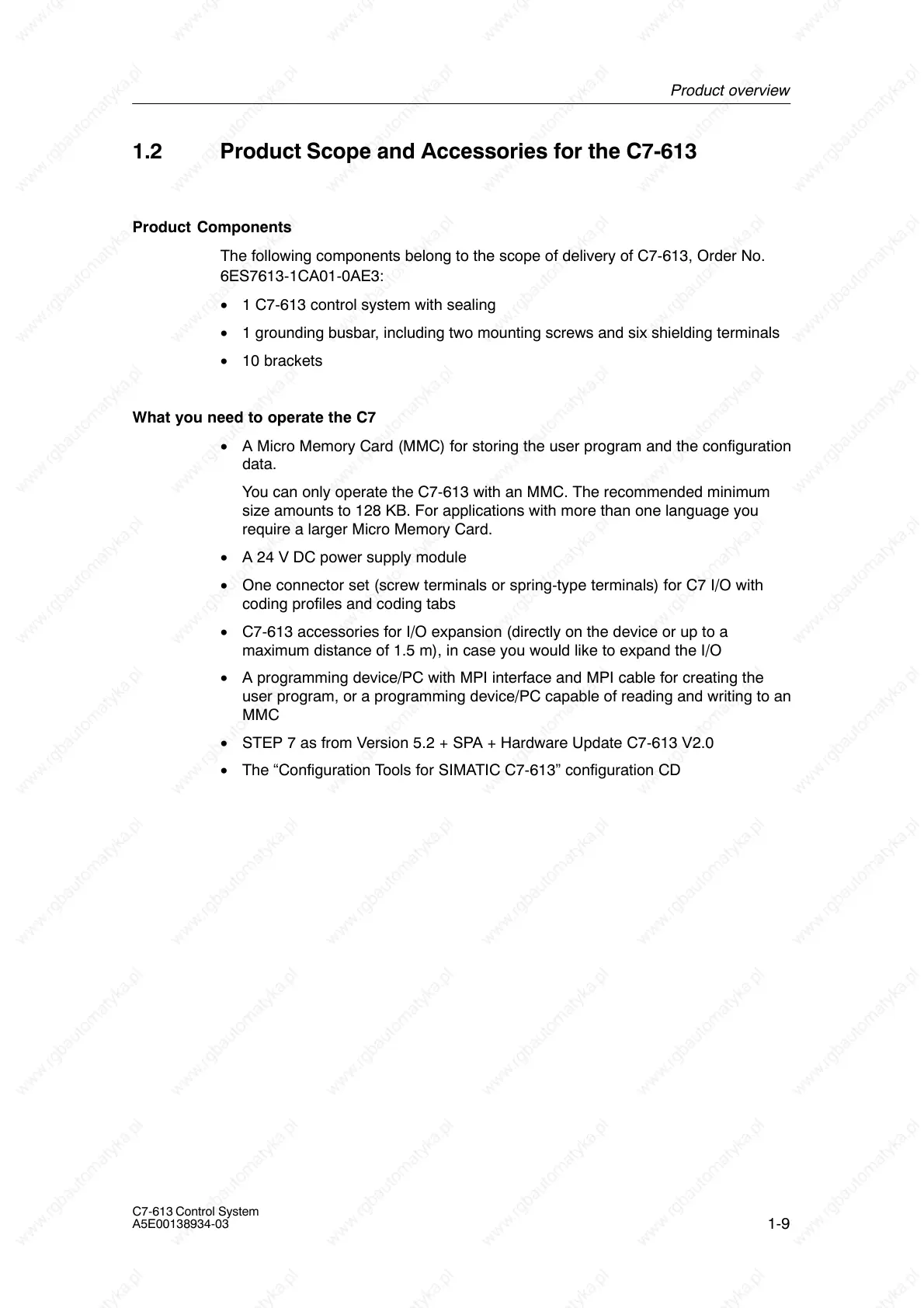

1.2 Product Scope and Accessories for the C7-613
Product Components
The following components belong to the scope of delivery of C7-613, Order No.
6ES7613-1CA01-0AE3:
• 1 C7-613 control system with sealing
• 1 grounding busbar, including two mounting screws and six shielding terminals
• 10 brackets
What you need to operate the C7
• A Micro Memory Card (MMC) for storing the user program and the configuration
data.
You can only operate the C7-613 with an MMC. The recommended minimum
size amounts to 128 KB. For applications with more than one language you
require a larger Micro Memory Card.
• A 24 V DC power supply module
• One connector set (screw terminals or spring-type terminals) for C7 I/O with
coding profiles and coding tabs
• C7-613 accessories for I/O expansion (directly on the device or up to a
maximum distance of 1.5 m), in case you would like to expand the I/O
• A programming device/PC with MPI interface and MPI cable for creating the
user program, or a programming device/PC capable of reading and writing to an
MMC
• STEP 7 as from Version 5.2 + SPA + Hardware Update C7-613 V2.0
• The “Configuration Tools for SIMATIC C7-613” configuration CD
