Integration into the User Program
4-23
C7-613 Control System
A5E00138934-03

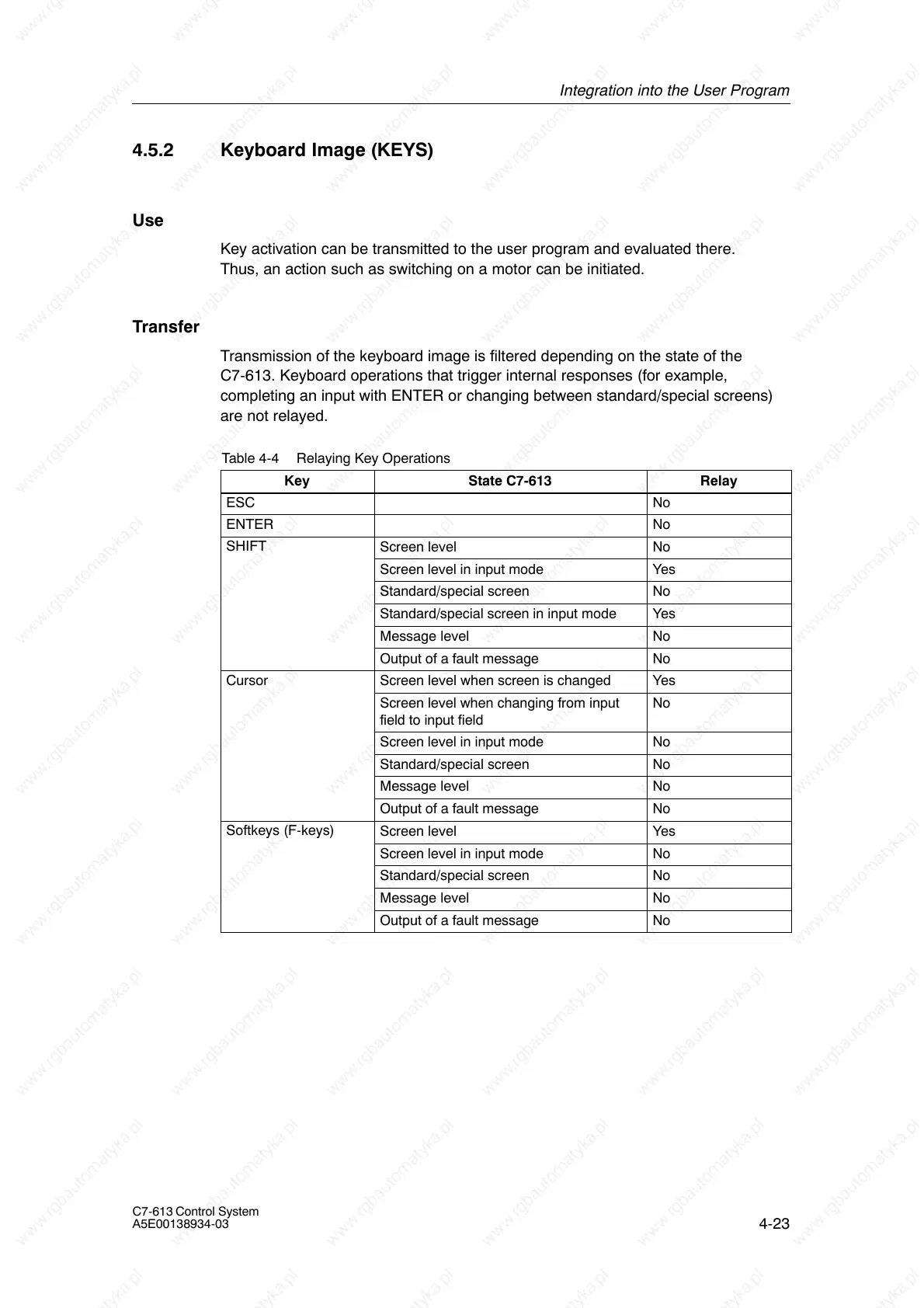

4.5.2 Keyboard Image (KEYS)
Use
Key activation can be transmitted to the user program and evaluated there.
Thus, an action such as switching on a motor can be initiated.
Transfer
Transmission of the keyboard image is filtered depending on the state of the
C7-613. Keyboard operations that trigger internal responses (for example,
completing an input with ENTER or changing between standard/special screens)
are not relayed.
Table 4-4 Relaying Key Operations
Key
State C7-613 Relay
ESC No
ENTER No
SHIFT
Screen level No
Screen level in input mode Yes
Standard/special screen No
Standard/special screen in input mode Yes
Message level No
Output of a fault message No
Cursor
Screen level when screen is changed Yes
Screen level when changing from input
field to input field
No
Screen level in input mode No
Standard/special screen No
Message level No
Output of a fault message No
Softkeys (F-keys)
Screen level Yes
y( y)
Screen level in input mode No
Standard/special screen No
Message level No
Output of a fault message No
