Product overview
1-8
C7-613 Control System
A5E00138934-03

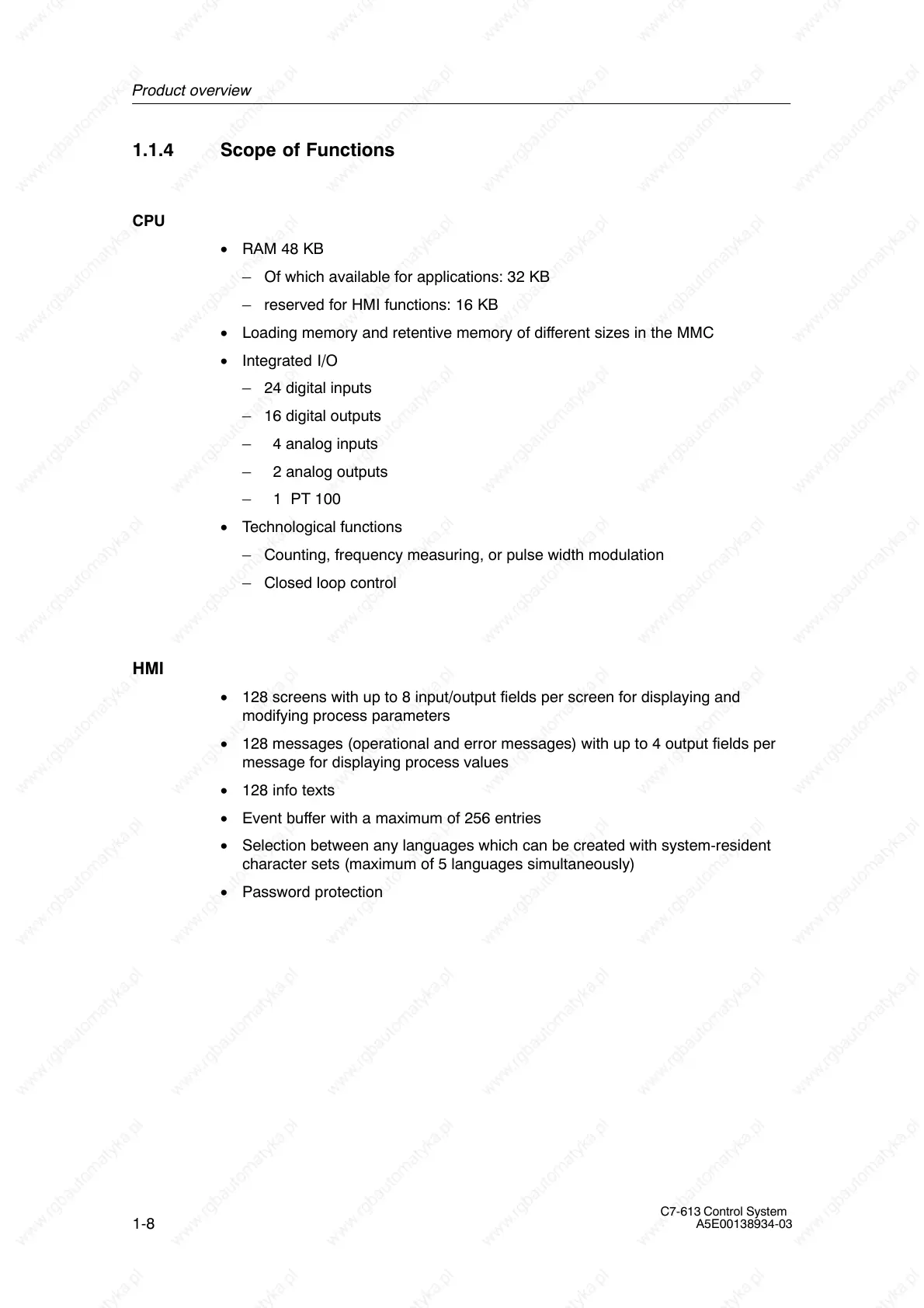

1.1.4 Scope of Functions
CPU
• RAM 48 KB
– Of which available for applications: 32 KB
– reserved for HMI functions: 16 KB
• Loading memory and retentive memory of different sizes in the MMC
• Integrated I/O
– 24 digital inputs
– 16 digital outputs
– 4 analog inputs
– 2 analog outputs
– 1 PT 100
• Technological functions
– Counting, frequency measuring, or pulse width modulation
– Closed loop control
HMI
• 128 screens with up to 8 input/output fields per screen for displaying and
modifying process parameters
• 128 messages (operational and error messages) with up to 4 output fields per
message for displaying process values
• 128 info texts
• Event buffer with a maximum of 256 entries
• Selection between any languages which can be created with system-resident
character sets (maximum of 5 languages simultaneously)
• Password protection
