Siemens SIMODRIVE POSMO A User Manual

5
5.3 Programming the traversing blocks (only in the pos mode, P700 = 2)
5-151
 Siemens AG 2013 All Rights Reserved
SIMODRIVE POSMO A User Manual (POS1) – 08/2013 Edition
5.3.3 Selecting and controlling traversing blocks and programs
The following PROFIBUS signals are available to select and control the
traversing blocks and programs saved in SIMODRIVE POSMO A:
Select block number
(AnwSatz)
Read–in enable/
no read–in enable
(STW.14)
Activate traversing task (edge)
(STW.6)
External block change/
no external block change
(STW.13)
Automatic single block
operation/automatic
(STW.12)
Control signals
Description, refer to Chapter 4.2.1
Status signals
Description, refer to Chapter 4.2.2
Within the traversing block/outside
the traversing block
(ZSW.14)
Drive running/drive stationary
(ZSW.13)
Setpoint/traversing task
acknowledged (edge)
(ZSW.12)
Reference position
reached/outside the ref. position
(ZSW.10)
Actual block number
(AktSatz)
SIMODRIVE
POSMO A
Oper. condition/intermediate stop
(STW.5)
Operating condition/stop
(STW.4)
Following error/
no following error
(ZSW.8)

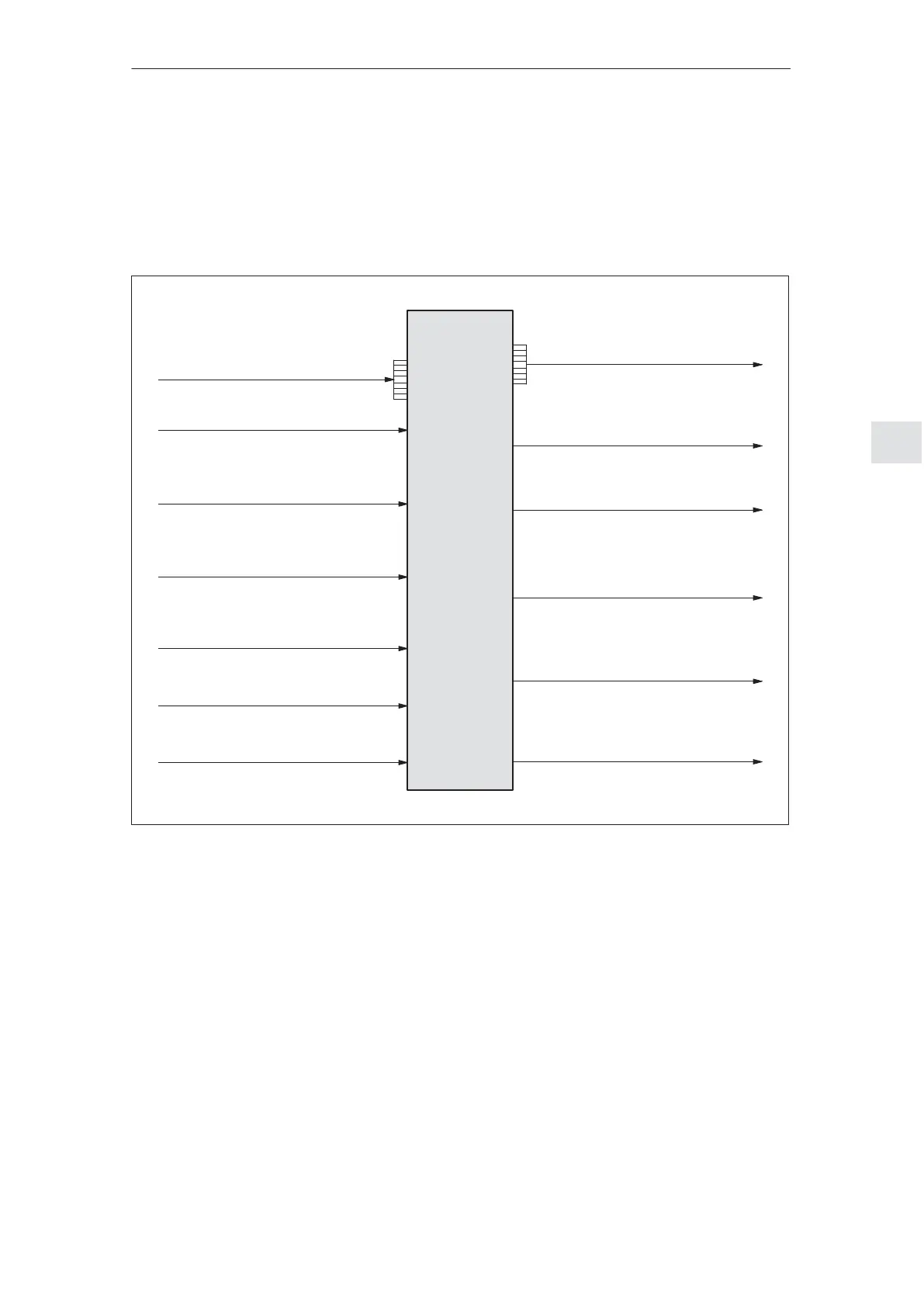

Fig. 5-4 Signals for traversing blocks and programs
Signals for
traversing blocks
and programs
5 Description of the Functions
02.99
