Installing and Connecting–Up
2.1 System overview of SIMODRIVE POSMO A
SIMODRIVE POSMO A positioning motor comprises the following
components:
External 24 V supply
for the electronics
(optional)
Note:
If the electronics are supplied separately
with power, then the power electronics
can be switched on/off independently of
the electronics power supply
(no galvanic isolation).
Control electronics
(PROFIBUS–DP Master)
(e.g. SIMATIC S7–300 DP)
External supply for
S Power electronics (24 V or 48 V)
and
S Electronics (24 V, if there is no dedicated supply)
SITOP power
Regulated power
supply module
(external power
supply)
Checkback signal (e.g. BERO) (optional)
Control signal (e.g. relay) optional
SIMODRIVE POSMO A
Power Management
Module (DC–PMM)
(optional)
Internal pulsed resistor
for braking
PROFIBUS–DP
(Cables, refer to
Chapter 2.3)
Power bus
(Cables, refer to
Chapter 2.3)
Gearboxes
Motor
Electronics
and
power electronics
Connection cover
(removable)
SITOP power
Regulated power
supply module
(external power
supply)
Continues to
the next
PROFIBUS
node
PC/PG
(e.g. PG 740)
Continues to the power supply of the next
SIMODRIVE POSMO A

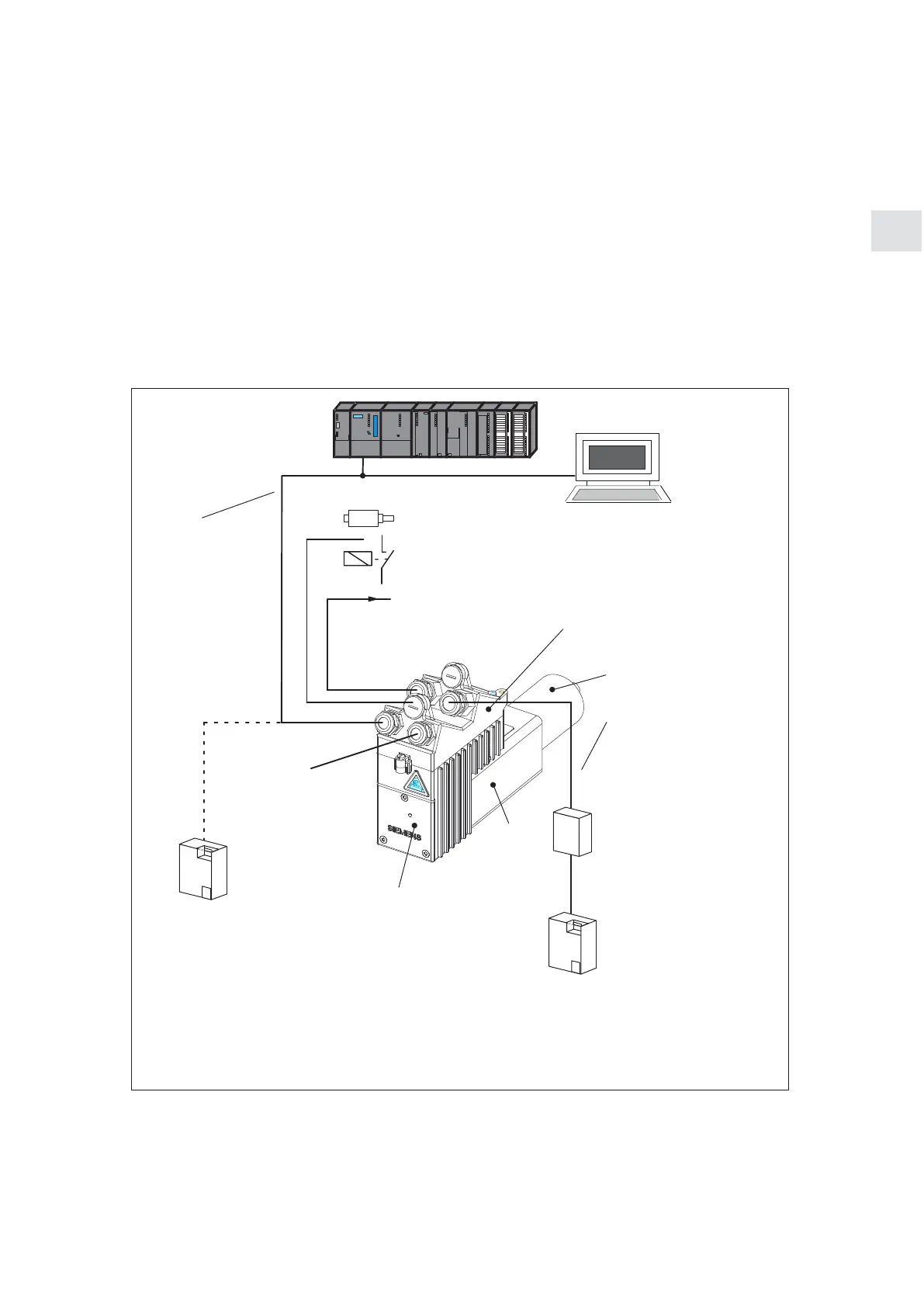

Fig. 2-1 System overview of SIMODRIVE POSMO A
System overview
and components
2
