7.3 Spare parts for SIMODRIVE POSMO A
7-258
E Siemens AG 2013 All Rights Reserved
SIMODRIVE POSMO A User Manual (POS1) – 08/2013 Edition
7.3.2 Drive unit as spare part (only the 300 W motor)
We recommend the following procedure if a drive unit is to replaced:
SW 3
4 (1.0 x 6.5)
Connection cover
Drive unit
Motor
Gearboxes
2 slotted screws
4 self–tapping Allen keys
M4 x 16
2.5 – 3 Nm
not to scale

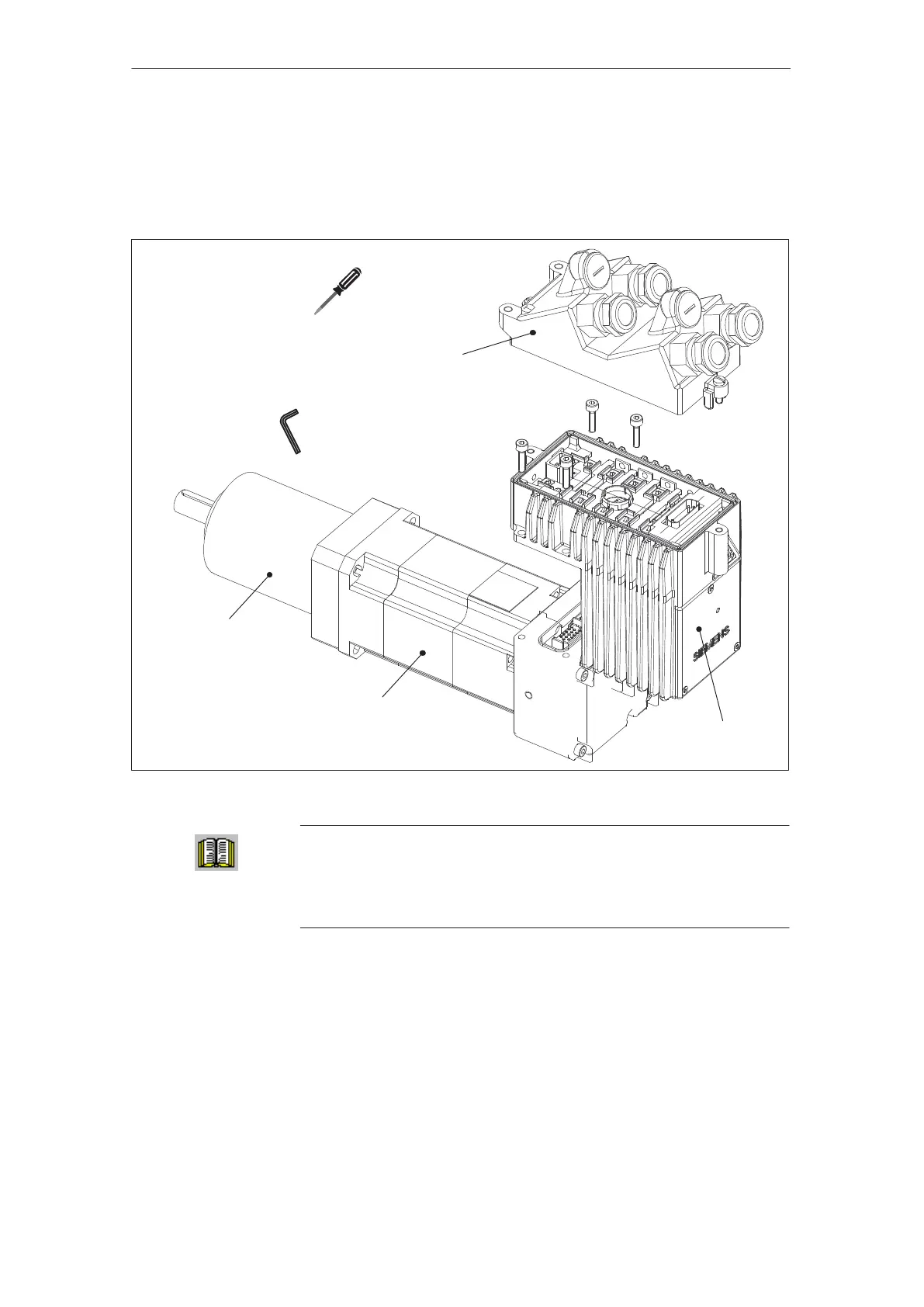

Fig. 7-1 Replacing the drive unit
Reader’s note
Up–to–date and binding information on this subject should be taken
from the documentation provided with the spare parts ”Installation and
mounting instructions, replacing the drive unit”.
The following are required to replace the drive unit:
1. Tools
– Screwdriver Size 4 (1.0 x 6.5)
– Allen key SW 3
2. New drive unit
3. Parameter sets of the old drive unit (save and make available)
Replacing the
drive unit
What is required to
replace the drive
unit?
7 Installation and Service
04.0106.05
