2.6 Technical data
2.6.1 Technical data for SIMODRIVE POSMO A – 75 W

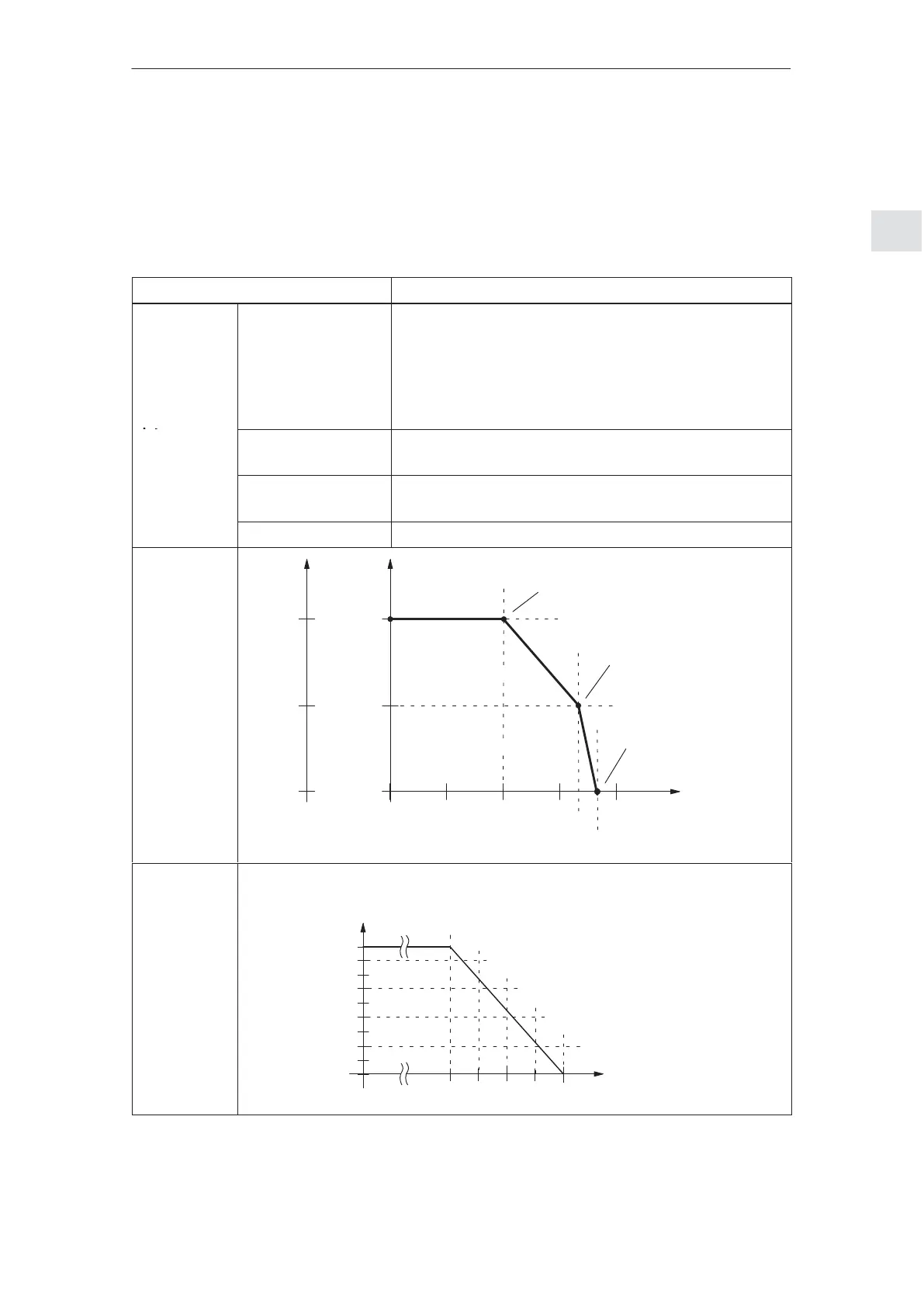

Table 2-6 Technical data for the POSMO A – 75 W positioning motor
Designation
Description
Electrical
data
Load power supply Supply voltage: 24 VDC  20 %
Power consumption: rated:  4.5 A
for 200% overload (S3):  9 A
Note:
The rated output and rated speed are reduced when the 24 V
power supply voltage is fallen below.
Electrical
data
Electr. power supply
(optional)
Voltage: 24 V DC  20 %
Current drain: 250 mA
Digital inputs Voltage: 24 V DC  20 %
Current drain: 15 mA
digital outputs Maximum current/output: 100 mA
Torque/speed
characteristic
motor
M/n
characteristic
Motor without
gearbox
U
IN
= 24 VDC
n
[rev/min]
2000
n
N
= 3300
n
no–load
= 3600
4.5
9
I [A] M [Nm]
0.18
0.36
200% overload
(75 W)
Rated operating point
(62.5 W)
No–load operating point
0
S3 intermittent duty
S1 continuous duty
0 ... 45 °C
up to 65 °C with continuous motor current reduction
Permissible
ambient tem-
perature
I
S1
[A]
ϑ [°C]45
4.5
0
6550
3
2
1
4
55 60
Continuous motor current
reduction as a function of the
ambient temperature
