Inserting an axis
1.
In the Project Navigator, double-click the entry "Axis" > "Insert Axis."
This will access the axis wizard. Set the required technology and then click "OK."

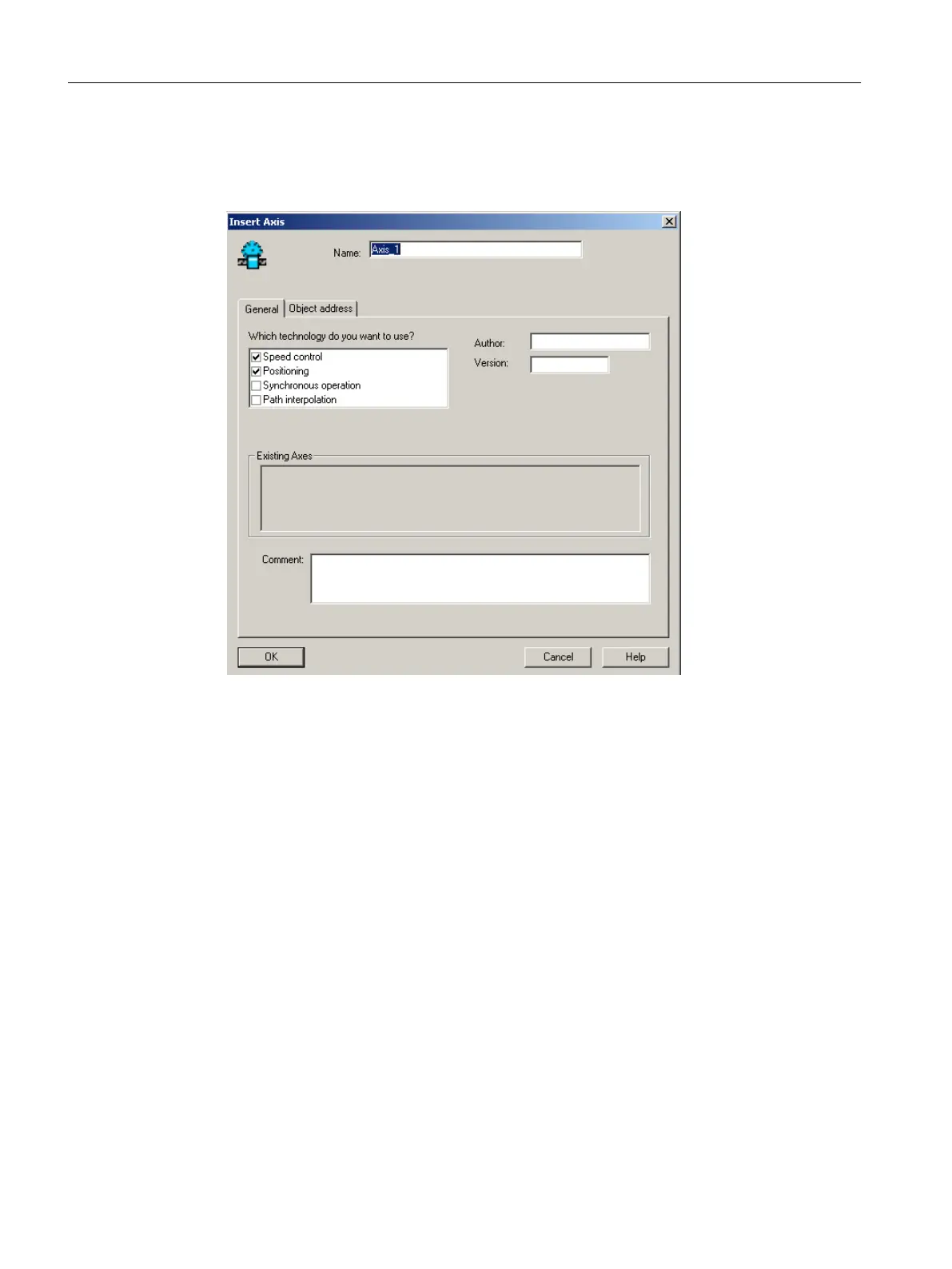

Figure 7-46 Inserting an axis
2. Set an axis type and, if required, configure the units.
Commissioning (software)
7.7 Creating and testing axes
SIMOTION D4x5-2
258 Commissioning and Hardware Installation Manual, 03/2018, A5E33441636B
