Dimension drawing, spare parts, and accessories
12
12.1 Dimension drawing



6,(0(16
6,027,21&


05(6
6723
581

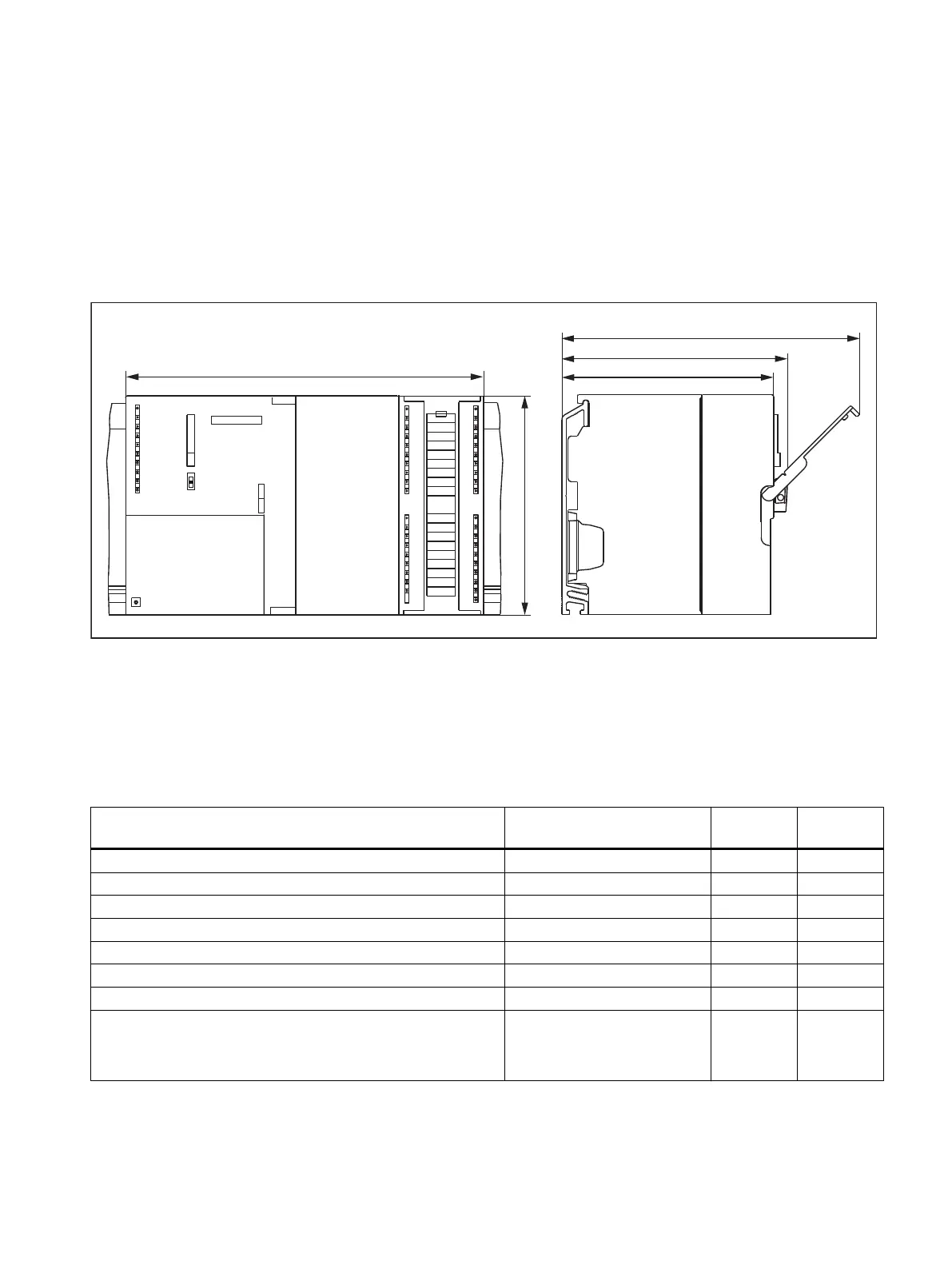

Figure 12-1 SIMOTION C dimension drawing
12.2 Spare parts and accessories
Table 12-1 Spare parts and accessories
Parts for SIMOTION C Article number Accesso‐
ries
Spare parts
Bus connector 6ES7 390-0AA00-0AA0 - X
Connecting comb between power supply and SIMOTION C 6ES7 390-7BA00-0AA0 X -
2 keys for C230-2 (for mode selector) 6ES7 911-0AA00-0AA0 - X
SIMOTION C230-2 micro memory card 6AU1 700-0AA02-0AA0 X -
Micro memory card for SIMOTION C240 / C240 PN 6AU1 720-1KA00-0AA0 X -
Labeling plate (10 items) 6ES7 392-2XX00-0AA0 - X
Slot number plate 6ES7 912-0AA00-0AA0 - X
Front connector, 40-pin
● Screw-type
● Spring-tension type
6ES7 392-1AM00-0AA0
6ES7 392-1BM01-0AA0
X -
SIMOTION C
Operating Instructions, 11/2016, A5E33441428B 173
