Siemens SIMOTION User Manual

Permissible ambient temperature
● Horizontal installation: 0 °C to 55 °C
● Vertical installation: 0 °C to 40 °C
+RUL]RQWDOPRXQWLQJ
9HUWLFDODUUDQJHPHQW
6,027,21&DQGWKHSRZHUVXSSO\DUH
DOZD\VDUUDQJHGWRWKHOHIWRUEHORZ

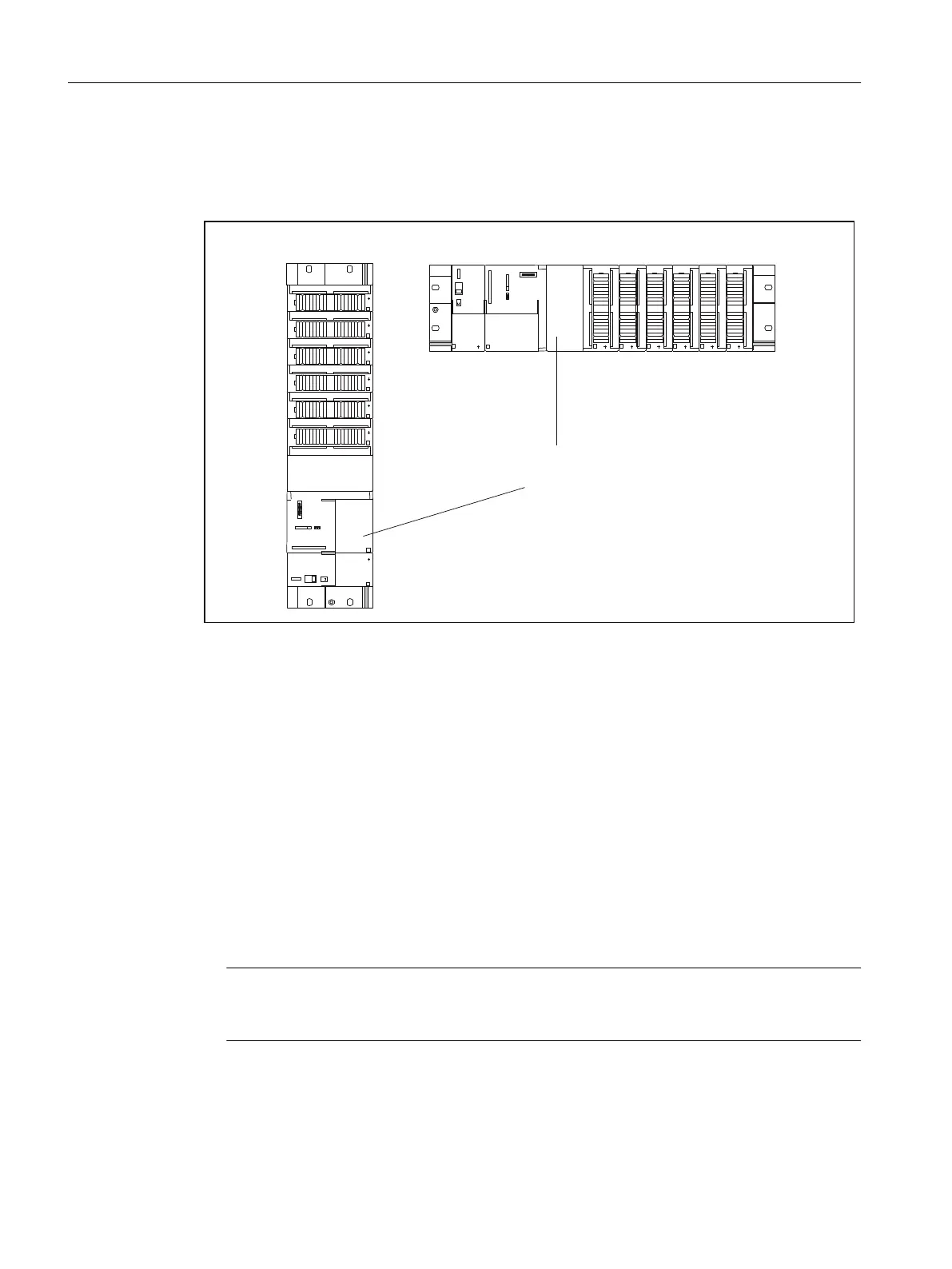

Figure 5-1 Horizontal and vertical configuration
5.2.2 Clearances
Rules
If you comply with the minimum clearances, you will:
● Ensure heat is dissipated from the modules
● Provide space to fit and remove modules
● Provide space to lay wiring
● Increase the mounting height of the rack to 205 mm!
To guarantee the functionality, clearances of 40 mm must be maintained.
Note
If you use a shield connecting element, the dimensions stated are measured from the lower
edge of the shield connecting element.
Configuring and installing
5.2 Configuring an installation using SIMOTION C modules
SIMOTION C
78 Operating Instructions, 11/2016, A5E33441428B
