5.12.2 Setting fail-safe digital inputs
5.12.2.1 Interconnecting a safety function with fail-safe digital input
Preconditions
● You are online with STARTER or Startdrive.
● You have selected the extended functions via onboard terminals.

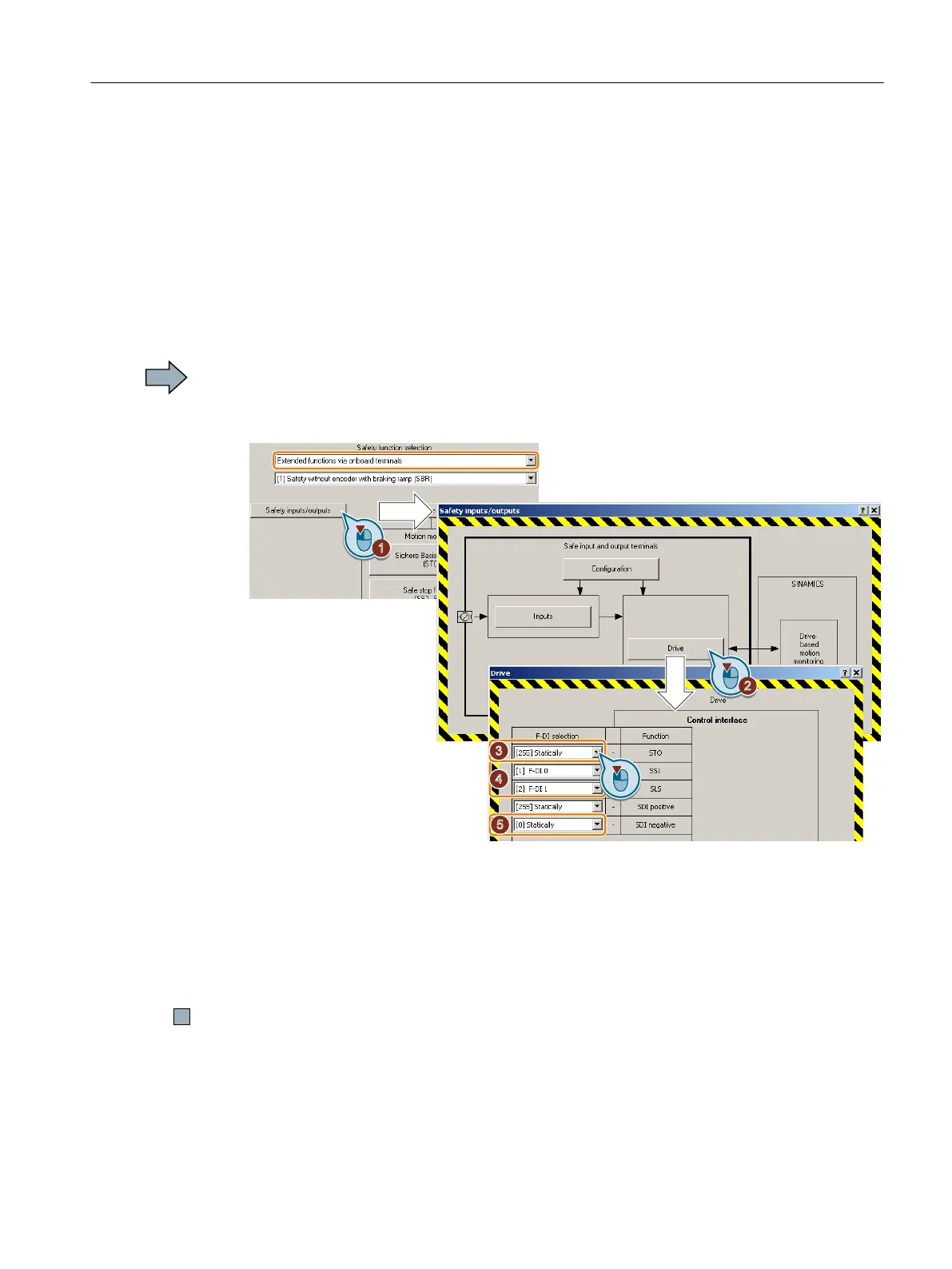

Procedure with STARTER
To interconnect the fail-safe digital inputs with safety functions, proceed as follows:
1. Press the "Safety inputs/outputs" button.
2. Press the "Drive" button.
deselecte
deselecte
selected
3. If you do not use a safety function, then set the associated “Select F-DI" = "[255] statically
deselected“.
4. Interconnect the fail-safe digital inputs with the corresponding safety functions.
5. If a safety function should always be active, set the associated "Select F-DI" = "[0] Statically
active".
6. Close the screen forms.
You have assigned specific safety functions to the fail-safe digital inputs.
Commissioning
5.12 Setting extended functions
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD 155
