A.2.3 SS1 acceptance test (basic functions)

5HDG\
6SHHG
6HWSRLQW
*UHHQRQ
'LDJQRVWLFV
'HVHOHFW66
66DFWLYH
672DFWLYH
2Q<HOORZRQ)ODVKHVVORZO\
&RQWURO
6HOHFW66
212))
216HOHFW66
S
6$)(
5'<
W
W
U
U
/('
W
U
S

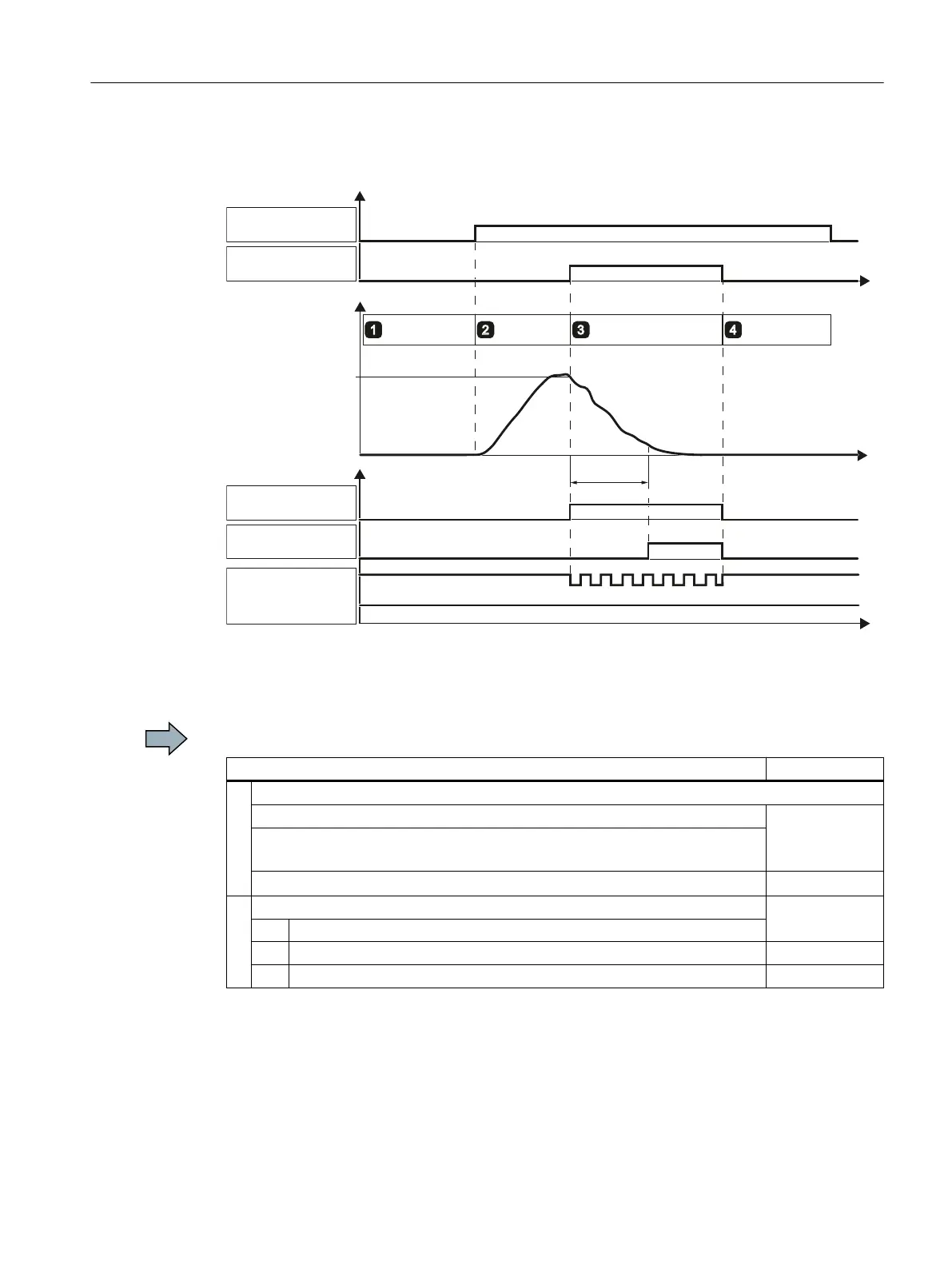

Figure A-3 SS1 acceptance test for basic functions
Procedure
To perform the acceptance test of the SS1 function, proceed as follows:
Status
1. The inverter is ready
Check the following:
● The inverter signals neither faults nor alarms of the safety functions
(r0945[0…7], r2122[0…7]).
● SS1 is not active (r9773.6 = 0).
2. Switch on motor
2.1. Enter a speed setpoint ≠ 0.
2.2. Switch on the motor (ON command).
2.3. Check that the correct motor is running.


Appendix
A.2 Examples of acceptance tests
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD 387
