5.12.2.2 Setting the filter for fail-safe digital inputs
With STARTER: Control via onboard terminals
Preconditions
● You are online with STARTER.
● You have selected the extended functions via onboard terminals.
Procedure
To set the filters for the fail-safe digital inputs, proceed as follows:

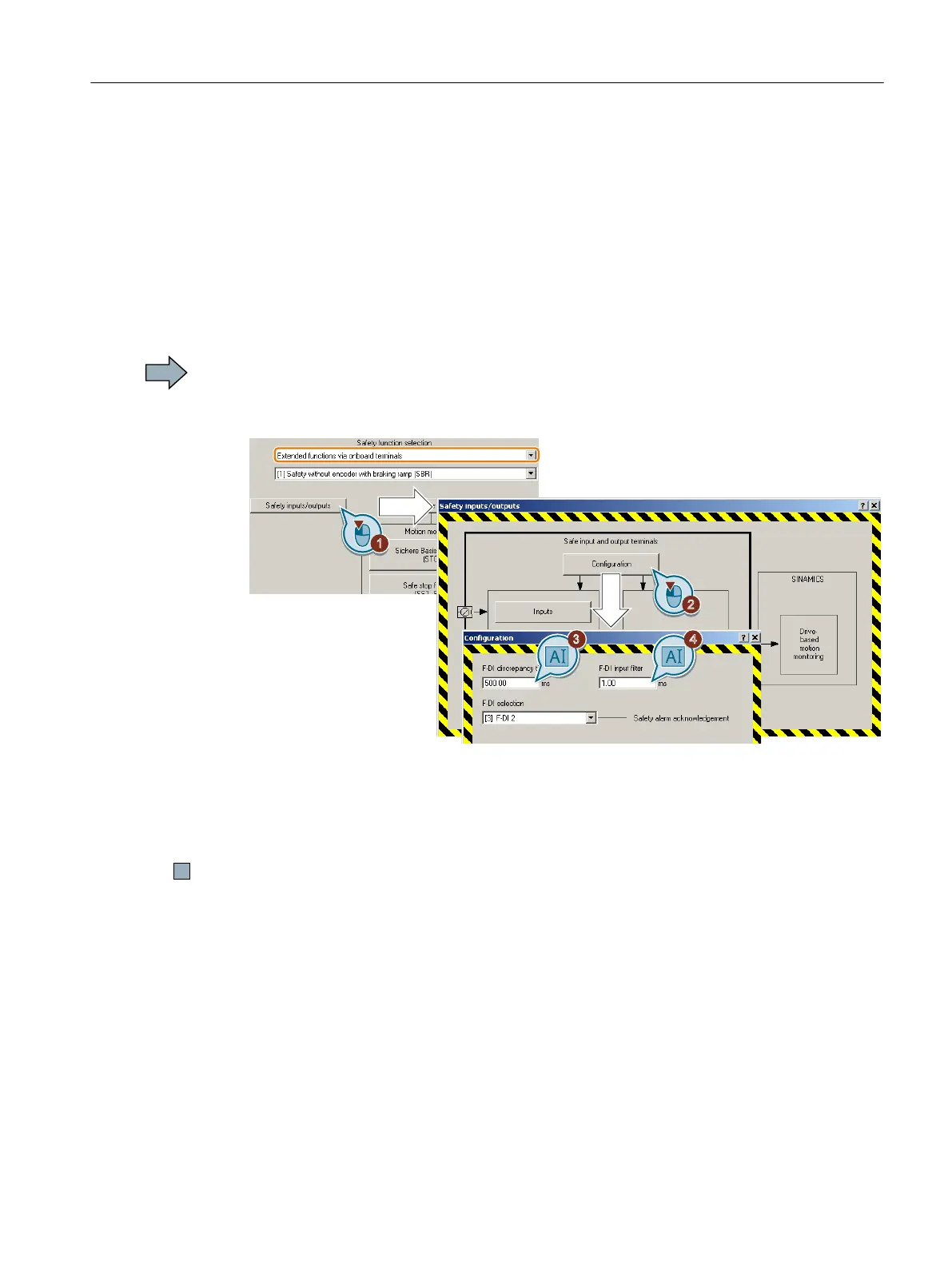

1. Press the "Safety inputs/outputs" button.
2. Press the "Configuration" button.
3. The discrepancy time (simultaneity monitoring) tolerates signal changes at the fail-safe
digital input that do not occur simultaneously.
4. The input filter suppresses brief signal changes.
5. Close the screen forms.
You have set the filter for the fail-safe digital inputs.
With STARTER: Control via PROFIsafe and onboard terminals
Preconditions
● You are online with STARTER.
● You have selected the extended functions via PROFIsafe and onboard terminals.
Commissioning
