Siemens SINAMICS G120C Function Manual

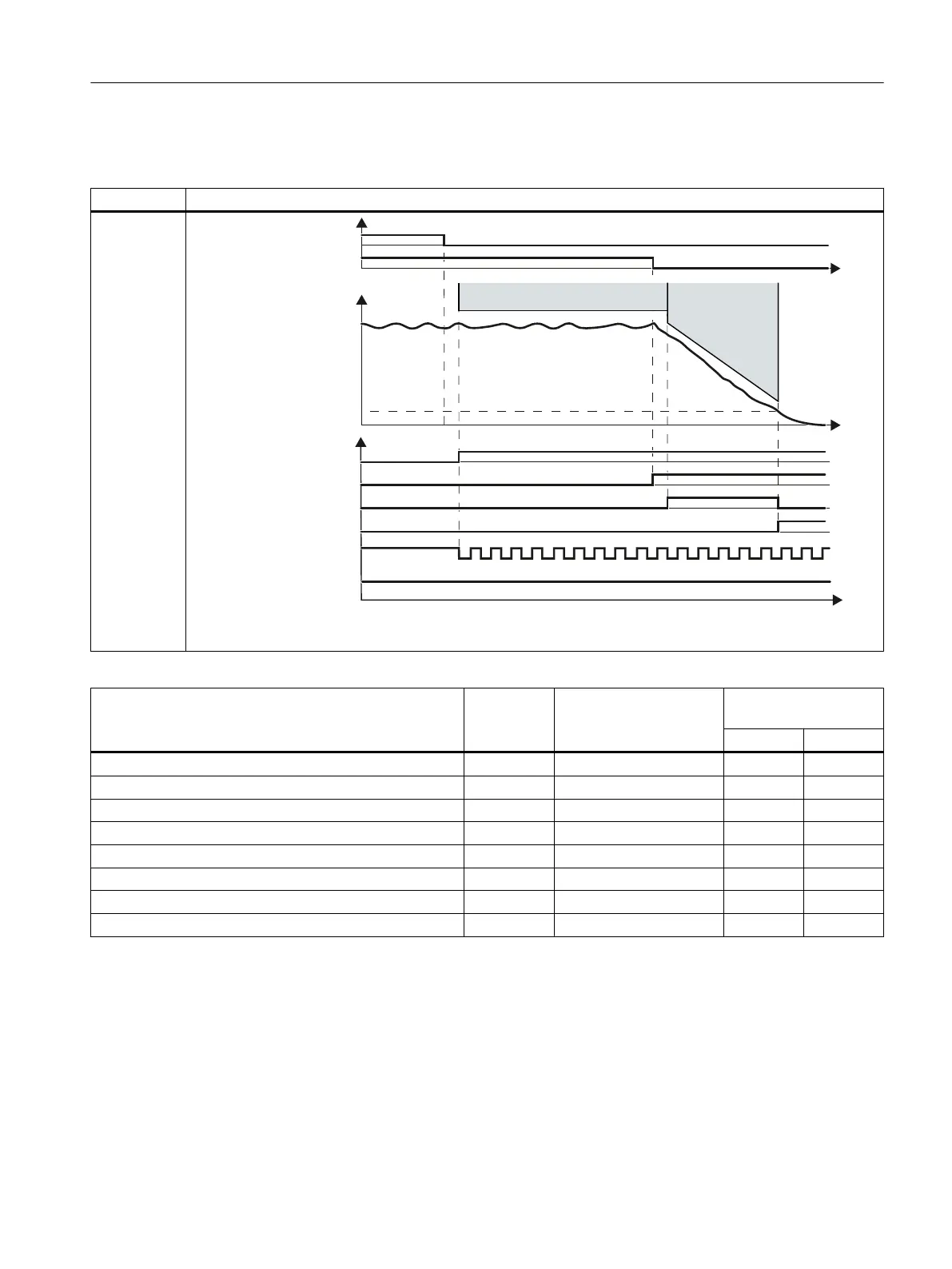

6.12.5 Selecting SS1 when SLS is active
Select SS1
SLS is active
6SHHG
*UHHQRQ
6/6DFWLYH
<HOORZRQ<HOORZIODVKHVVORZO\
6$06%5DFWLYH
66DFWLYH
672DFWLYH
'HVHOHFW66
'HVHOHFW6/6
6KXWGRZQVSHHG
6/66%5
W
W
W
/('5'<
/('6$)(
Example: SS1 with braking ramp monitoring
Inverter signals Parameter Included in the PROFI‐
safe telegram
Can be interconnected
with
F-DI F-DO
STO active (extended functions) r9722.0 ✓ --- ✓
SS1 active (basic functions) r9773.6 ✓ --- ✓
Deselect SS1 (basic functions) r9773.5 ✓ ✓ ---
SS1 active (extended functions) r9722.1 ✓ --- ✓
Deselect SS1 (extended functions) r9720.1 ✓ ✓ ---
SLS active r9722.4 ✓ --- ✓
Deselect SLS r9720.4 ✓ ✓ ---
SAM/SBR active r9723.16 --- --- ---
Operation
6.12 Selecting safety function when a safety function is active
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD 309
