Siemens SINAMICS G120C Function Manual

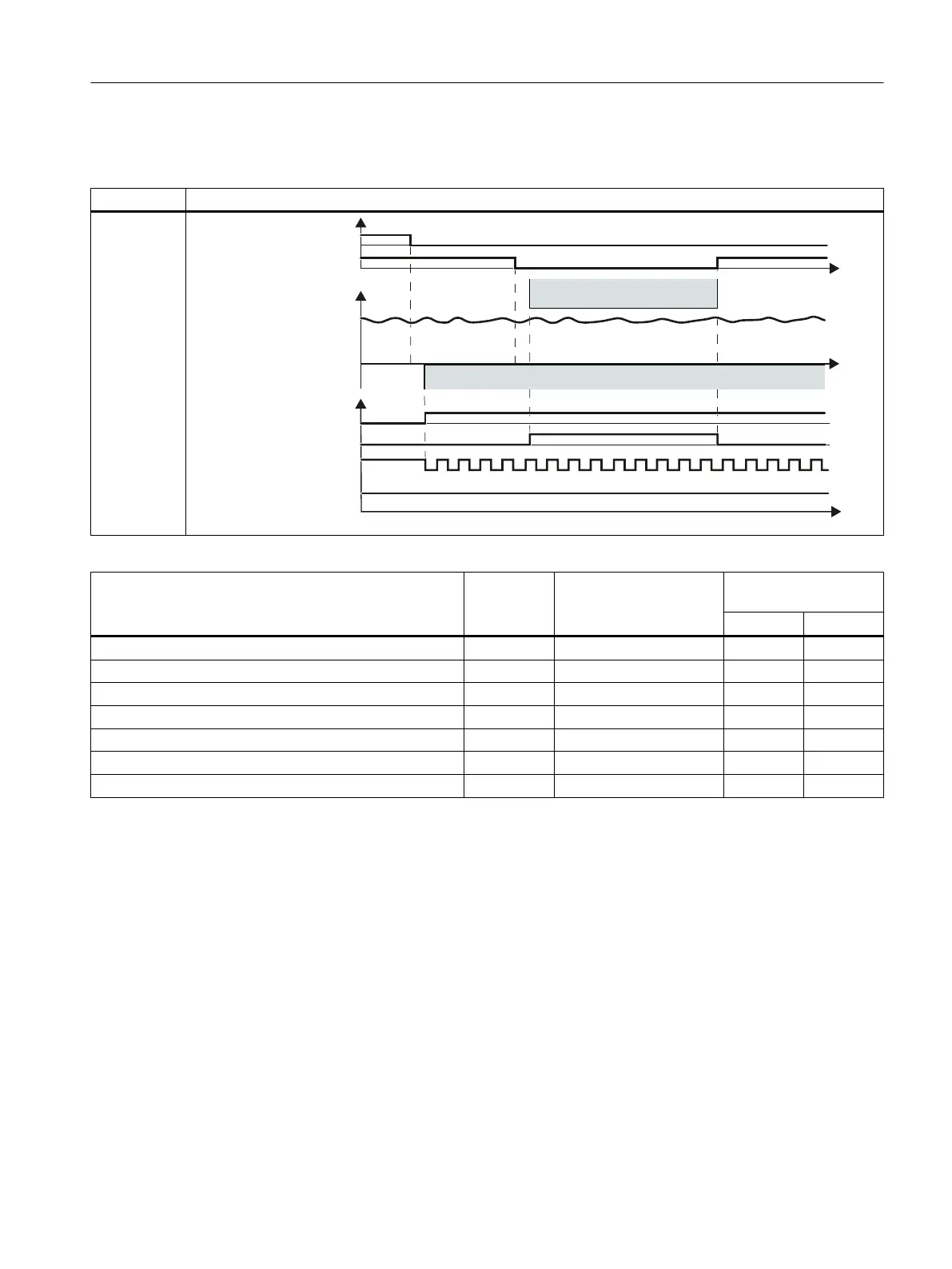

6.12.8 Selecting SLS when SDI is active
Select SLS
SDI is active
6SHHG
*UHHQRQ
<HOORZRQ<HOORZIODVKHVVORZO\
6',DFWLYH
6/6DFWLYH
'HVHOHFW6/6
'HVHOHFW6',
6',
6/6
W
W
W
/('5'<
/('6$)(
Inverter signals Parameter Included in the PROFI‐
safe telegram
Can be interconnected
with
F-DI F-DO
SLS active r9722.4 ✓ --- ✓
Deselect SLS r9720.4 ✓ ✓ ---
SSM feedback signal active (speed below limit value) r9722.15 ✓ --- ✓
SDI+ active r9722.12 ✓ --- ✓
SDI+ deselect r9720.12 ✓ ✓ ---
SDI- active r9722.13 ✓ --- ✓
Deselect SDI- r9720.13 ✓ ✓ ---
Operation
6.12 Selecting safety function when a safety function is active
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD 313
