In the alarm bu󹪜er, the alarms are sorted according to "Alarm time received". If the alarm
bu󹪜er is completely 󹪝lled and an additional alarm occurs, then the converter overwrites the
values with Index[7].
Alarm history
$ODUPEXIIHU
,QFRPLQJDODUPZKHQDODUPEXIIHULV
FRPSOHWHO\IXOO
$ODUPKLVWRU\
5HPRYHGDODUP
2OG
1HZ
1HZ
2OG
$ODUPWLPHUHFHLYHG
>@
>@
>@
>@
>@
>@
>@
>@
>@
>@
>@
>@
>@

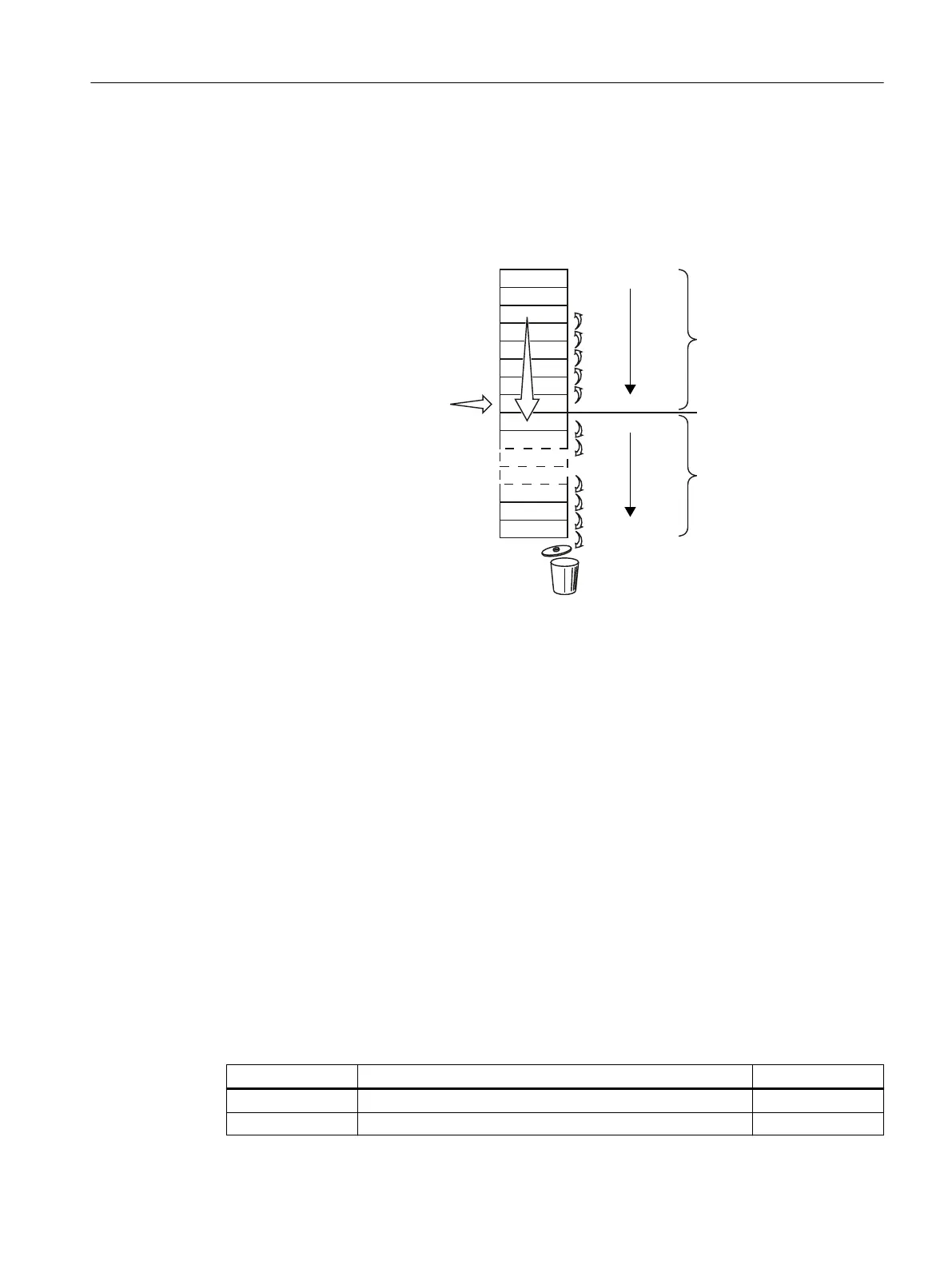

Figure9-2 Shifting removed alarms into the alarm history
If the alarm bu󹪜er is completely 󹪝lled and an additional alarm occurs, the converter shifts all
removed alarms into the alarm history. The following occurs in detail:
1. To create space after position [8] in the alarm history, the converter shifts the alarms already
stored in the alarm history "down" by one or more positions.
If the alarm history is completely full, the converter will delete the oldest alarms.
2. The converter moves the removed alarms from the alarm bu󹪜er to the now freed up positions
of the alarm history.
Alarms that have not been removed remain in the alarm bu󹪜er.
3. The converter closes gaps in the alarm bu󹪜er that occurred when the removed alarms were
shifted in the alarm history by shifting the alarms that have not been removed "up".
4. The converter saves the received alarm as the latest alarm in the alarm bu󹪜er.
The alarm history saves up to 56 alarms.
In the alarm history, alarms are sorted according to the "alarm time removed". The latest
alarm to be removed has Index [8].
Parameter
Parameters of the alarm bu󹪜er and the alarm history
Parameter Description Factory setting
p2111 Alarm counter 0
r2122[0…63] Alarm code -
Alarms, faults and system messages
9.3Alarms, alarm bu󹪜er, and alarm history
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 367
