Mounting on a standard mounting rail (TS35)
PP
You can mount converters, frame
size FSAA on a TS 35 standard mount‐
ing rail.
Procedure
1. Mount the converter on the top edge of the mounting rail.
2. Using a screwdriver, actuate the release button on the upper side of the converter.
3. Continue to actuate the release button until the converter audibly snaps onto the mounting
rail.






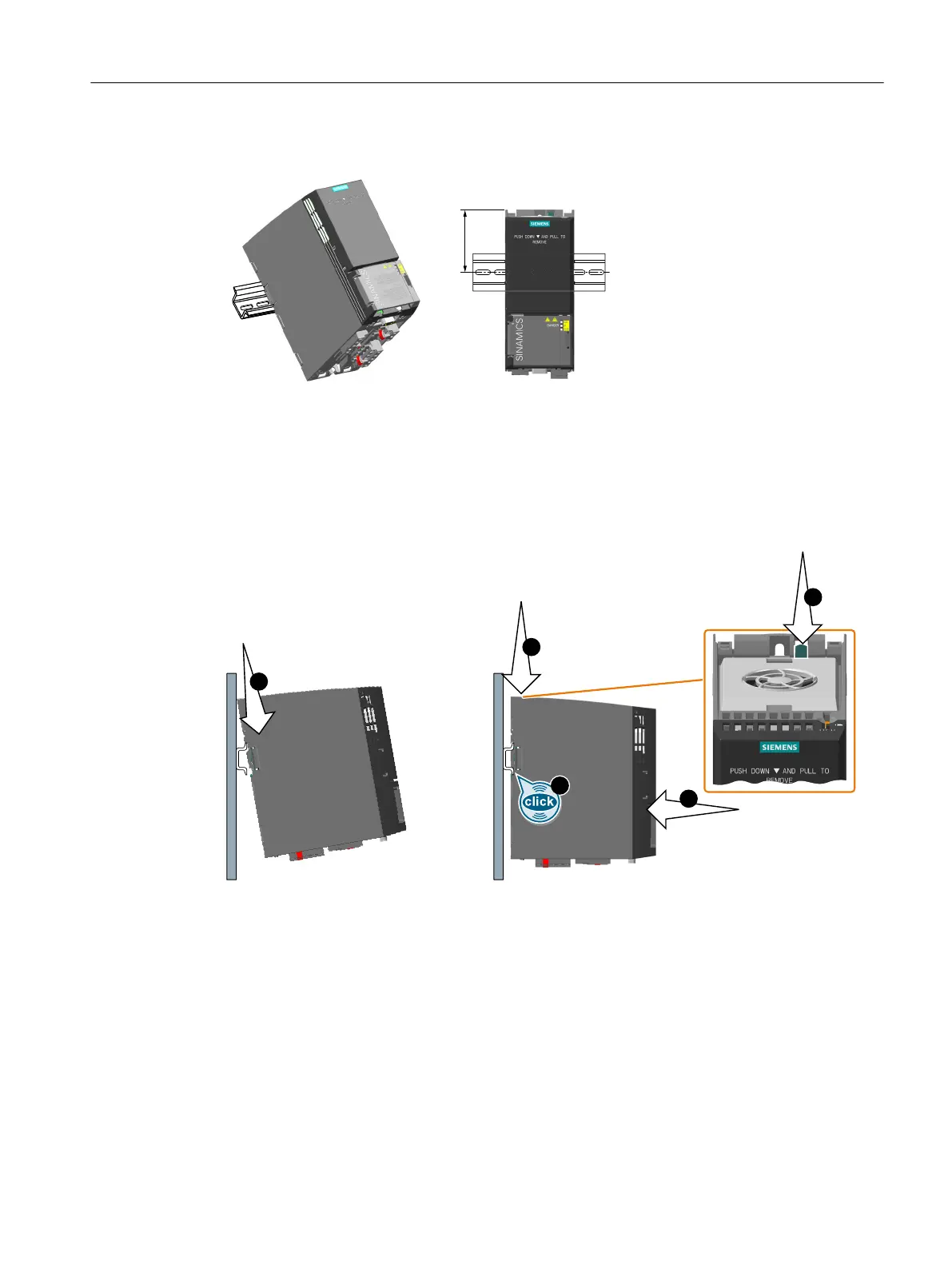

Figure4-17 Mounting on a standard mounting rail
You have mounted the converter on the mounting rail.
❒
To remove, actuate the release button and at the same time withdraw the converter from the
mounting rail.
Installing
4.4Mounting the converter
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 55
