Switch S2
6
+++

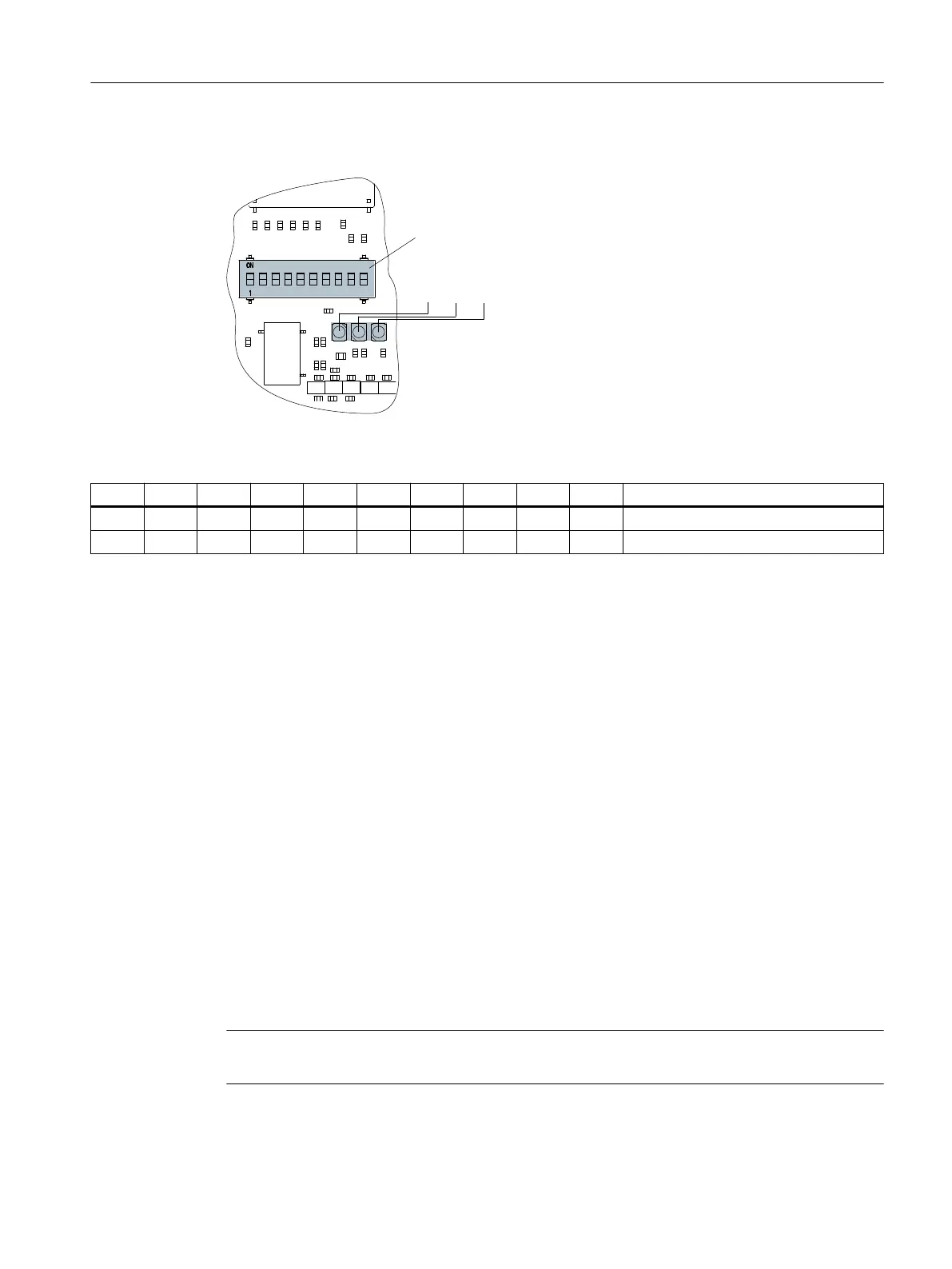

Figure 4-15 Switch S2
Switch S2 defines the IP address of the machine control panel:
1 2 3 4 5 6 7 8 9 10 Device name
ON ON ON
OFF OFF OFF OFF OFF OFF OFF PROFINET address "64"
For SINUMERIK 828D, the IP address = 192.168.214.64 must always be assigned to the MCP.
4.5.12 This is how you replace the rotary switch
Overview
For MCP 310C PN and MCP 483C PN machine control panels, you can replace a defective
rotary switch by a new one. The following rotary switches are installed in the machine control
panels:
● Rotary switch for the spindle control, rotary switch with 16 positions
● Rotary switch for the feedrate control, rotary switch with 23 positions
The activities that must be taken into account when replacing a rotary switch are subsequently
described.
Preconditions when replacing a rotary switch:
● The rotary switch is defective and must be replaced.
● The system is in a no voltage condition.
Note
For the machine control panel, use only electronic rotary switches.
Service cases - hardware
4.5 Machine control panels
Software and hardware
Service Manual, 08/2018, 6FC5397-5DP40-6BA1 107
