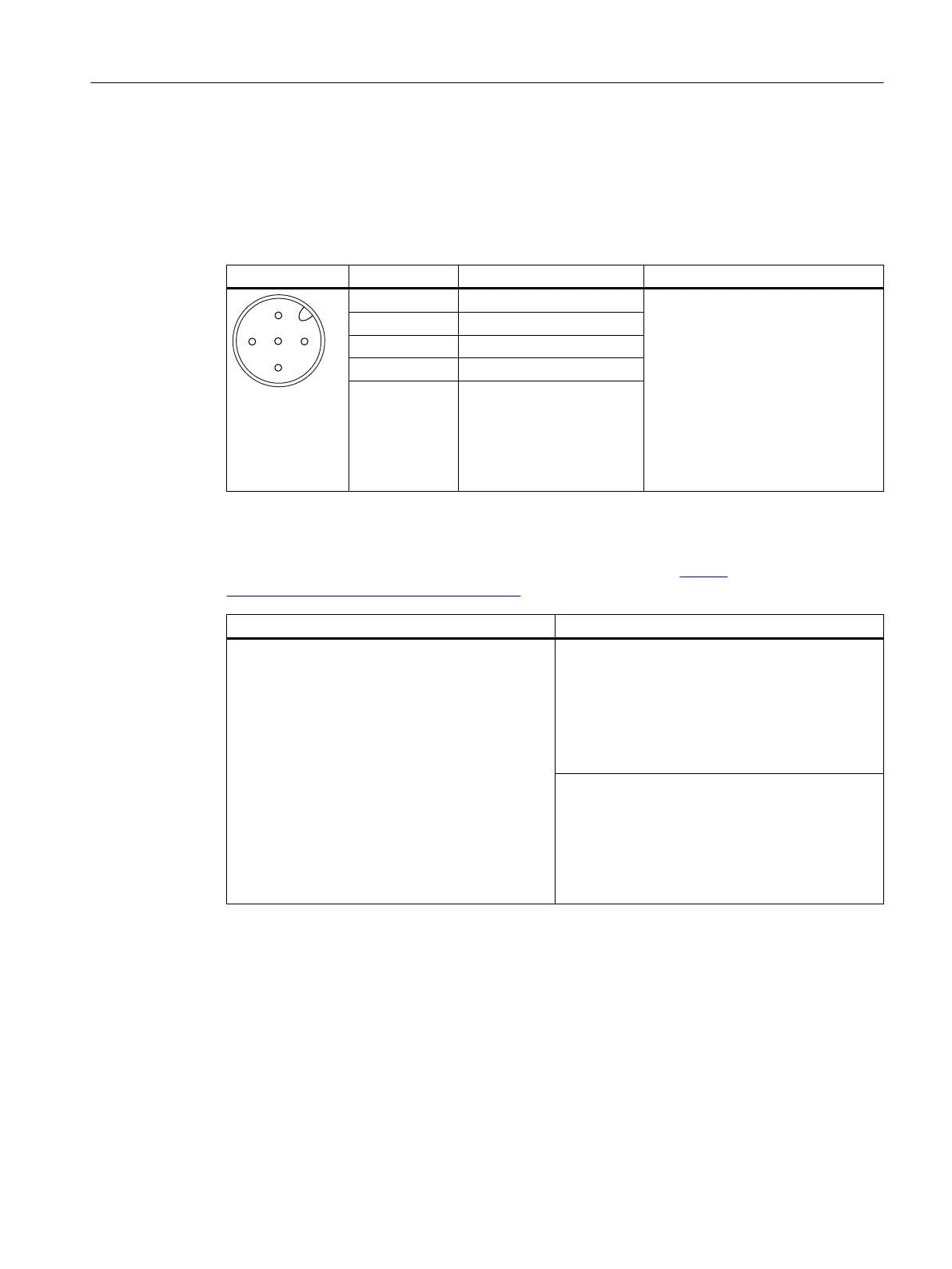

4.19.7 Connection to X524 electronics power supply
Secondary conditions for DMC20 with UL approval
Pin assignment of the cable for connection to X524:
Pin Designation Technical specifications
1 (brown) Electronics power supply The supply voltage of 20.4 V – 28.8
V refers to the terminal voltage at the
DME20.
The cable cross-section and the
power supply cable length should be
observed:
● Pins 1 and 2 are internally
jumpered.
● Pins 3 and 4 are internally
jumpered.
2 (white) Electronics power supply
3 (black) Electronics ground
4 (blue) Electronics ground
5 (gray) Not connected
Address where the cables can be sourced
The following cables can be sourced through: Phoenix Contact (https://
www.phoenixcontact.com/online/portal/pc)
Pre-assembled cables Cables to be assembled by the user
Sensor/actuator cable, 5-pole, free cable end at
the M12-SPEEDCON straight socket
Length of cable: 2, 5, 10, 15 m (up to 100 m on
request)
SAC-5P-xxx-186/FS SCO
Cable ring, PUR/PVC black, 5-pole
Conductor colors: brown/white/blue/black/gray
Cable length: 100 m
Conductor cross-section: 5 x 0.75 mm²
SAC-5P-100.0-186/0.75
Article number: 1535590
Connector:
Sensor/actuator connector, socket, straight, 5-pin,
M12, A-coded
Screw connection, metal knurl, Pg9 cable gland
SACC-M12FS-5CON-PG9-M
Article number: 1681486
Service cases - hardware
4.19 Hub Modules
Software and hardware
Service Manual, 08/2018, 6FC5397-5DP40-6BA1 233
