4.18.7 TM120 connections
Connections
3URWHFWLYHFRQGXFWRU
FRQQHFWLRQ0bbb1P
6KLHOGFRQWDFW
;
;
5'<
;
;
X500, X501 DRIVE-CLiQ interfaces
RDY LEDs for status display
X521 Inputs for the temperature sensor
X524 Electronics power supply

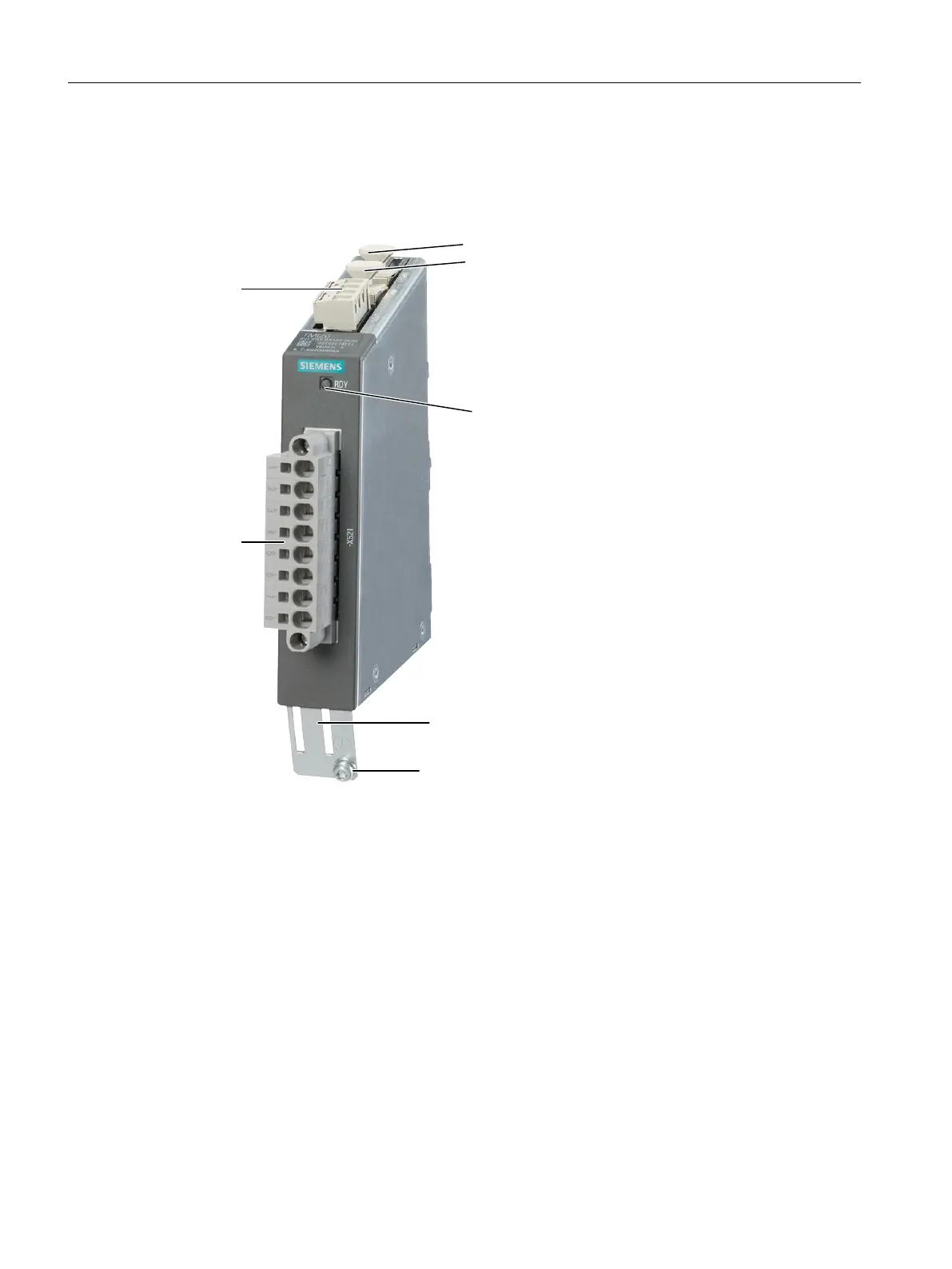

Figure 4-64 TM120 connections
Service cases - hardware
4.18 Terminal Modules
Software and hardware
226 Service Manual, 08/2018, 6FC5397-5DP40-6BA1
