4.16.10 SMC40 connections
Connections
3URWHFWLYHFRQGXFWRU
FRQQHFWLRQ
01P
5'<
;
;
;
;
;
X500/1,
X500/2
DRIVE-CLiQ
X520/1,
X520/2
Encoder system interfaces with multifunction LED per channel
X524 Electronics power supply

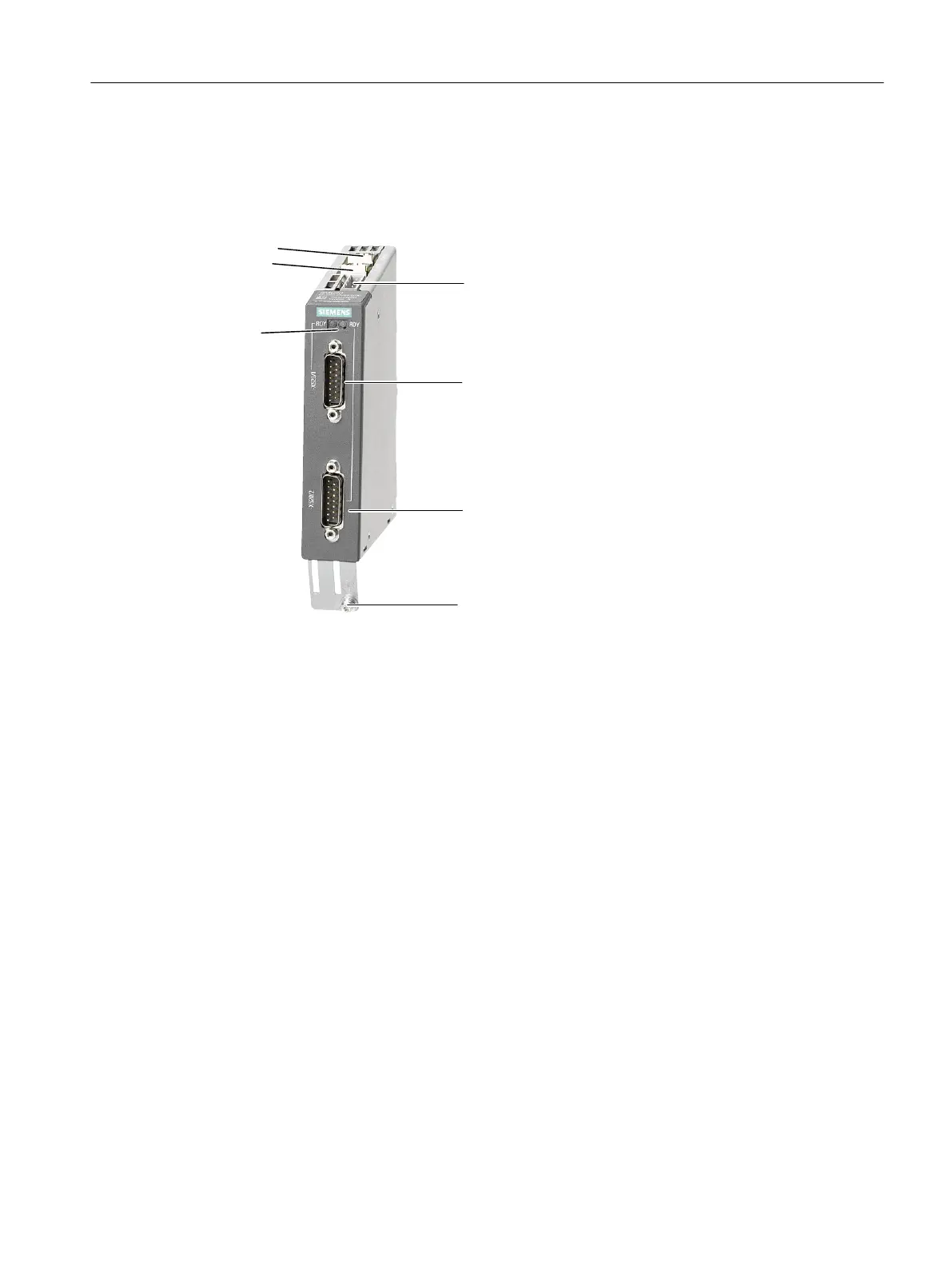

Figure 4-55 Connections SMC40
4.16.11 This is how you remove an SMC40
Overview
The activities that must be taken into account when replacing an SMC40 are subsequently
described.
If an SMC40 has a hardware defect, then it must be replaced by an identical module.
Preconditions:
● The module is defective and must be replaced.
● The control cabinet is in a no-voltage condition, all of the connectors and cables are labeled.
Service cases - hardware
4.16 Sensor Modules Cabinet
Software and hardware
Service Manual, 08/2018, 6FC5397-5DP40-6BA1 211
