4.10.11 This is how you install the internal fan
Installing a new internal fan
Procedure:

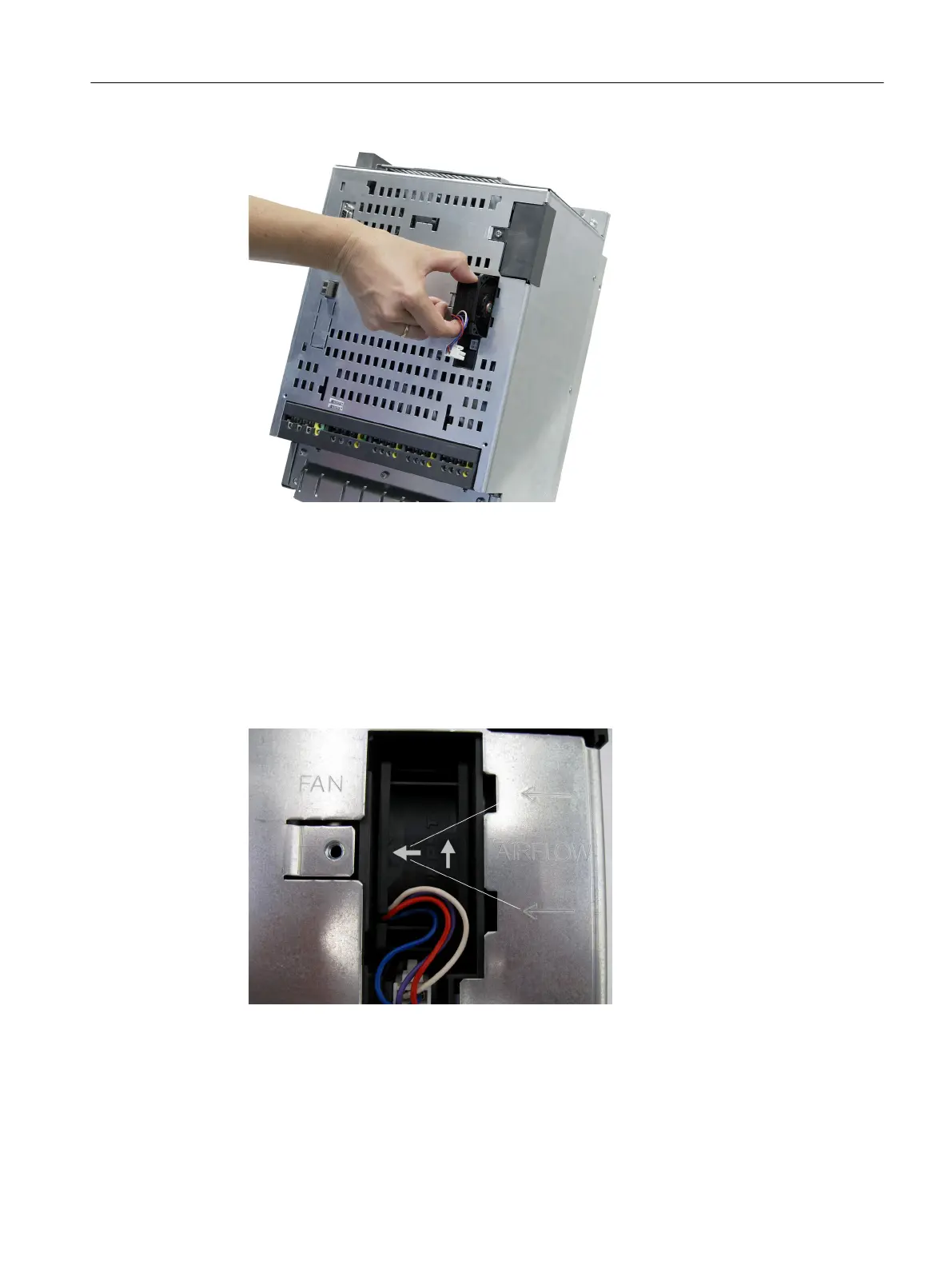

1. Before installing the fan, note the direction of the airflow:
The arrows on the fan must match the following diagram!
The arrows on the fan show the direction of the airflow.
2. Insert the fan: The connecting cables must not be crushed!
3. Insert the plug connector: The connector must audibly click into place.
4. Close the fan cover.
