Installing
5.3 Rack-mounted device
Quick Start
Compact Operating Instructions, 05/2018, A5E31805656-06
35
Installing the rack-mounted device
Dimension drawing

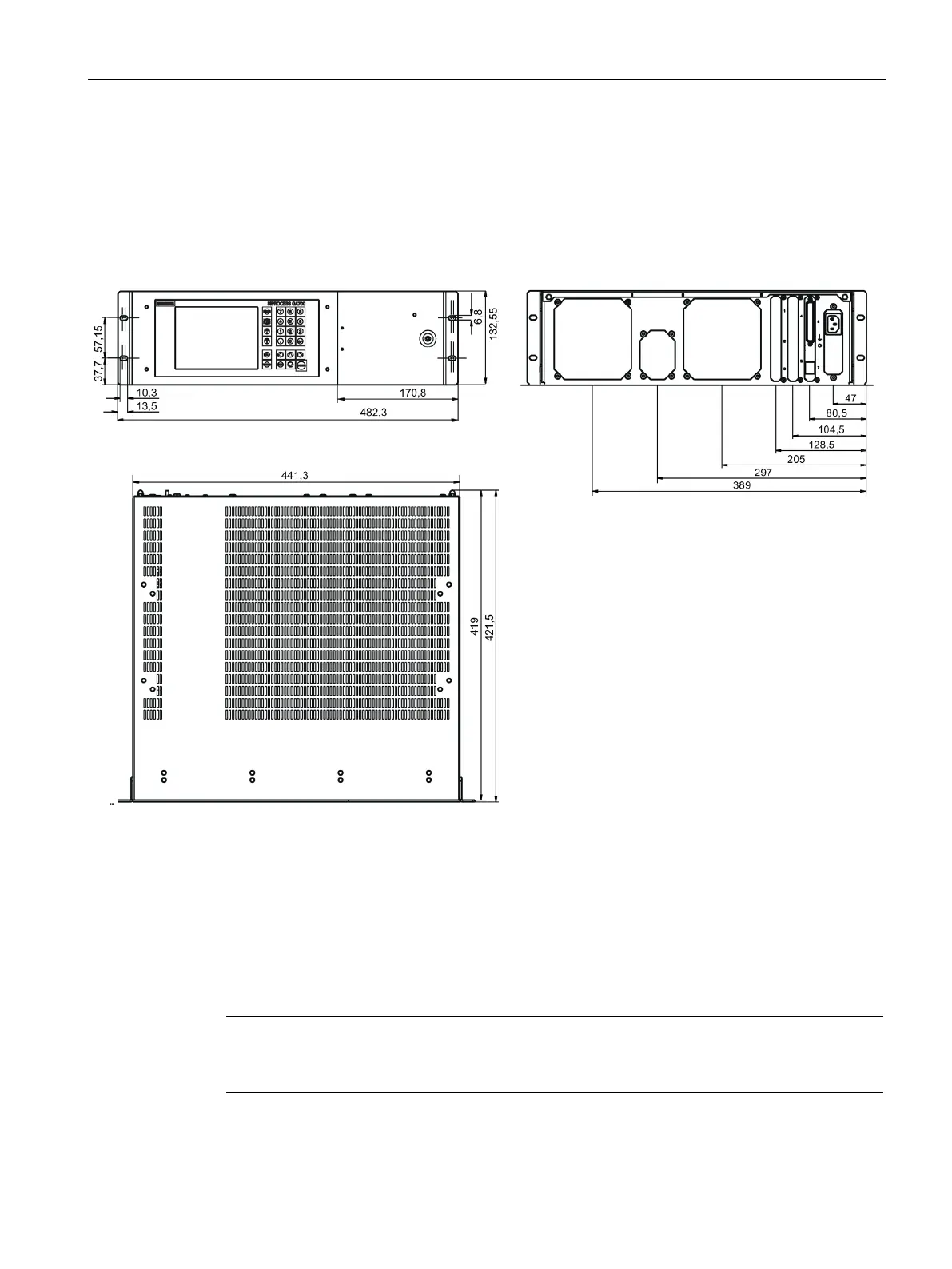

The following figure shows the dimensions of the rack-mounted device and the distance of
the fastening holes at the mounting brackets. The dimensions are specified in millimeters.
Figure 5-1 Dimension drawing
1. Place the rack unit in the control cabinet or the enclosure.
2. Fasten the rack-mounted device in the control cabinet or enclosure with four screws at its
mounting brackets.
The dimensions for the drill holes are specified in the dimension drawing.
Note
As an option, you can place the rack
-mounted device on a guide bracket or floor panel in a
