Siemens SIPROCESS GA700 Quick Start

Connecting
6.1 Gas connections
Quick Start
Compact Operating Instructions, 05/2018, A5E31805656-06
43
6.1.4
Gas connections for rack device/wall-mounted device
6.1.4.1
OXYMAT 7

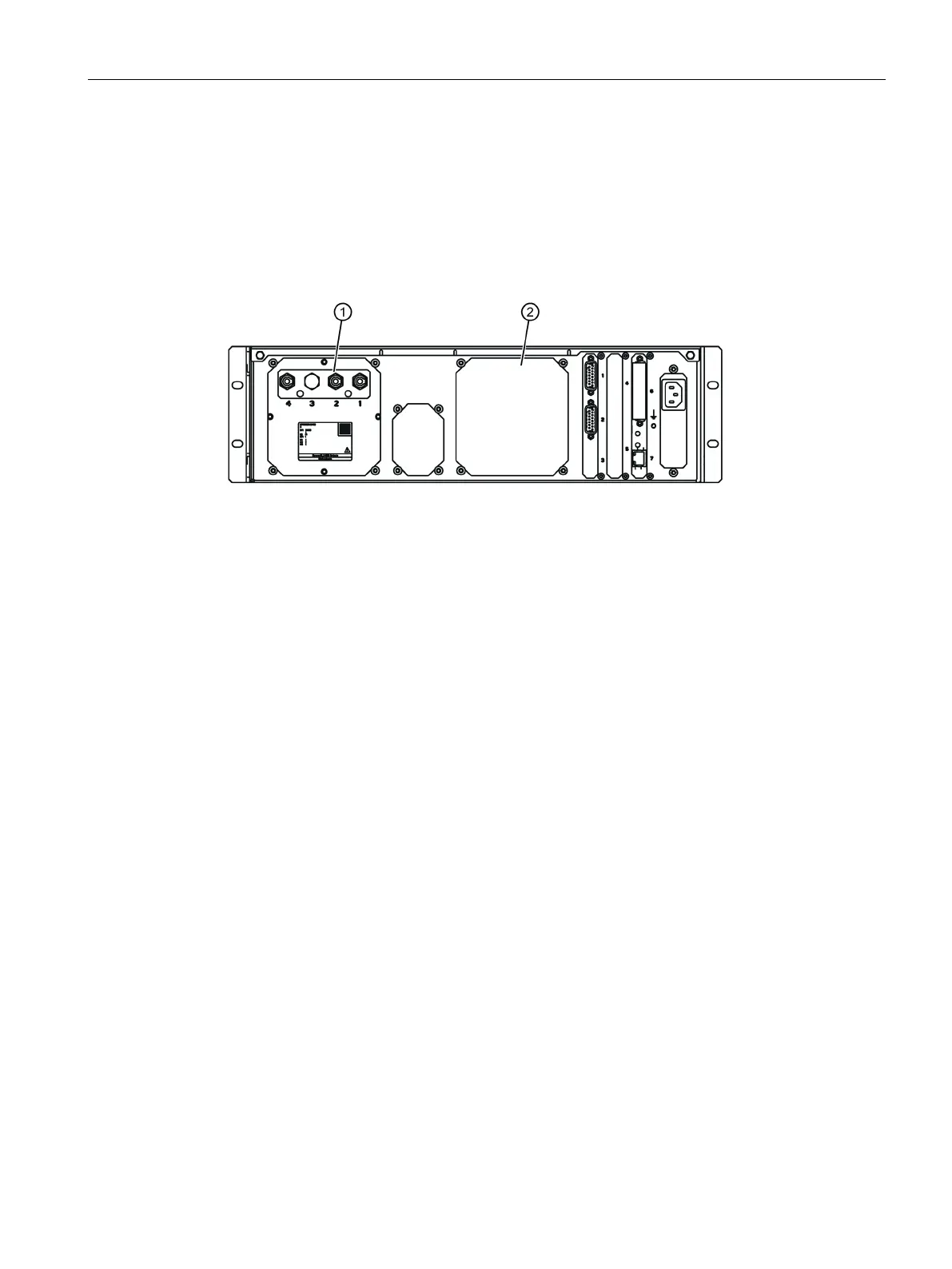

Arrangement of the gas connections in the rack-mounted device
①
Slot of analyzer module 1: OXYMAT 7
②
Slot of analyzer module 2
1
Sample gas inlet
2
Sample gas outlet
3
Not assigned, bypass outlet for version with external reference gas pump
4
Reference gas inlet
Figure 6-1 OXYMAT 7 gas connections in the rack unit, rear
