5.4 Wall-mounted device
36
Quick Start
Compact Operating Instructions, 05/2018, A5E31805656-06
5.4
Wall-mounted device
5.4.1
Device-specific safety instructions
5.4.2
Installing the wall-mounted device

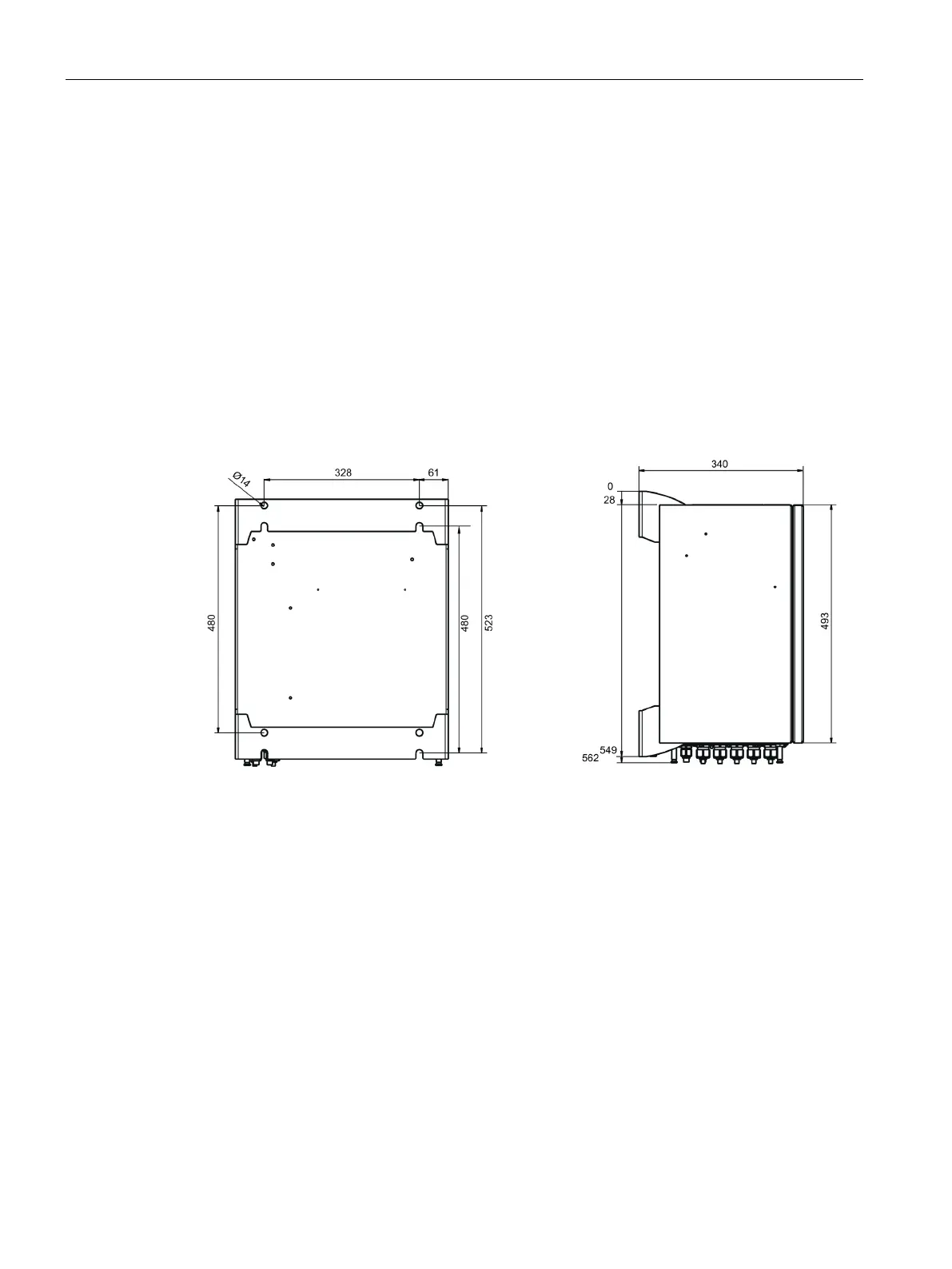

Dimension drawing
The following figure shows the dimensions of the wall-mounted device and the distance of
the fastening holes. The dimensions are specified in millimeters.
Figure 5-2 Drilling template and side view
