Siemens SIPROCESS GA700 Quick Start

Commissioning
7.5 Checking gas paths for leaks
80
Quick Start
Compact Operating Instructions, 05/2018, A5E31805656-06
Checking for leaks
1. Perform a leak test with air or nitrogen (test gas) at the operating temperature.
2. Determine the leak rate in accordance with the pressure drop method. To do this monitor
the pressure of the gas (air or nitrogen) enclosed in the gas line for a defined period. T
he
s
ize of the pressure drop is a measure of the tightness of the gas line.
For the exact procedure, refer to the sections:
● OXYMAT 7 (Page 81)
● ULTRAMAT 7 (Page 82)
● CALOMAT 7 (Page 83)
7.5.2
Recommended test setup
Arrangement of the gas connections

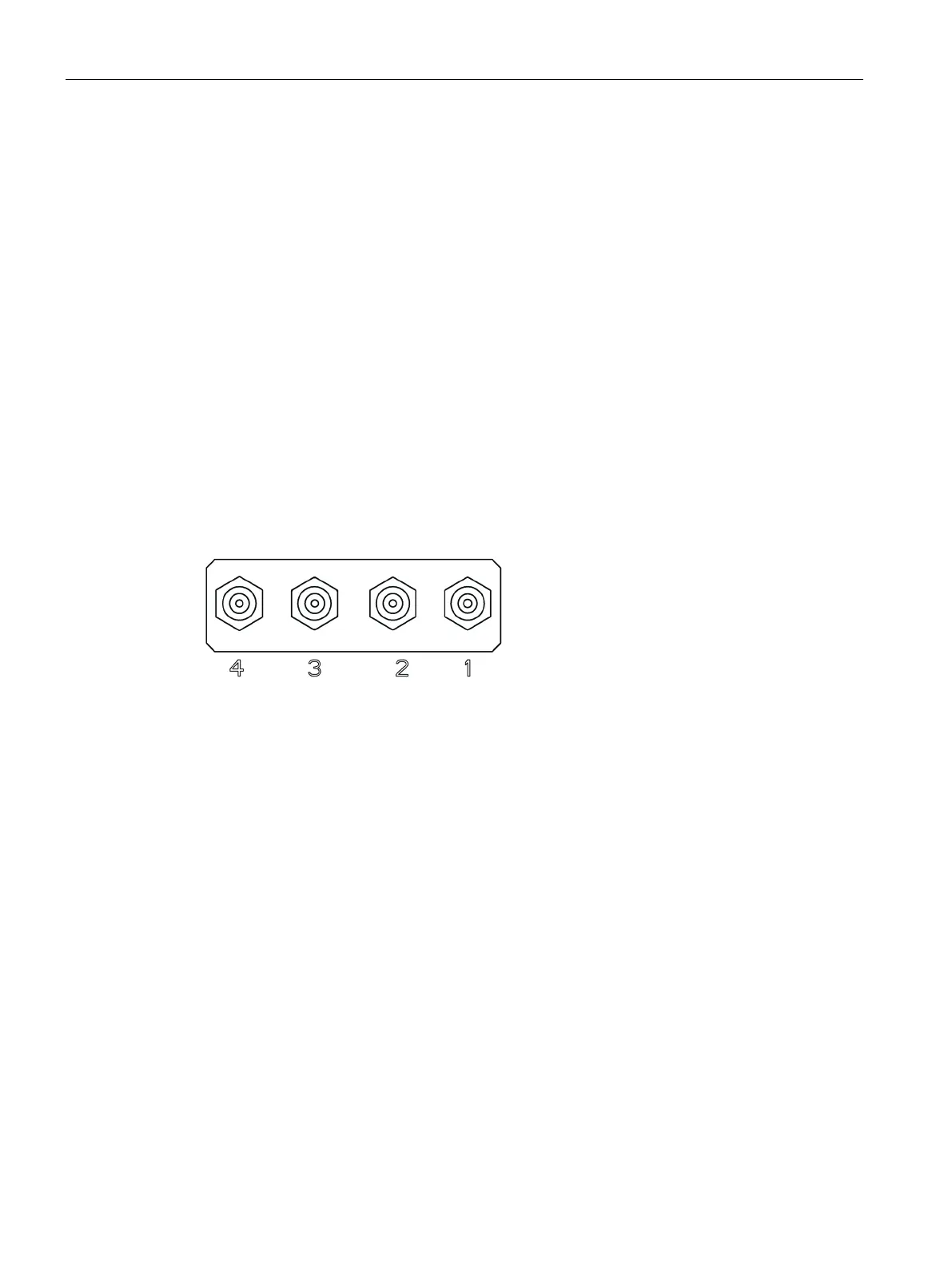

The figure below is a schematic view of the gas connections:
1
Sample gas inlet
2
Sample gas outlet
3 ULTRAMAT 7: Reference gas outlet
OXYMAT 7 / CALOMAT 7: Not assigned, screw-type blank cap
4 OXYMAT 7 / ULTRAMAT 7: Reference gas inlet
CALOMAT 7: Not assigned, screw-type blank cap
Figure 7-1 Arrangement of the gas connections
