Operators Tools
7-217SJ62 Manual
C53000-G1140-C121-1

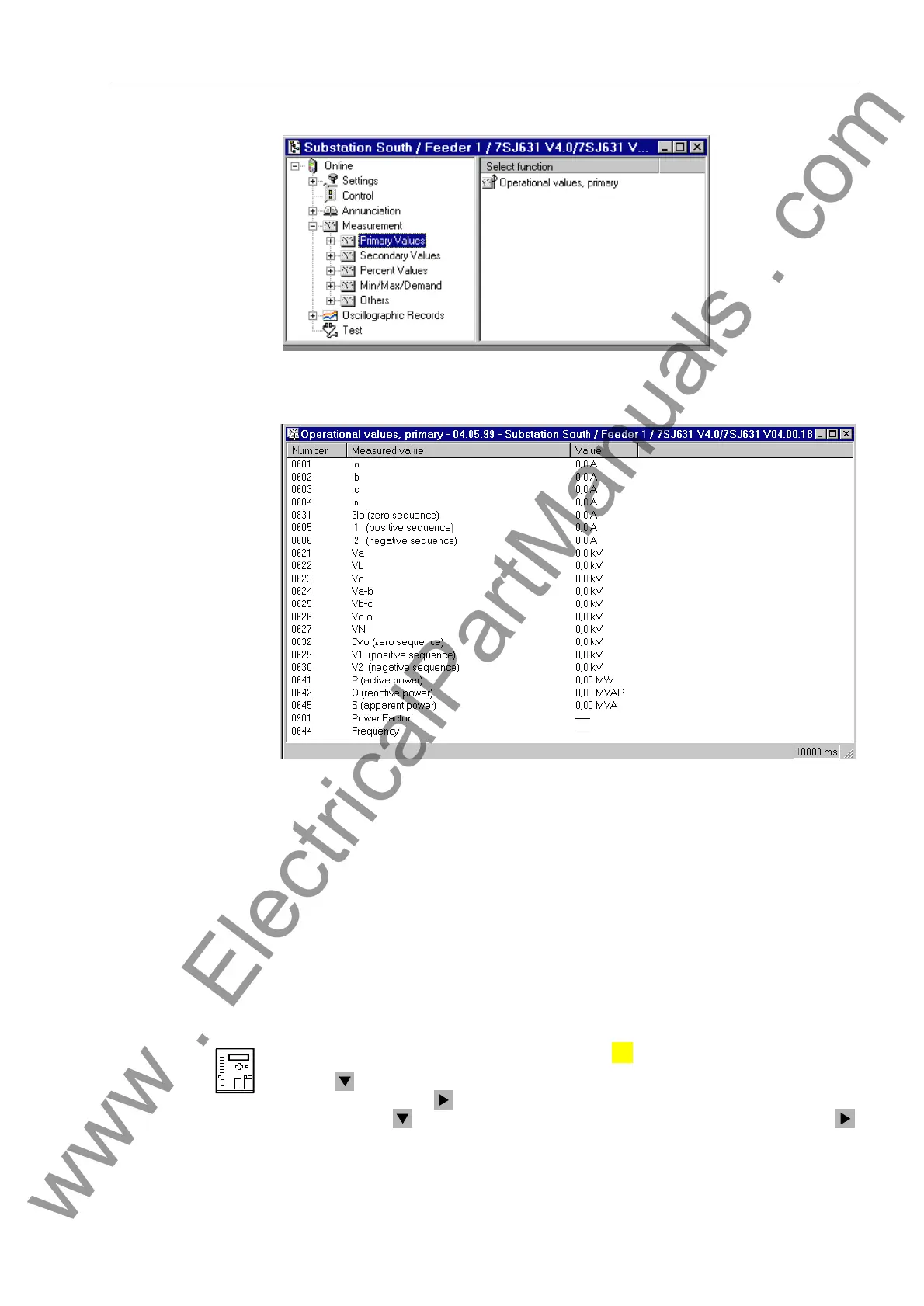

Figure 7-24 Measured Values Window in DIGSI
®
4
Figure 7-25
Example of Measured Values shown in DIGSI
®
4
7.1.3.2 Energy, Metered Values
Retrieving of
Metered Values
In a 7SJ62 device with the maximum configuration, counters are available that sum
the real and reactive energy (:S, :T) separately, according to reporting and recording
of the real energy and capacitive and inductive reactive energy, in the direction of the
protected object. This assumes that this direction is set as “forwards” (Address ,
see Sub-section 6.1).
From the
Device Front
With a device ready for operation, first press the key. The 0$,10(18 appears.
Use the key to select the menu item 0HDVXUHPHQW, and switch to the list of mea-
sured values using the key. The 0($685(0(17 selection appears. Select the item
(QHUJ\ with the key and switch to the table of energy measurements using the
key.
MENU
