Dimension drawings

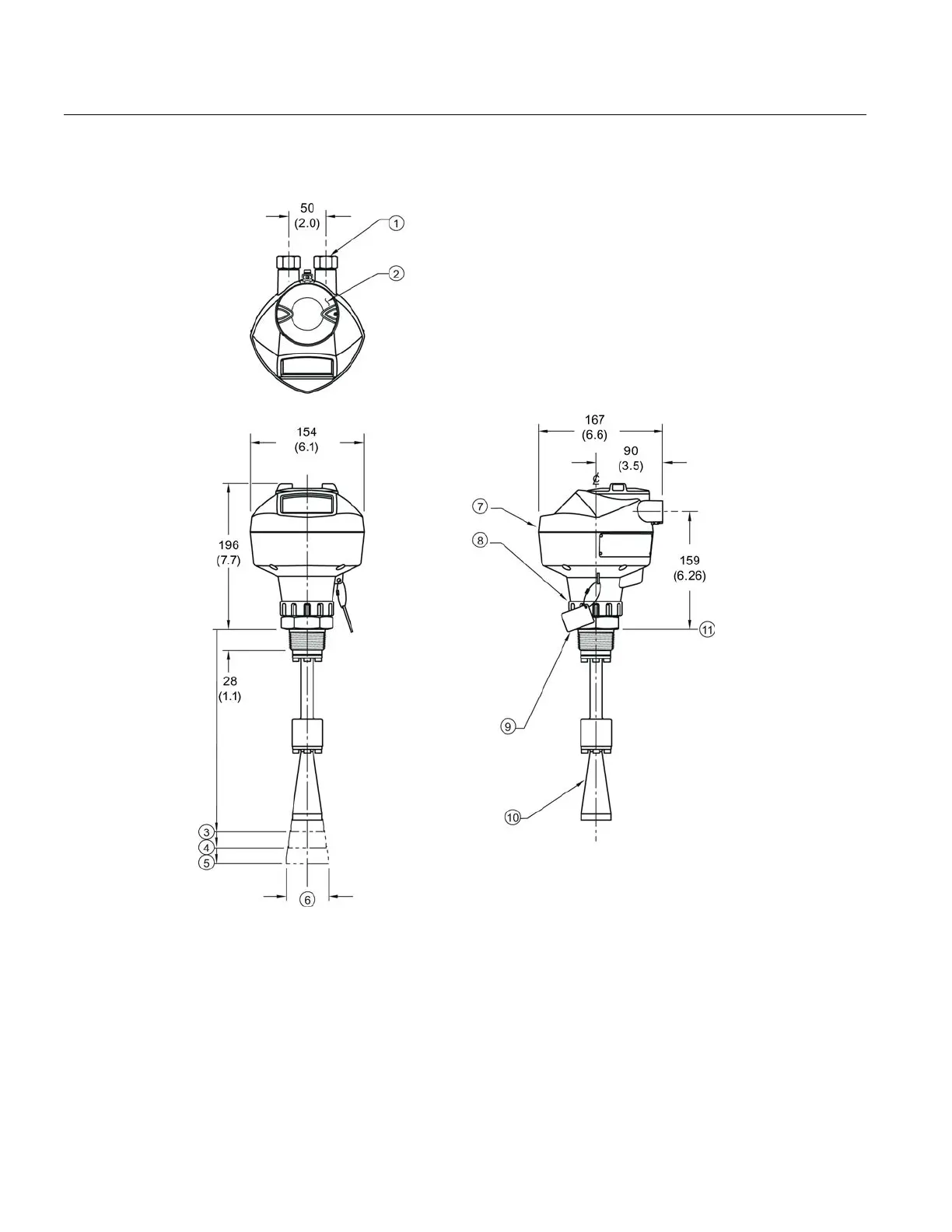

12.2 Threaded horn antenna with extension

SITRANS LR250 (PROFIBUS PA)

190 Operating Instructions, 08/2014, A5E32221386-AC

12.2

Threaded horn antenna with extension

①

½" NPT cable entry, or M20 cable gland

⑦

enclosure/electronics

②

threaded cover

⑧

retaining collar

③

2" horn

⑨

process connection tag

④

3" horn

⑩

horn

⑤

4" horn

⑪

sensor reference point

⑥

horn O.D.

Dimensions in mm (inch)
