Siemens Sitrans LR250 User Manual

Dimension drawings

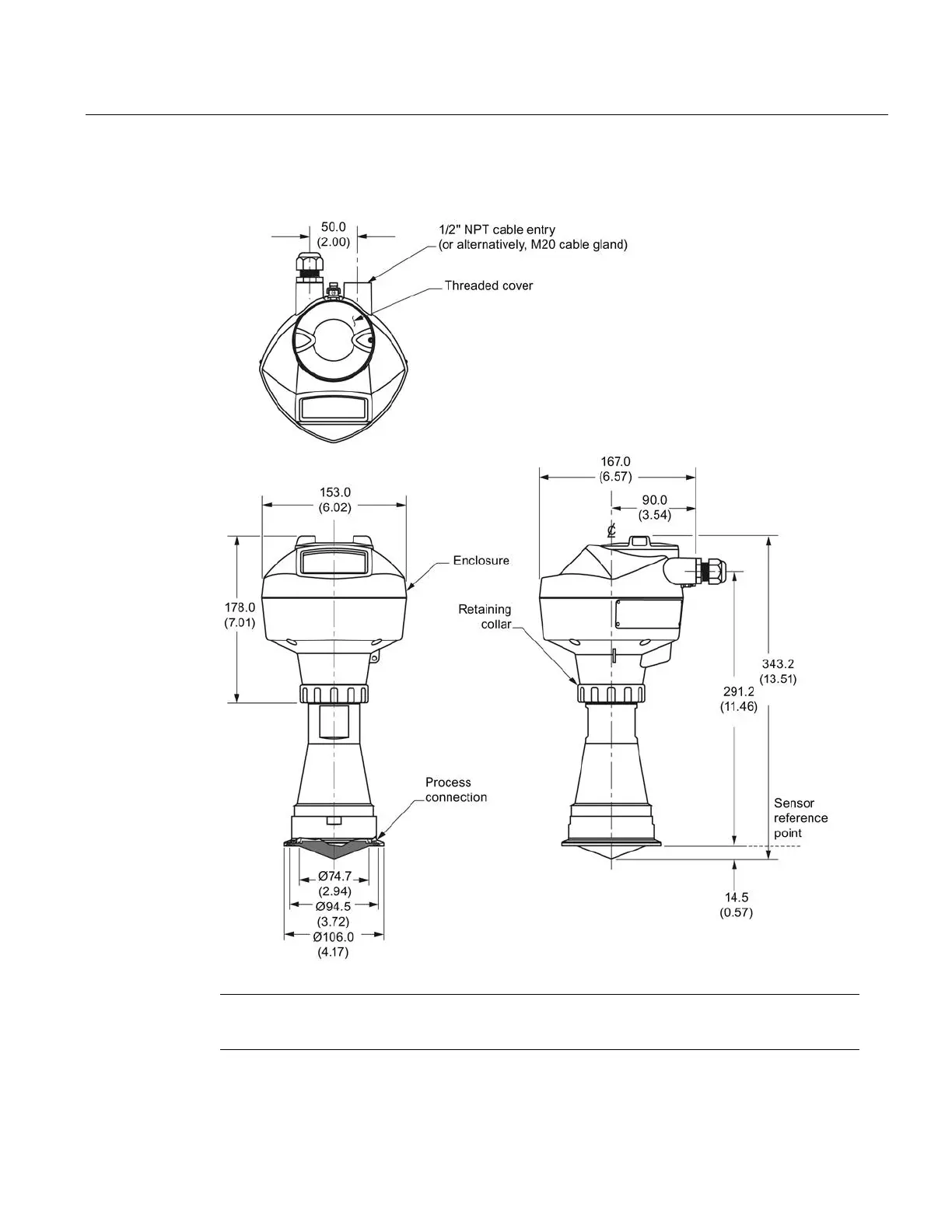

12.20 Hygienic encapsulated antenna (DN80 aseptic clamp to DIN 11864-3)
SITRANS LR250 (PROFIBUS PA)
Operating Instructions, 08/2014, A5E32221386-AC
213
12.20
Hygienic encapsulated antenna (DN80 aseptic clamp to DIN 11864-3)
Dimensions in mm (inch)
Note
Cut out of process connection is
shown for illustration purposes only.
