Dimension drawings

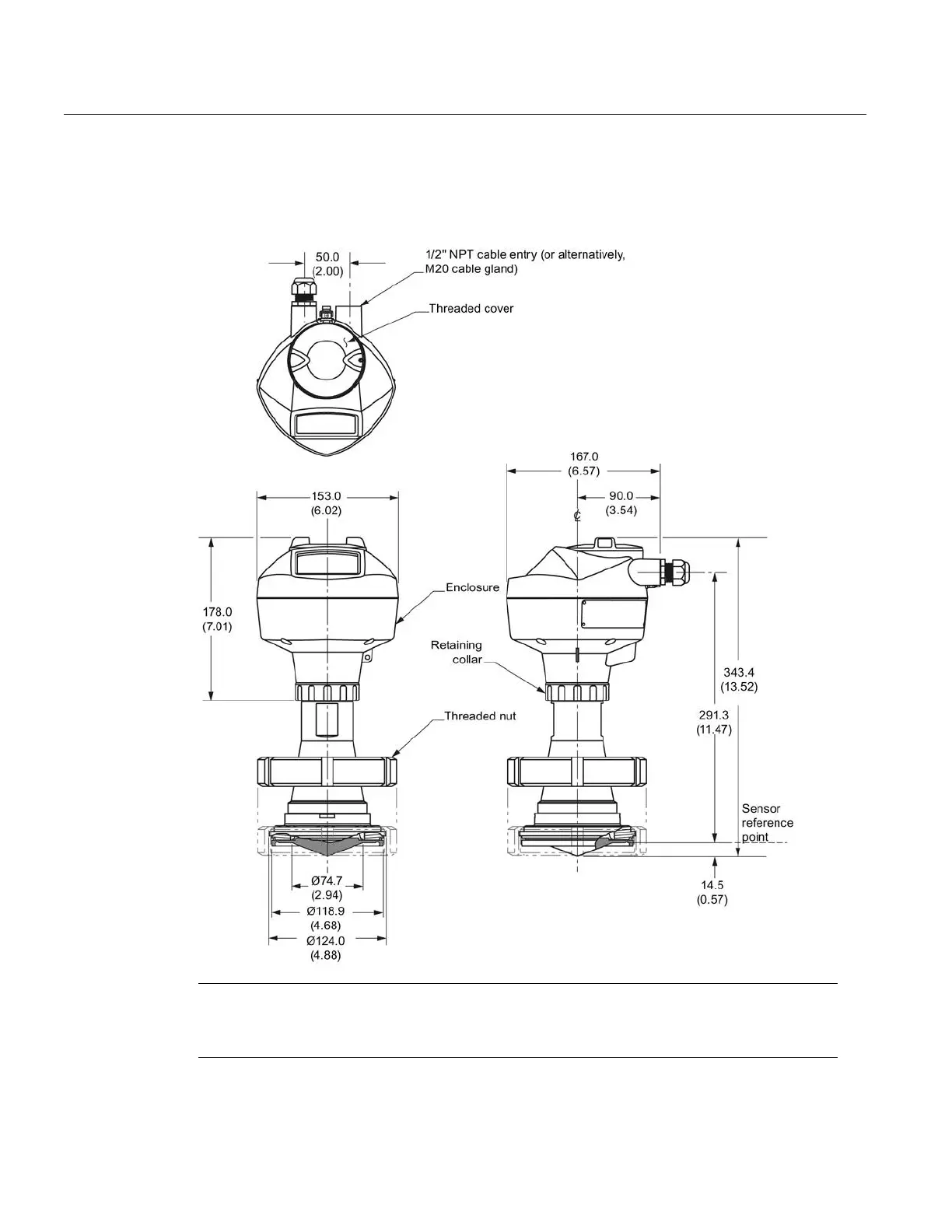

12.15 Hygienic encapsulated antenna (DN100 aseptic slotted nut to DIN 11864- 1)
SITRANS LR250 (PROFIBUS PA)
208 Operating Instructions, 08/2014, A5E32221386-AC
12.15
Hygienic encapsulated antenna (DN100 aseptic slotted nut to DIN
11864- 1)
Dimensions in mm (inch)
Note
Cut out of process connection an
d placement of threaded nut are shown for illustration
purposes only.
