Dimension drawings

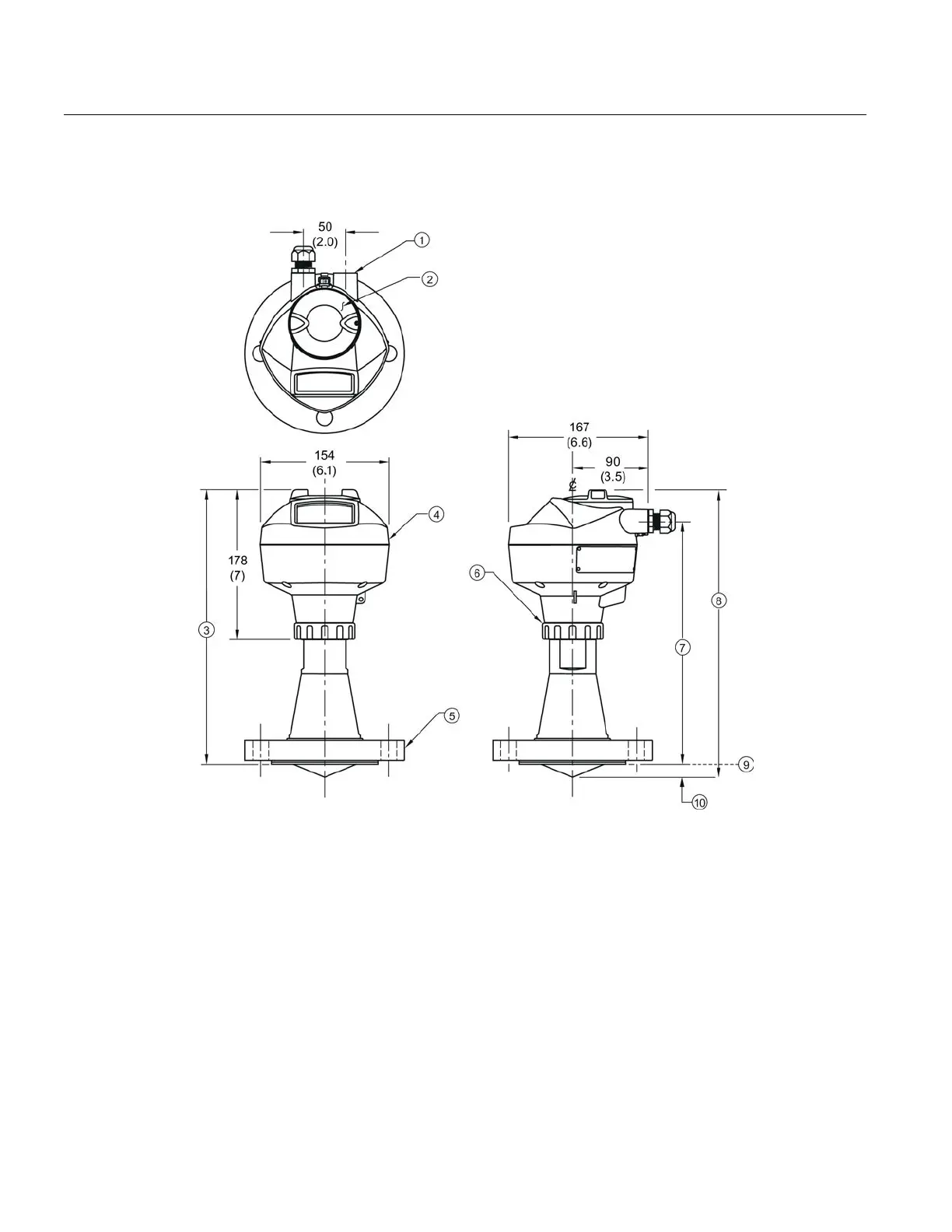

12.6 Flanged encapsulated antenna (3"/DN80/80A sizes and larger)
SITRANS LR250 (PROFIBUS PA)
198 Operating Instructions, 08/2014, A5E32221386-AC
12.6
Flanged encapsulated antenna (3"/DN80/80A sizes and larger)
①
½" NPT cable entry, or M20 cable gland
⑥
retaining collar
②
threaded cover
⑦
see table below
③
see table below
⑧
see table below
④
enclosure
⑨
sensor reference point
⑤
flange
⑩
see table below
Dimensions in mm (inch)
